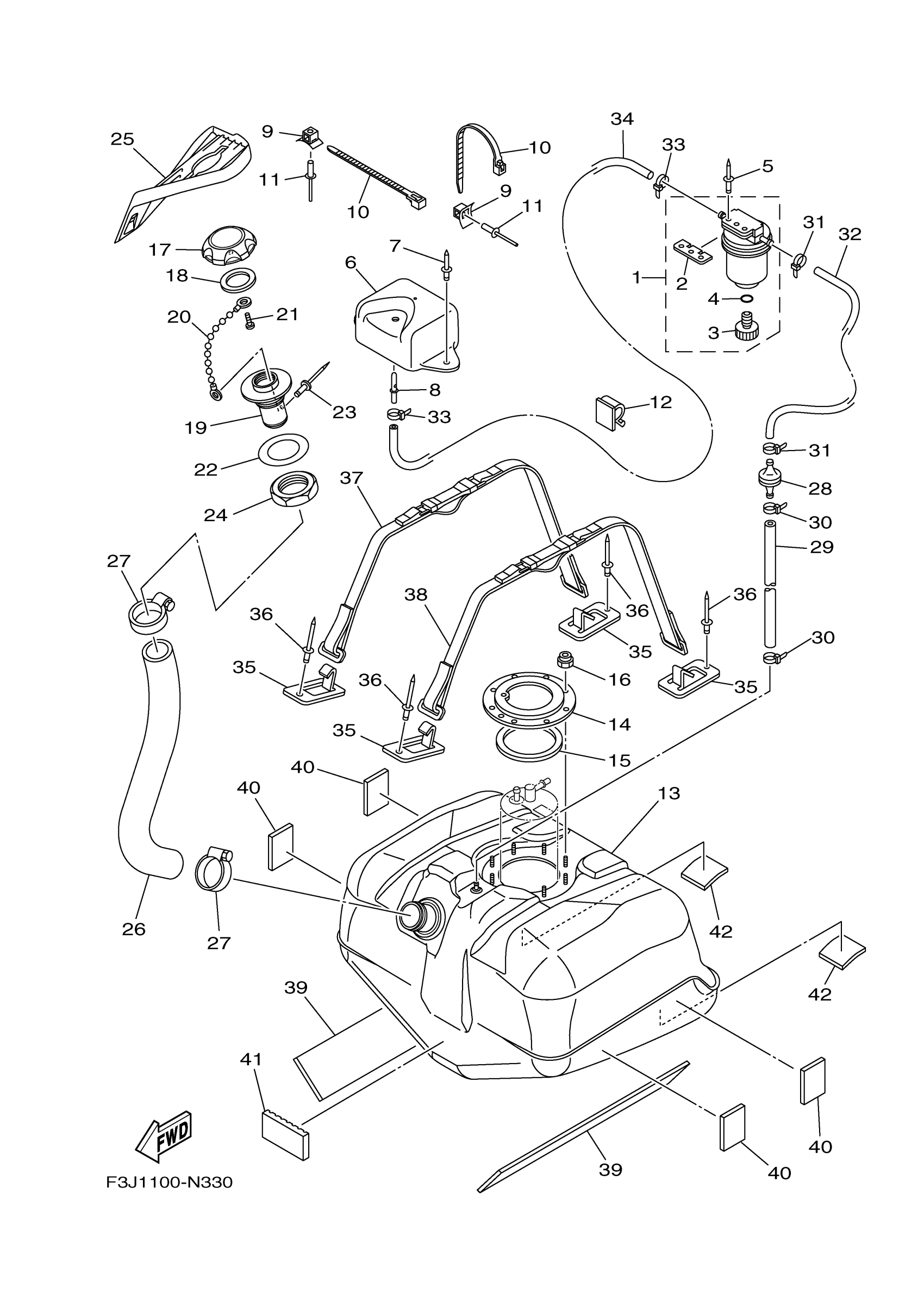

Yamaha FC1800AT (FX CRUISER SVHO) F3JS 2018 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

RIVET, BLIND

90267-489U2-00

$1.43

6

SOCKET, VENTILATION

F1W-U2159-00-00

$9.08

7

RIVET, BLIND

90267-489U6-00

$1.37

8

PIPE, VENTILATION

F1G-62149-00-00

$11.35

9

BASE, CLAMP

F1W-U828M-00-00

$1.23

10

CLAMP

90464-32801-00

$1.23

11

RIVET, BLIND

90267-48806-00

$2.00

12

CLAMP

90464-17800-00

$3.33

13

TANK, FUEL

F2S-U7711-02-00

$274.23

14

RING

F1B-U7773-00-00

$20.81

15

PACKING, SEAL

F1B-67747-00-00

$16.66

16

NUT, NYLON

9572R-06300-00

$2.80

17

CAP, FUEL FILLER

F2N-U7831-10-00

$14.94

18

PACKING

GP7-U7832-01-00

$5.35

19

SOCKET

GP7-U7833-11-00

$10.75

20

CHAIN BALL

GP7-U7835-00-00

$4.51

21

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

22

PACKING FUEL FILLER

GP7-U7834-10-00

$5.53

23

RIVET, BLIND

90267-329UR-00

$1.15

24

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

25

PROTECTOR

F3J-U895D-00-00

$5.30

26

HOSE

F2S-U7844-00-00

$133.56

27

BAND, HOSE 55

90601-155U4-00

$5.87

28

CHECK VALVE

EU0-67767-31-00

$20.93

29

HOSE, AIR VENT 3

F2H-U785H-00-00

$21.20

30

CLAMP

90465-10098-00

$1.68

31

CLAMP

90465-10098-00

$1.68

32

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

33

CLAMP

90465-10098-00

$1.68

34

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

35

HOOK A

F1K-U5772-04-00

$6.29

36

RIVET (EU0)

90267-48938-00

$5.00

37

BELT, TANK 1

F2S-67743-01-00

$53.70

38

BELT, TANK 1

F2S-67743-01-00

$53.70

39

MAT 1

F2S-U759B-00-00

$3.86

40

MAT 2

F1W-U759C-01-00

$2.50

41

MAT 2

F1K-U759C-00-00

$1.72

42

MAT 2

F1K-U759C-00-00

$1.72
