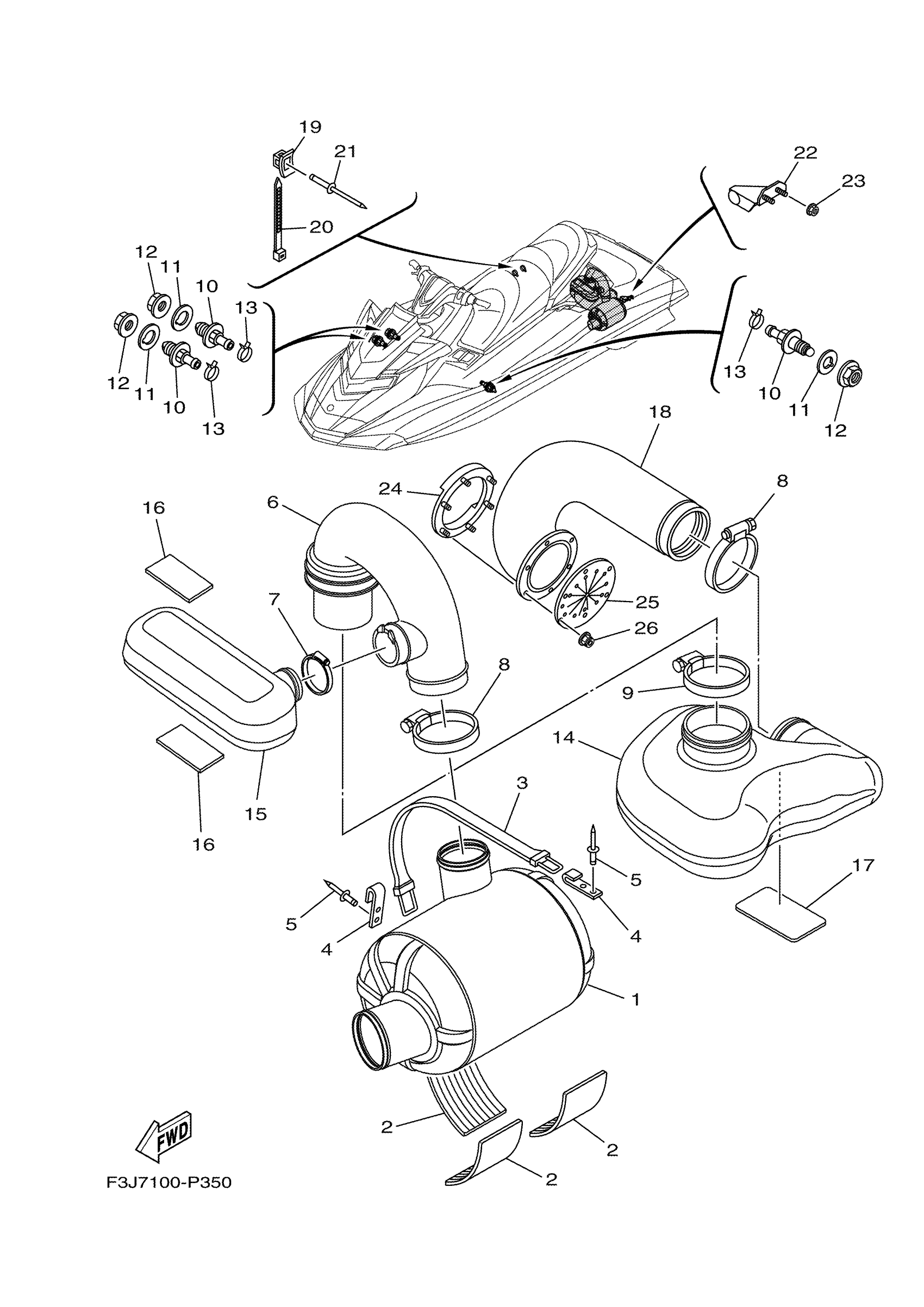

Yamaha FC1800AT (FX CRUISER SVHO) F3JS 2018 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F4P-U7550-00-00

$322.71

2

PAD, BATTERY

F1S-U8221-00-00

$2.75

3

BAND, FUEL TANK

EW2-67821-00-00

$38.49

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

HOSE, EXHAUST

F2S-U7555-01-00

$72.71

7

BAND, HOSE 70

90601-170UG-00

$5.67

8

HOSE CLAMP ASSY

90450-99801-00

$3.79

9

HOSE CLAMP ASSY

90450-99804-00

Unavailable

10

PILOT, WATER

F2C-U753B-01-00

$2.44

11

GASKET

F2C-U7564-02-00

$4.77

12

NUT

F2C-U2733-00-00

$1.87

13

CLIP

90467-17802-00

$2.87

14

TANK, WATER

F2N-U4261-00-00

$85.21

15

RESONATOR 1

F2S-U753C-00-00

$120.03

16

MAT 2

F1K-U759C-00-00

$1.72

17

PAD, BATTERY

F1S-U8221-00-00

$2.75

18

HOSE,EXHAUST 3

F2N-U758D-00-00

$190.89

19

BASE, CLAMP

F1W-U828M-00-00

$1.23

20

CLAMP

90464-32801-00

$1.23

21

RIVET, BLIND

90267-489U6-00

$1.37

22

BRKT., WATER LOCK

F2C-U755G-00-00

$9.08

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

PLATE

F1S-U757B-01-00

$22.97

25

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

26

NUT, LOCK

F2N-U142L-00-00

$1.00
