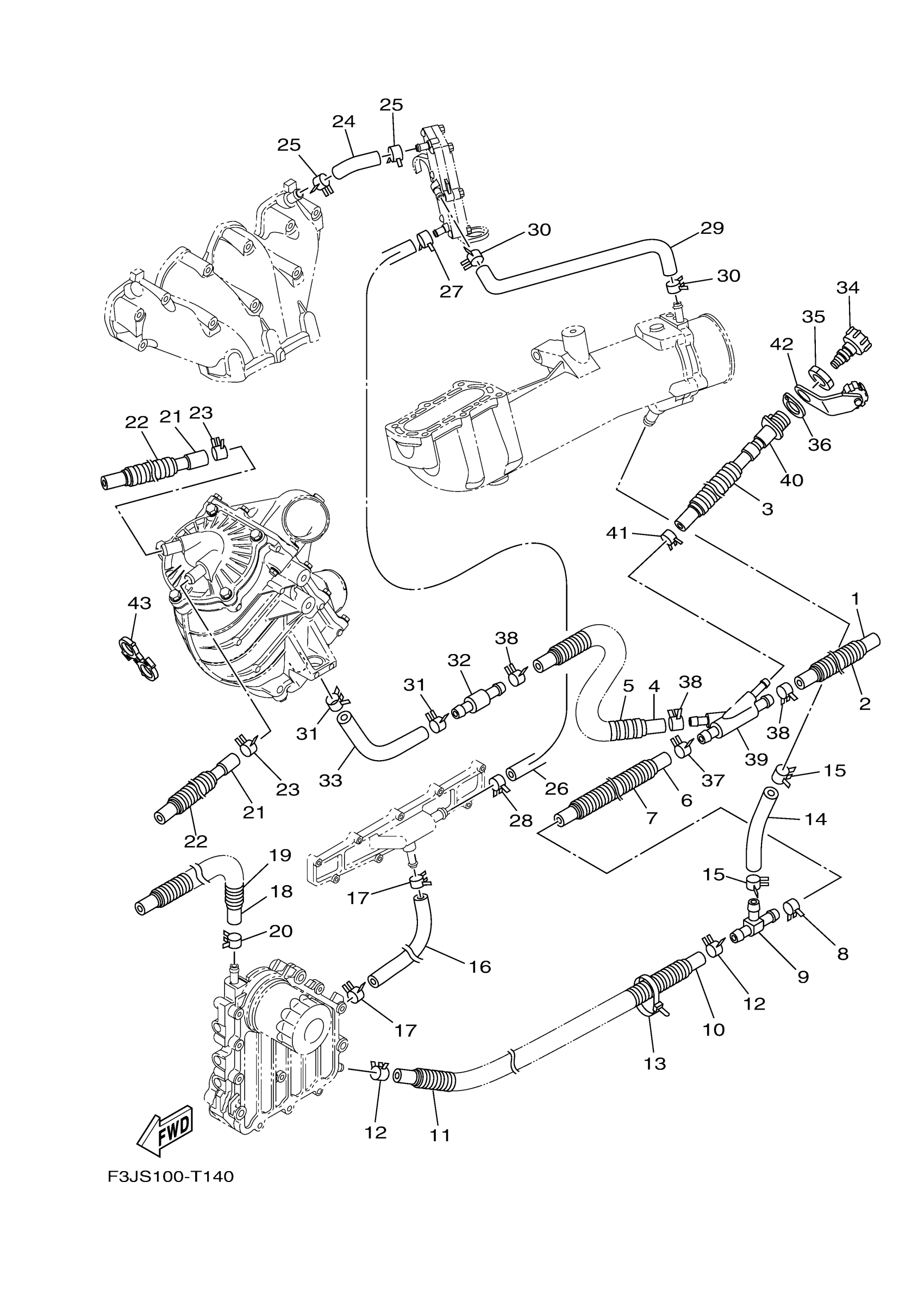

Yamaha FC1800AT (FX CRUISER SVHO) F3JS 2018 EXHAUST 2 Diagram
#
1
HOSE (L250)
90445-21806-00
Unavailable
2
TUBE
F2T-U773D-20-00
Unavailable
3
TUBE (L485)
90447-19801-00
Unavailable
4
HOSE (L970)
90445-21807-00
Unavailable
5
TUBE (L850)
90447-22802-00
Unavailable
6
HOSE 2
6S5-1243E-01-00
Unavailable
7
TUBE
F2T-U773D-00-00
Unavailable
8
CLIP
90467-200A3-00
Unavailable
9
JOINT, HOSE 3
6BH-12584-00-00
Unavailable
10
HOSE (L400)
90445-18012-00
Unavailable
11
TUBE (L260)
90447-19005-00
Unavailable
12
CLIP
90467-160A0-00
Unavailable
13
CLAMP(3XW)
90464-35132-00
$9.49
14
HOSE 6
6S5-12589-01-00
Unavailable
15
CLIP
90467-200A3-00
Unavailable
16
HOSE 5
6BH-1244H-00-00
Unavailable
17
. CLIP
90467-150A1-00
Unavailable
18
HOSE 5
6CS-12588-00-00
Unavailable
19
TUBE (L760)
90447-19018-00
Unavailable
20
CLIP
90467-160A0-00
Unavailable
21
HOSE 8
6CS-12552-00-00
Unavailable
22
TUBE
F3J-U773D-00-00
Unavailable
23
CLIP
90467-170A4-00
Unavailable
24
HOSE 2
6ET-12577-00-00
Unavailable
25
CLIP
90467-160A0-00
Unavailable
26
HOSE 4
6ET-12579-00-00
Unavailable
27
CLIP
90467-160A0-00
Unavailable
28
CLIP
90467-170A5-00
Unavailable
29
HOSE 1
6ET-12576-00-00
Unavailable
30
CLIP
90467-160A0-00
Unavailable
31
CLIP
90467-200A3-00
Unavailable
32
JOINT, HOSE 4
6S5-12594-00-00
Unavailable
33
HOSE 1
6S5-12576-01-00
Unavailable
34
CONDUCTION ASSY (US)
67X-E2590-00-00
Unavailable
35
NUT
EU0-61652-00-00
Unavailable
36
PACKING
F2S-U7525-01-00
Unavailable
37
CLIP
90467-200A3-00
Unavailable
38
CLIP
90467-200A3-00
Unavailable
39
JOINT, HOSE 1
6ET-12581-10-00
Unavailable
40
JOINT ASSY
6CS-12580-00-00
Unavailable
41
CLIP
90467-150A5-00
Unavailable
42
CAP,1
6EY-84385-00-00
Unavailable
43
CLAMP
90464-24003-00
Unavailable
