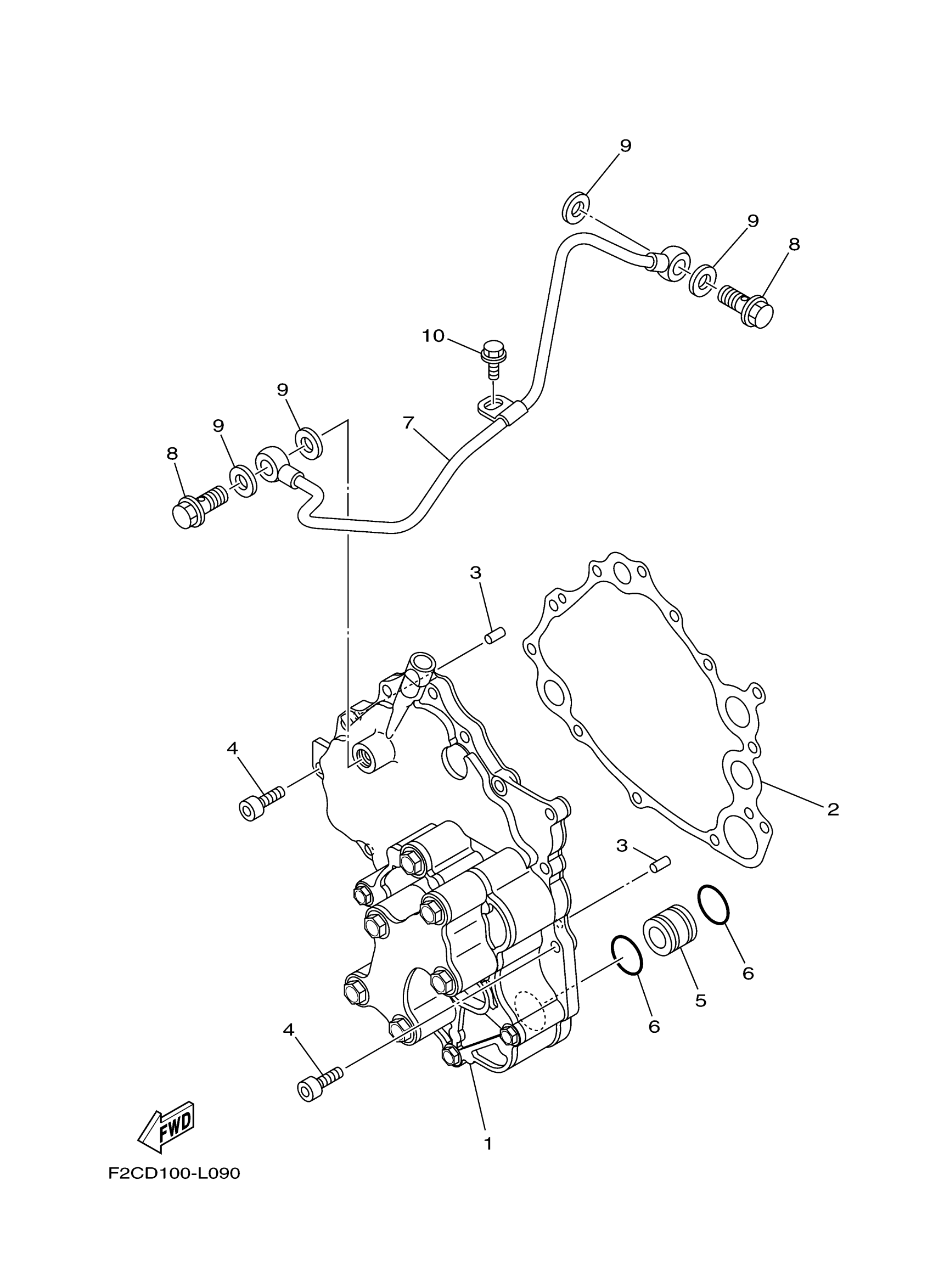

Yamaha FC1800AR (FX CRUISER SVHO) F3JD 2016 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

6S5-13300-22-00

$978.77

2

. GASKET

6S5-13563-00-00

$10.74

3

PIN, DOWEL (614)

93606-12019-00

$3.05

4

BOLT,SOCKET HEAD

91314-06020-00

$1.91

5

CONNECTOR

6S5-13446-10-00

$21.95

6

O-RING (26H)

93210-21631-00

$5.99

7

PIPE, OIL 1

6S5-13416-00-00

$122.99

8

BOLT, UNION

90401-10040-00

$7.40

9

. GASKET

90430-10007-00

$3.60

10

BOLT, FLANGE(2UJ)

95024-06012-00

$3.43
