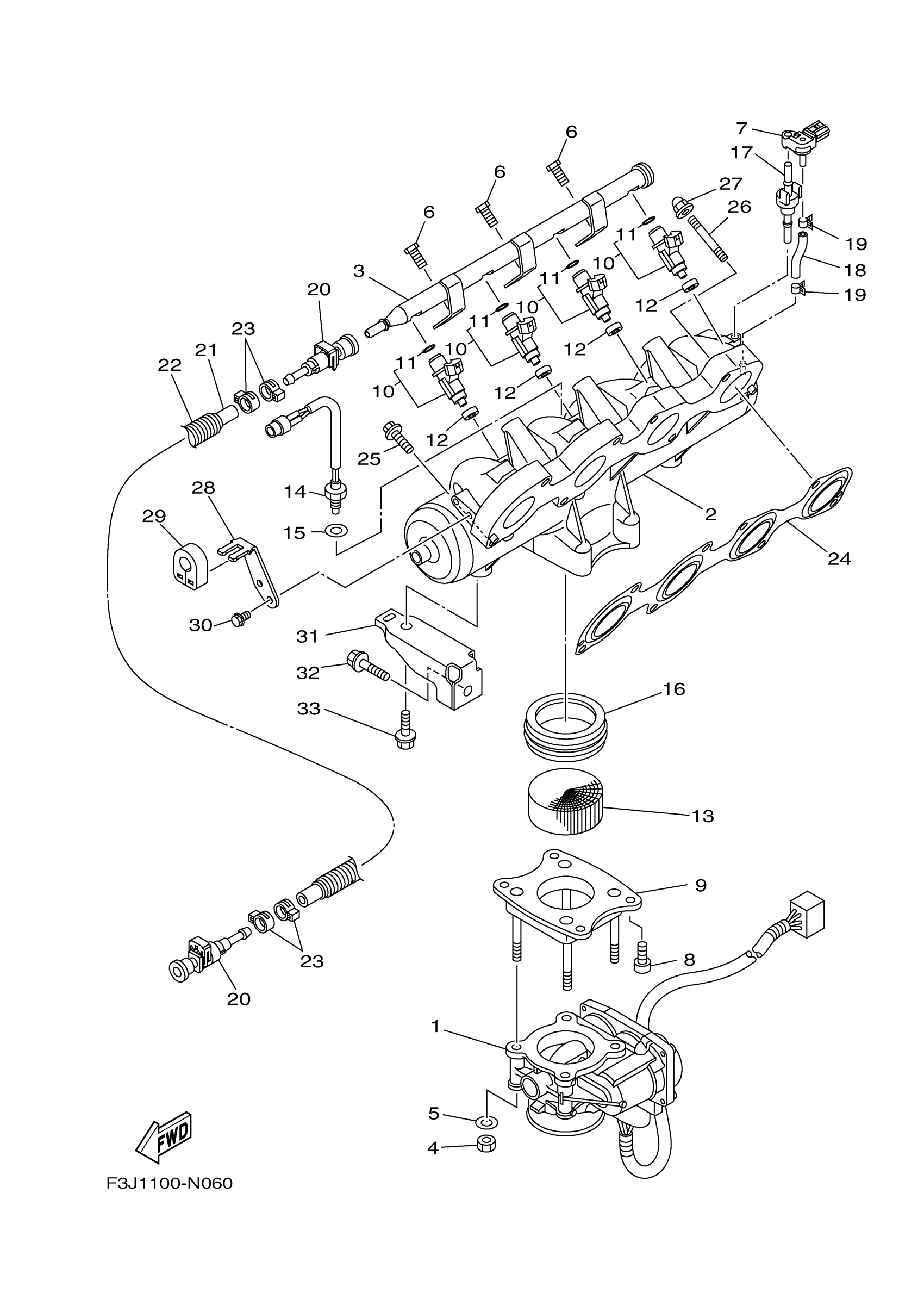

Yamaha FC1800AR (FX CRUISER SVHO) F3JD 2016 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6S5-13750-12-00

Unavailable

2

MANIFOLD, INTAKE 1

6S5-13641-A2-00

$919.10

3

DELIVERY PIPE

6CS-12880-00-00

$160.28

4

NUT

6P2-13588-00-00

$19.71

5

WASHER

6P2-13578-00-00

$6.57

6

BOLT

6CS-14446-00-00

$8.81

7

. SENSOR, PRESSURE

6BH-82380-00-00

$215.07

8

BOLT

6S5-14496-00-00

$12.49

9

THROTTLE DAMPER ASSY

6S5-14360-12-00

Unavailable

10

INJECTOR

6ET-13761-00-00

$305.87

11

. O-RING

68V-1416A-00-00

$11.01

12

. GASKET, MANIFOLD

8FP-13556-10-00

$5.69

13

RIBBON

6D3-1444B-01-00

Unavailable

14

SENSOR, AIR TEMPERATURE

6S5-85886-00-00

$119.69

15

. WASHER

6S5-14285-00-00

$2.13

16

HOLDER

6S5-14457-00-00

$76.46

17

GROMMET

6BH-14445-00-00

$20.57

18

HOSE

5PS-14987-00-00

Unavailable

19

CLIP

6S5-14159-01-00

Unavailable

20

FUEL PIPE JOINT

6S5-24300-01-00

$23.17

21

HOSE

6AN-14294-20-00

Unavailable

22

TUBE (L495)

90447-19017-00

$7.06

23

HOSE CLAMP ASSY

90450-17M17-00

$7.59

24

. GASKET, MANIFOLD 1

6BH-13645-00-00

$15.95

25

BOLT, WITH WASHER

97513-08535-00

$1.70

26

BOLT, STUD

90116-08032-00

$3.41

27

NUT, CROWN(4BR)

90176-08080-00

Unavailable

28

PLATE, STAY

6CS-14572-00-00

$7.06

29

GROMMET

6CS-14445-01-00

$5.29

30

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

31

STAY

6CS-14413-00-00

$54.40

32

BOLT, WITH WASHER

90119-08099-00

$4.85

33

BOLT, WITH WASHER

90119-08074-00

$3.88
