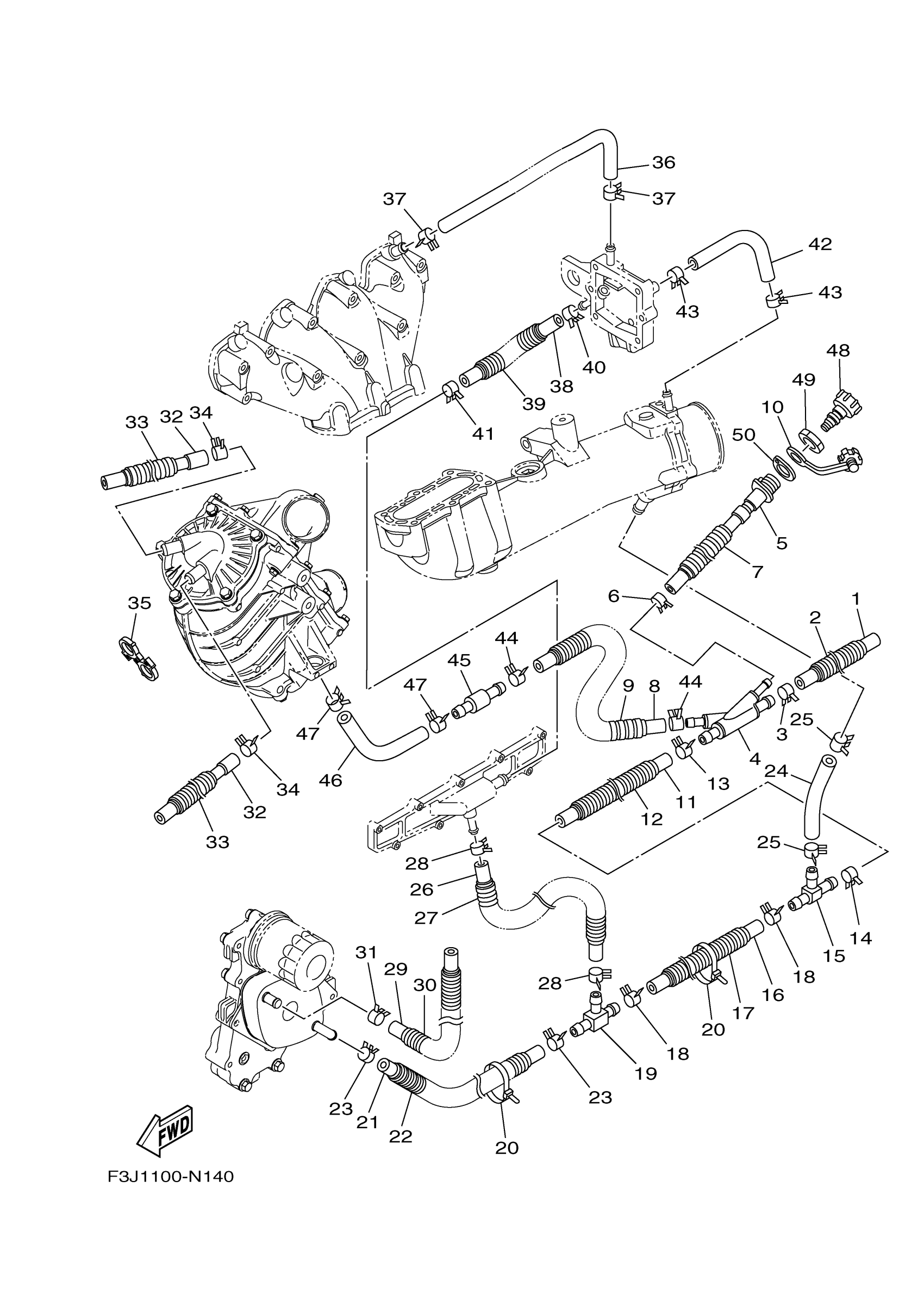

Yamaha FC1800AR (FX CRUISER SVHO) F3JD 2016 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.67

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$6.07

4

JOINT, HOSE 1

6ET-12581-10-00

$31.33

5

JOINT ASSY

6CS-12580-00-00

$111.93

6

CLIP

90467-150A5-00

$2.58

7

TUBE (L485)

90447-19801-00

$3.51

8

HOSE (L970)

90445-21807-00

$14.16

9

TUBE (L850)

90447-22802-00

$4.03

10

CAP,1

682-84385-01-00

$7.21

11

HOSE 2

6S5-1243E-01-00

$21.53

12

TUBE

F2T-U773D-00-00

$1.34

13

CLIP

90467-200A3-00

$6.07

14

CLIP

90467-200A3-00

$6.07

15

JOINT, HOSE 3

6BH-12584-00-00

$4.55

16

HOSE (L220)

90445-18017-00

$13.42

17

HOSE, WITH SPRING

90447-19004-00

Unavailable

18

CLIP

90467-160A0-00

$3.03

19

JOINT, HOSE 2

6ET-12582-00-00

$4.93

20

CLAMP(3XW)

90464-35132-00

Unavailable

21

HOSE (L220)

90445-18017-00

$13.42

22

HOSE, WITH SPRING

90447-19004-00

Unavailable

23

CLIP

90467-160A0-00

$3.03

24

HOSE 6

6S5-12589-01-00

Unavailable

25

CLIP

90467-200A3-00

$6.07

26

HOSE 5

6S5-1244H-00-00

$20.88

27

TUBE (L150)

90447-19011-00

$2.69

28

. CLIP

90467-150A1-00

$3.41

29

HOSE 5

6CS-12588-00-00

$27.60

30

TUBE (L760)

90447-19018-00

$8.94

31

CLIP

90467-160A0-00

$3.03

32

HOSE 8

6CS-12552-00-00

$20.88

33

TUBE

F3J-U773D-00-00

$4.70

34

CLIP

90467-170A4-00

$2.16

35

CLAMP

90464-24003-00

$2.69

36

HOSE 2

6BH-12577-00-00

$20.88

37

CLIP

90467-160A0-00

$3.03

38

HOSE 4

6S5-12579-00-00

$19.39

39

TUBE (L150)

90447-19011-00

$2.69

40

CLIP

90467-160A0-00

$3.03

41

CLIP

90467-170A5-00

$3.79

42

HOSE (L220)

90445-16013-00

$11.18

43

CLIP

90467-160A0-00

$3.03

44

CLIP

90467-200A3-00

$6.07

45

JOINT, HOSE 4

6S5-12594-00-00

$4.48

46

HOSE 1

6S5-12576-01-00

$22.37

47

CLIP

90467-200A3-00

$6.07

48

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

49

NUT

EU0-61652-00-00

$11.77

50

PACKING

F2S-U7525-01-00

Unavailable
