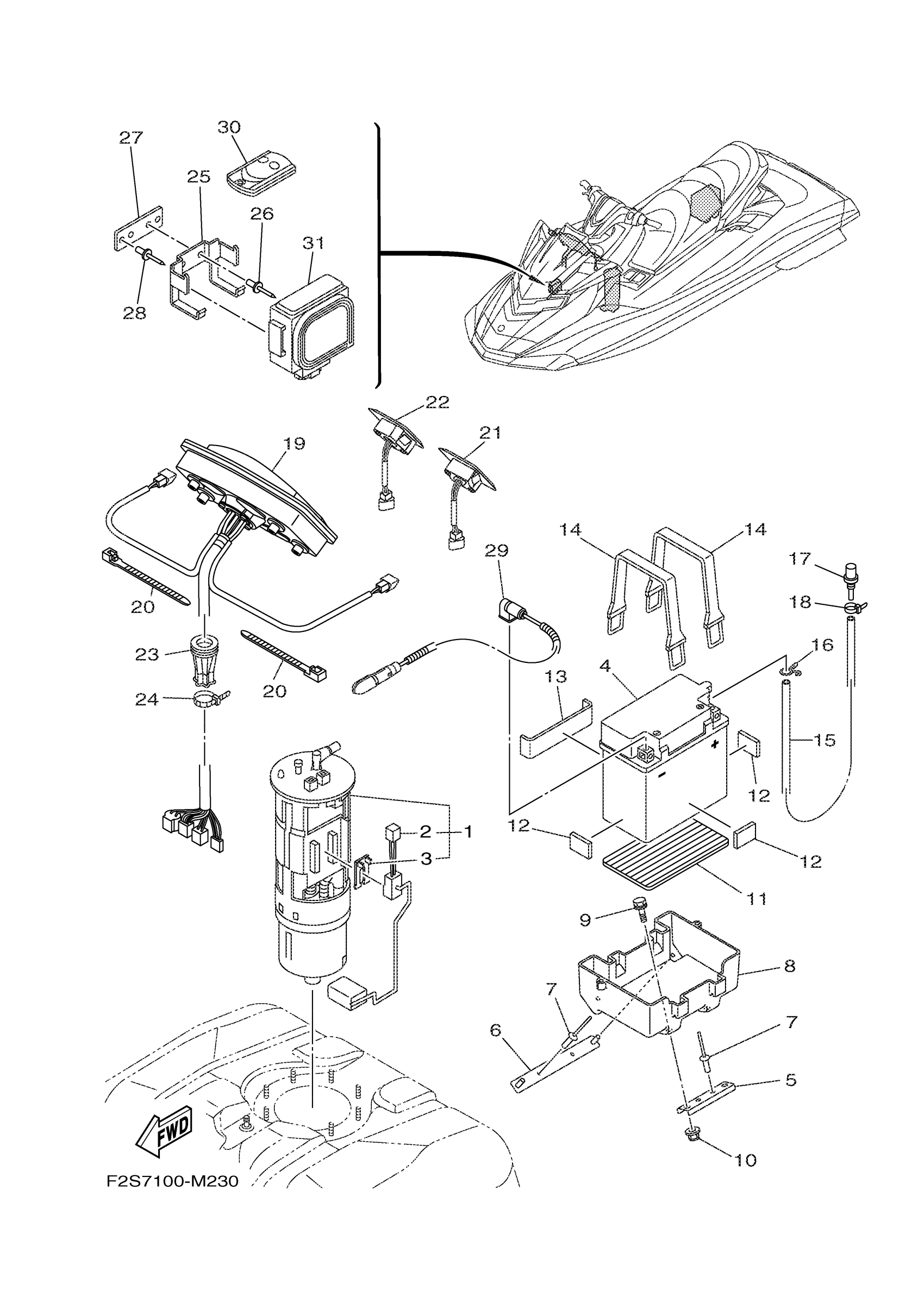

Yamaha FC1800AR (FX CRUISER SVHO) F3JD 2016 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

5

PLATE, BASE 2

F2S-U8592-00-00

$5.83

6

PLATE, BASE 3

F2S-U8593-00-00

$5.45

7

RIVET (EU0)

90267-48938-00

$5.00

8

CASE, BATTERY

F2S-U8211-00-00

$9.62

9

BOLT, WITH WASHER

90119-06820-00

$3.52

10

NUT, LOCK

F2N-U142L-00-00

$1.00

11

PAD, BATTERY

F1S-U8221-00-00

$2.75

12

PAD, BATTERY

EU0-U8221-31-00

$1.65

13

PAD, BATTERY

F1K-U8221-00-00

$2.66

14

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

15

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

16

CLIP

90467-089U1-00

$1.44

17

NIPPLE

GJ3-6215F-00-00

$9.08

18

CLAMP

90465-10098-00

$1.68

19

METER ASSY

F3J-6820A-21-00

$827.26

20

CLAMP

90464-32801-00

$1.23

21

SWITCH ASSY.

F2S-68090-00-00

$165.14

22

SWITCH ASSY.

F2S-68090-10-00

$165.14

23

GROMMET

F3J-U822E-01-00

$5.59

24

CLAMP

90464-32801-00

$1.23

25

BRACKET

F1W-U826C-00-00

$18.17

26

RIVET (EU0)

90267-48938-00

$5.00

27

PLATE

F1W-U8376-00-00

$2.80

28

RIVET (EU0)

90267-48938-00

$5.00

29

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14

30

XMTR. COMP.

6B6-86261-00-00

$228.48

31

RECEIVER COMPLETE

6B6-86265-00-00

$427.26
