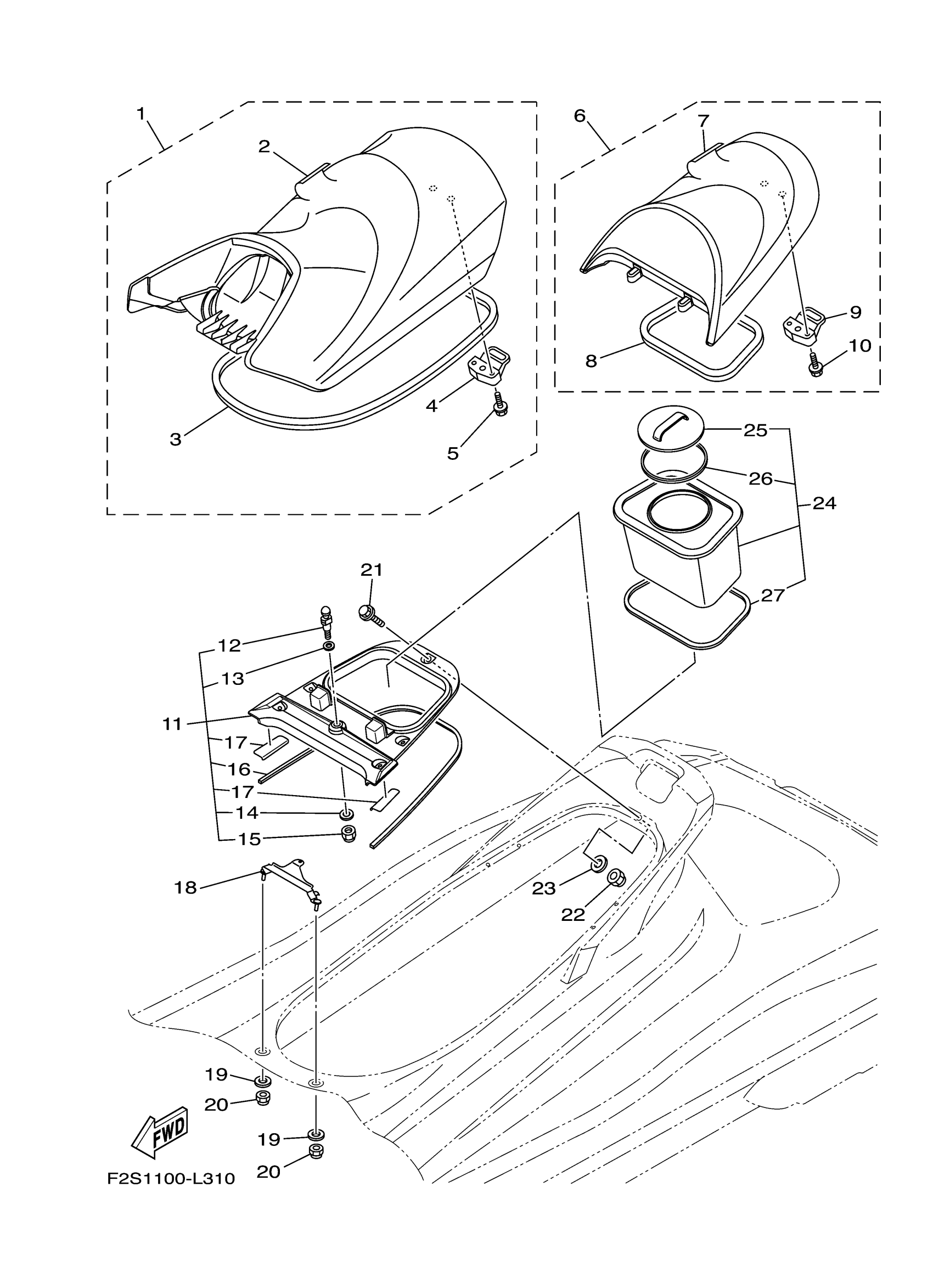

Yamaha FC1800AP (FX CRUISER SVHO) F3J7 2015 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2S-U371A-31-00

Unavailable

2

. COVER, SEAT 1

F2S-U371B-30-00

Unavailable

3

. PACKING

F1W-U2664-01-00

$33.32

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F2S-U372A-30-00

$362.11

7

. COVER, SEAT

F2S-U372B-30-00

$319.68

8

PACKING 5

F2C-U266D-01-00

$16.65

9

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

DECK BEAM ASSY

F2S-U890L-05-00

$53.02

12

PIN

GH1-U3774-00-00

$19.38

13

WASHER, PLATE

90201-109U6-00

$3.29

14

WASHER

9299R-10200-00

$1.63

15

NUT, NYLON

9572R-10300-00

$3.37

16

. PACKING 1

F2S-U375E-00-00

$4.24

17

. PACKING

F2S-U8244-00-00

$1.52

18

STAY, SEAT 1

F2C-U378C-00-00

$57.56

19

WASHER, PLATE

90201-099U3-00

$2.16

20

NUT, NYLON (6J8)

95780-08300-00

$10.55

21

BOLT, WITH WASHER

90119-08828-00

$2.30

22

NUT, NYLON (6J8)

95780-08300-00

$10.55

23

WASHER

9299R-08200-00

Unavailable

24

CASE,ASSY 1

F2C-U591A-03-00

$46.95

25

. CAP,CASE

F2C-U591C-00-00

$5.67

26

. PACKING,CASE

F2C-U591D-01-00

$1.63

27

. PACKING,6

F2C-U266E-00-00

$14.35
