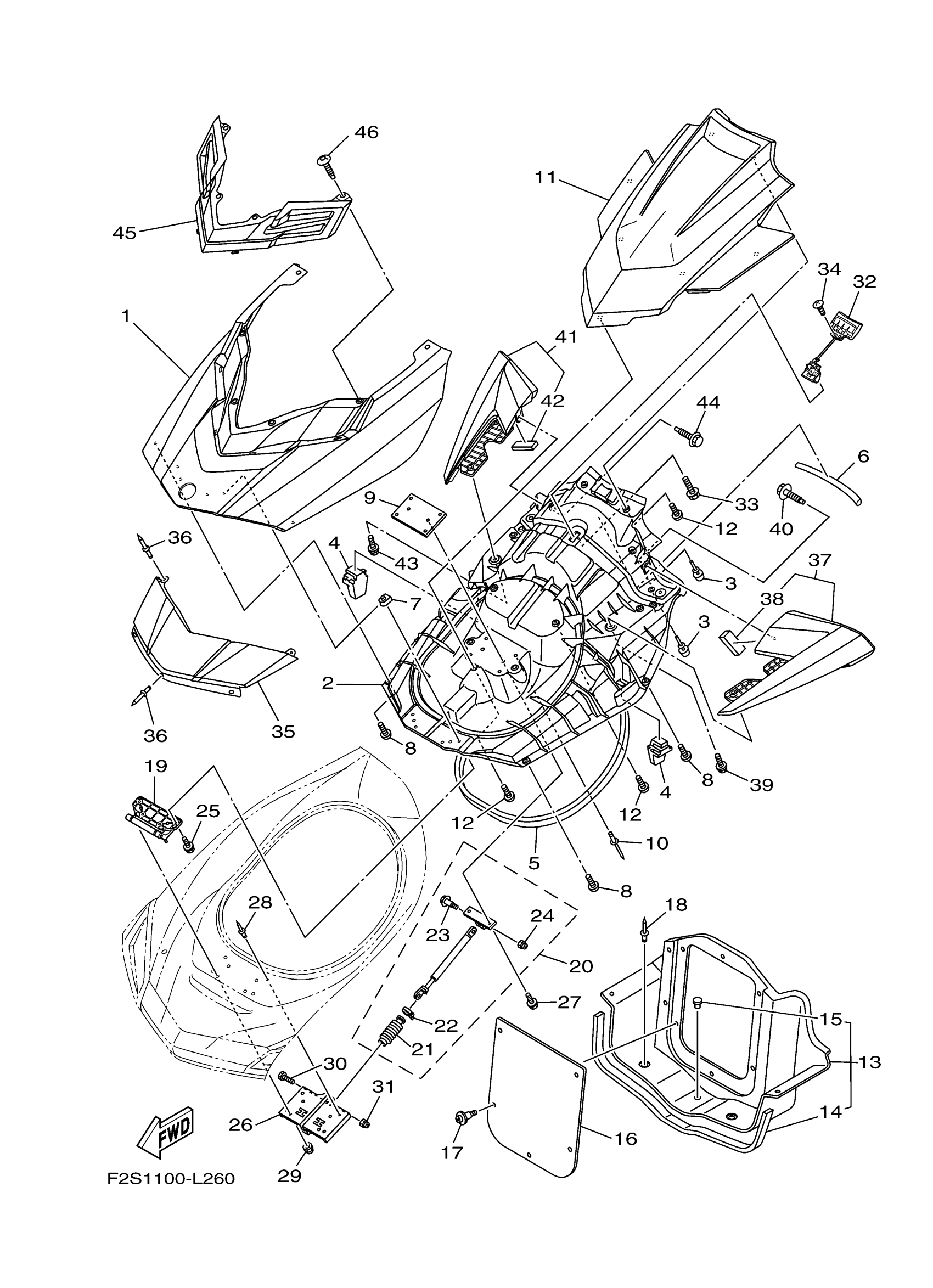

Yamaha FC1800AP (FX CRUISER SVHO) F3J7 2015 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (PURW)

F2S-U517B-01-P7

$187.86

1

LID, ENGINE ROOM (RM9)

F2S-U517B-01-P8

$230.29

2

INNER, ENGINE HATCH

F2S-U519G-02-00

$274.23

3

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

4

STOPPER, HATCH 1

F2S-U5135-00-00

$2.65

5

PACKING 1

F2S-U2663-00-00

$26.50

6

PACKING 3

F2S-U266B-00-00

$3.56

7

NUT, SPRING(GJ3)

90183-06902-00

$8.53

8

SCREW

F2S-U13C1-00-00

$2.36

9

PLATE, HATCH

F1W-U5148-00-00

$15.07

10

RIVET, BLIND

90267-48807-00

$2.07

11

VISOR (PURW)

F2S-U515N-01-P7

$234.83

11

VISOR (RM9)

F2S-U515N-01-P8

Unavailable

12

SCREW

F2S-U13C1-00-00

$2.36

13

LOCKER,BOW

F2S-U475B-00-00

Unavailable

14

PACKING 4

F2C-U266C-00-00

$7.35

15

. PLUG, BLIND

90605-502U1-00

$2.16

16

PLATE, LOKER BOW

F2S-U475F-00-00

$10.75

17

RIVET

90269-08801-00

$0.83

18

RIVET

90269-08801-00

$0.83

19

HINGE, LID

F2S-U517D-00-00

$75.74

20

DAMPER ASSY

F2S-6514S-00-00

$259.08

21

. COVER, DAMPER

F1W-6514T-00-00

$23.99

22

BAND

1UA-82591-00-00

Unavailable

23

BOLT

90109-06218-00

$10.49

24

NUT, SELF-LOCKING

95720-06300-00

$1.82

25

BOLT, WITH WASHER

90119-06896-00

$5.03

26

PLATE, HINGE LID

F2S-U518E-00-00

$48.47

27

BOLT, WITH WASHER

90119-06830-00

Unavailable

28

RIVET, BLIND

90267-48020-00

$7.27

29

NUT, NYLON

9572R-06300-00

$2.80

30

BOLT

90109-06218-00

$10.49

31

NUT, NYLON

9572R-06300-00

$2.80

32

LOCK, LID

F2S-U517C-01-00

$35.56

33

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

34

SCREW, TAPPING

9778R-50010-00

$1.36

35

COVER, FRONT (PURW)

F2S-U513M-01-P7

$77.26

35

COVER, FRONT (RM9)

F2S-U513M-01-P8

$83.32

36

RIVET, BLIND

90267-489U6-00

$1.37

37

MIRROR ASSY. 1

F2S-U590D-21-00

$154.53

37

MIRROR ASSY. 1

F2S-U590D-61-00

$154.53

38

. PACKING 3

F1K-U266B-00-00

$1.15

39

BOLT, WITH WASHER

90119-08907-00

$5.45

40

BOLT,WITH WASHER

90119-068B8-00

$28.70

41

MIRROR ASSY. 2

F2S-U590E-21-00

$150.41

41

MIRROR ASSY. 2

F2S-U590E-61-00

$154.53

42

. PACKING 3

F1K-U266B-00-00

$1.15

43

BOLT, WITH WASHER

90119-08907-00

$5.45

44

BOLT,WITH WASHER

90119-068B8-00

$28.70

45

CENTER ORNAMENT ASSY

F2S-U510D-01-00

$171.20

46

SCREW

F2S-U13C1-00-00

$2.36
