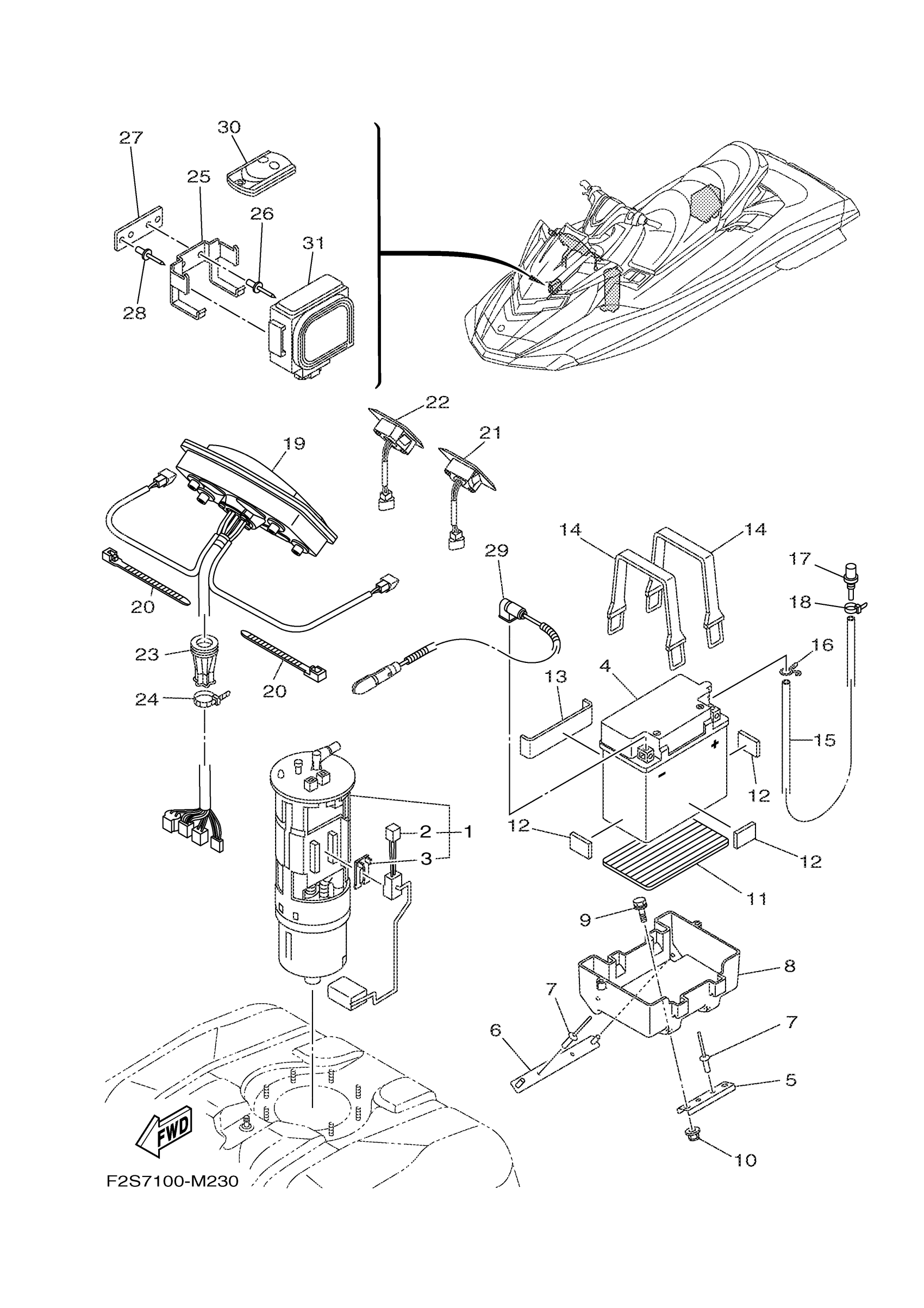

Yamaha FC1800AP (FX CRUISER SVHO) F3J7 2015 ELECTRICAL 3 Diagram
#
1
FUEL PUMP COMP.
6S5-13907-05-00
Unavailable
2
FUEL SENDER ASSY SET
99999-04571-00
Unavailable
3
DAMPER, STOPPER
60E-82556-10-00
Unavailable
4
YB16CLB YUASA BATTERY
YB1-6CLB0-00-00
Unavailable
5
PLATE, BASE 2
F2S-U8592-00-00
Unavailable
6
PLATE, BASE 3
F2S-U8593-00-00
Unavailable
7
RIVET (EU0)
90267-48938-00
Unavailable
8
CASE, BATTERY
F2S-U8211-00-00
Unavailable
9
BOLT, WITH WASHER
90119-06820-00
Unavailable
10
NUT, LOCK
F2N-U142L-00-00
Unavailable
11
PAD, BATTERY
F1S-U8221-00-00
Unavailable
12
PAD, BATTERY
EU0-U8221-31-00
$2.99
13
PAD, BATTERY
F1K-U8221-00-00
Unavailable
14
BAND,BATTERY 1
EU0-U821D-00-00
Unavailable
15
HOSE, AIR VENT
F0D-U785G-11-00
Unavailable
16
CLIP
90467-089U1-00
Unavailable
17
NIPPLE
GJ3-6215F-00-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
METER ASSY
F3J-6820A-21-00
Unavailable
20
CLAMP
90464-32801-00
Unavailable
21
SWITCH ASSY.
F2S-68090-00-00
Unavailable
22
SWITCH ASSY.
F2S-68090-10-00
Unavailable
23
GROMMET
F3J-U822E-01-00
Unavailable
24
CLAMP
90464-32801-00
Unavailable
25
BRACKET
F1W-U826C-00-00
Unavailable
26
RIVET (EU0)
90267-48938-00
Unavailable
27
PLATE
F1W-U8376-00-00
Unavailable
28
RIVET (EU0)
90267-48938-00
Unavailable
29
WIRE, MINUS LEAD
6JP-82116-00-00
Unavailable
30
XMTR. COMP.
6B6-86261-00-00
Unavailable
31
RECEIVER COMPLETE
6B6-86265-00-00
Unavailable
