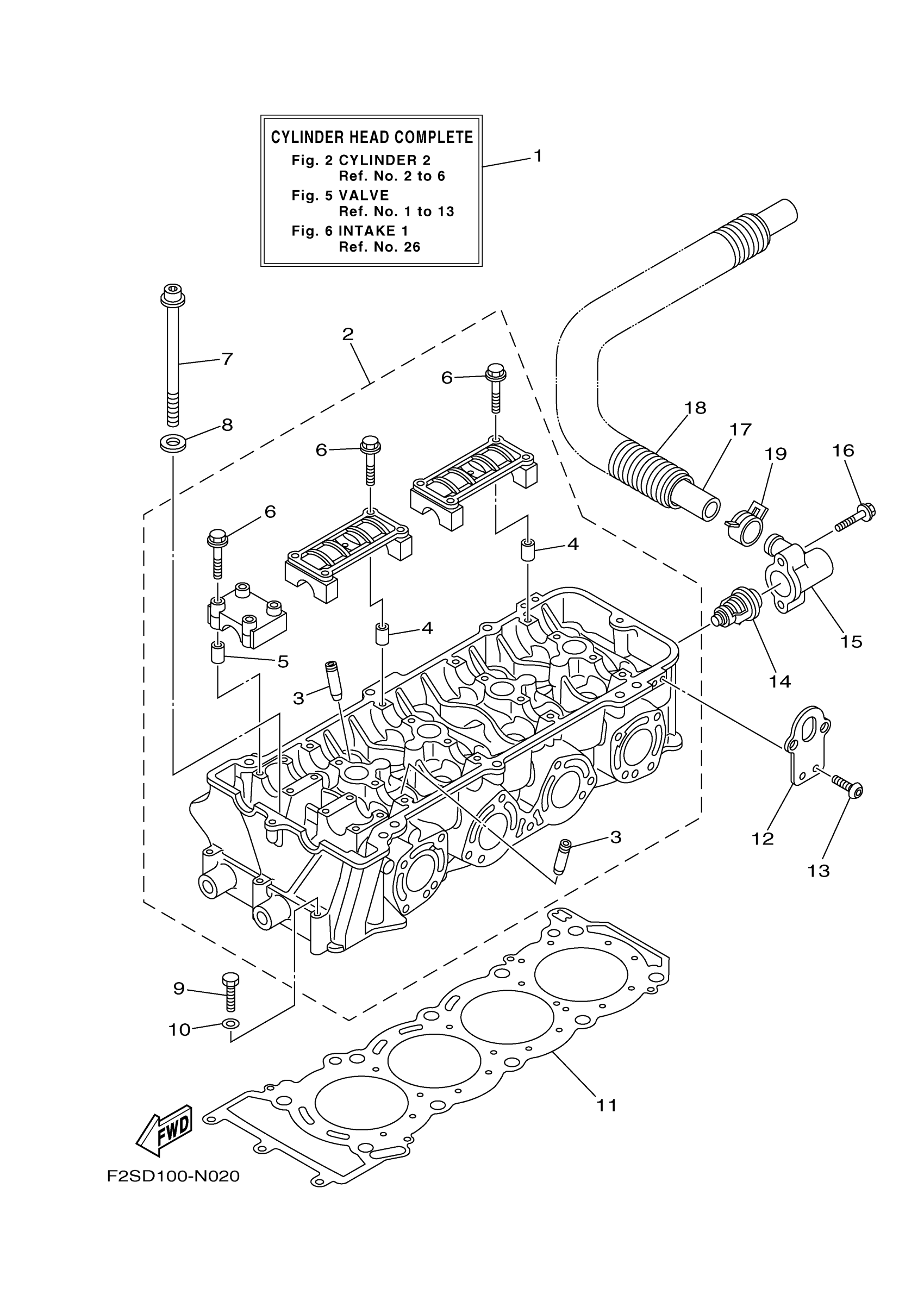

Yamaha FC1800AP (FX CRUISER SVHO) F3J7 2015 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE (6ET_02

99999-04512-00

Unavailable

2

CYLINDER HEAD ASSY

6S5-11102-20-00

$2,148.49

3

. GUIDE, VALVE 1

6S5-11133-10-00

$44.45

4

. PIN, DOWEL

91809-16002-00

$2.16

5

. PIN, DOWEL

91809-16002-00

$2.16

6

. BOLT, FLANGE

90105-07009-00

$3.03

7

BOLT

6S5-12228-01-00

$18.66

8

WASHER, PLATE

90201-12039-00

$3.03

9

BOLT(64D)

97013-06055-00

$2.87

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

$119.63

12

HANGER, ENGINE 2

6BH-1111E-00-00

$23.12

13

BOLT, WITH WASHER

90119-06078-00

$2.24

14

THERMOSTAT

6D3-12411-00-00

$95.37

15

COVER, THERMOSTAT

6BH-12413-00-00

$37.32

16

BOLT, FLANGE

90105-06035-00

$2.16

17

HOSE 3

6S5-12578-00-00

$61.18

18

TUBE (L850)

90447-28008-00

$18.49

19

CLIP

90467-240A0-00

$6.72
