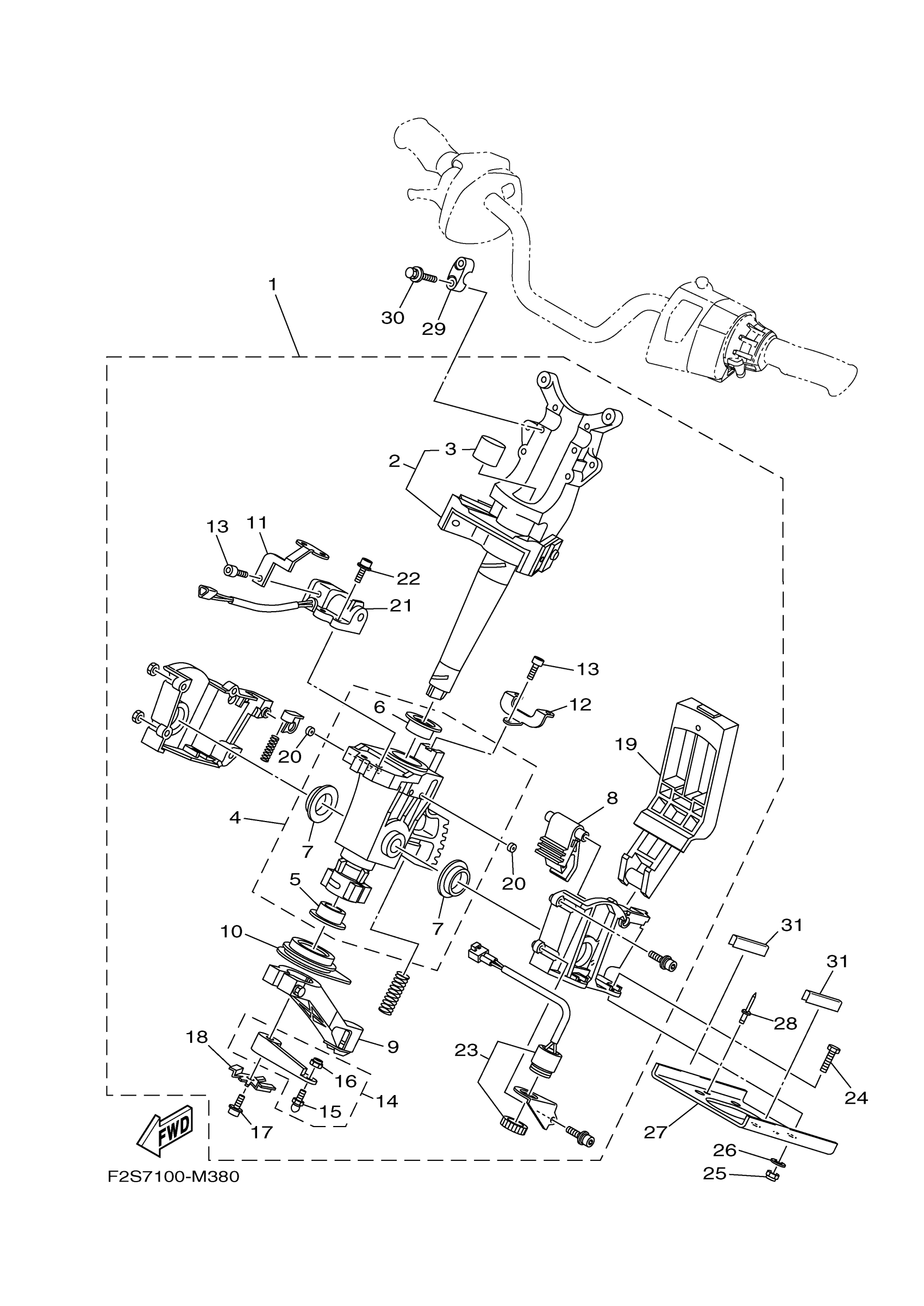

Yamaha FC1800AN (FX CRUISER SVHO) F3J1 2014 STEERING 2 Diagram
#
1
STEERING MASTER ASSY
F3J-61400-02-00
Unavailable
2
. SHAFT ASSY
F1W-67410-11-00
Unavailable
3
.. PIPE, SEAL
F1W-61435-00-00
Unavailable
4
. TUBE & BUSHING SET
F1W-6773D-00-00
Unavailable
5
.. BUSH
F1S-6134M-00-00
Unavailable
6
. BUSH
F2C-6134M-00-00
Unavailable
7
.. BUSH
F1S-6134M-10-00
Unavailable
8
. LOCK 1
F1S-61782-00-00
Unavailable
9
. CABLE STOPPER ASSY
F1S-6146A-00-00
Unavailable
10
. SEAL, RUBBER
F1S-6143C-00-00
Unavailable
11
. STAY 1
F1W-65938-00-00
Unavailable
12
. STAY 2
F2S-65939-00-00
Unavailable
13
SCREW
F1B-613C1-10-00
Unavailable
14
ARM ASSY.
F1S-6153R-02-00
Unavailable
15
STUD, JOINT BALL
EU0-61461-02-00
Unavailable
16
NUT, SELF-LOCKING
95720-06300-00
Unavailable
17
BOLT
F1W-61355-10-00
Unavailable
18
. PLATE, RETAINING
F1W-6142B-00-00
Unavailable
19
. LEVER ASSY
F2S-6151M-00-00
Unavailable
20
. PLUG
F1W-6358B-00-00
Unavailable
21
. SENSOR ASSY
F1W-68303-00-00
Unavailable
22
. BOLT
F1S-61355-00-00
Unavailable
23
BUZZER
F1S-68341-00-00
Unavailable
24
BOLT (62K)
97095-08035-00
Unavailable
25
NUT, NYLON (6J8)
95780-08300-00
Unavailable
26
WASHER
F1W-U725E-00-00
Unavailable
27
PLATE, RETAINING
F1X-U1554-00-00
Unavailable
28
RIVET, BLIND
90267-489U6-00
Unavailable
29
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
30
BOLT, WITH WASHER
90119-089U1-00
Unavailable
31
TRIM
F2S-U5162-00-00
Unavailable
