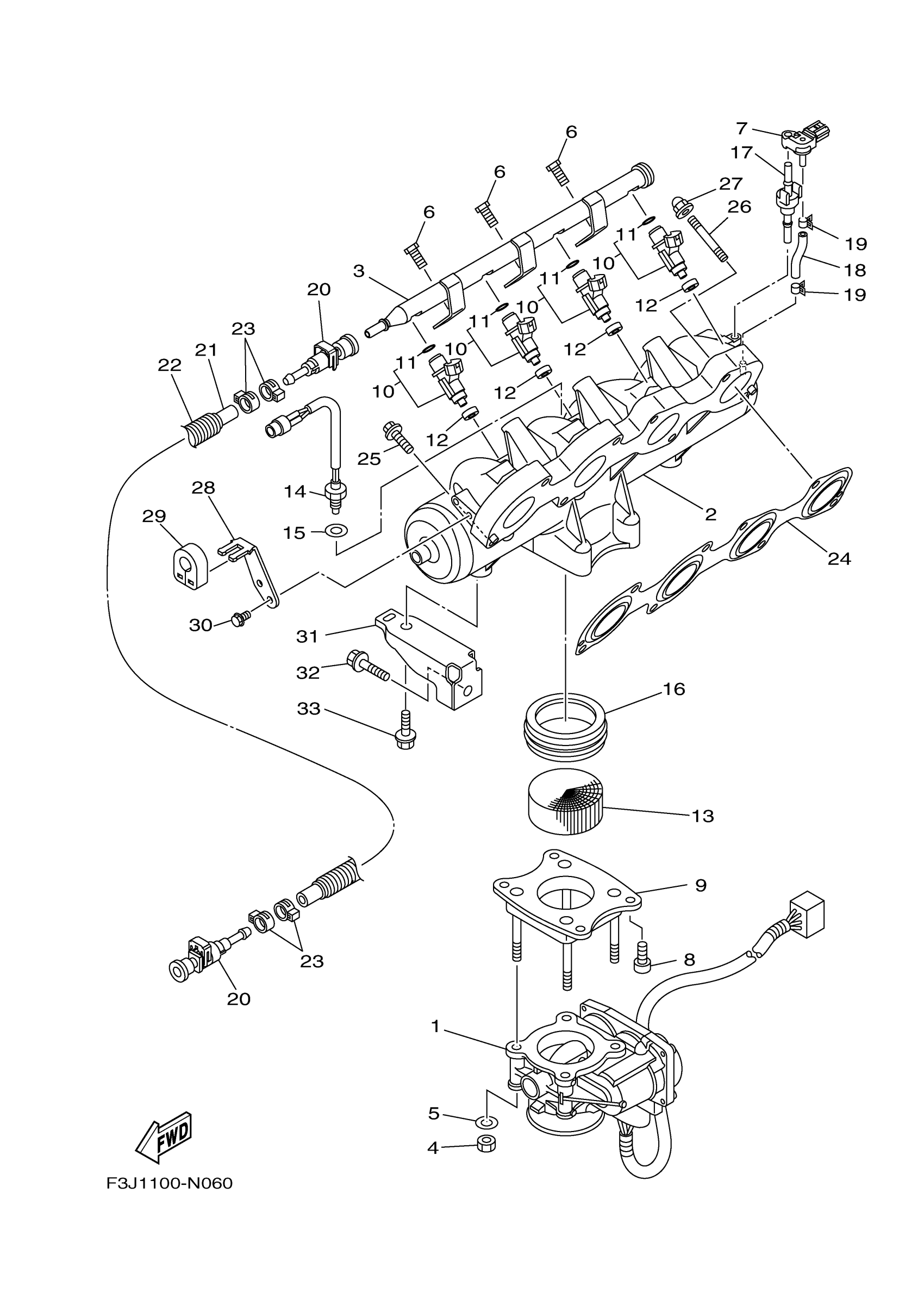

Yamaha FC1800AN (FX CRUISER SVHO) F3J1 2014 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6S5-13750-12-00

Unavailable

2

MANIFOLD, INTAKE 1

6S5-13641-A2-00

$946.95

3

DELIVERY PIPE

6CS-12880-00-00

$165.14

4

NUT

6P2-13588-00-00

$19.71

5

WASHER

6P2-13578-00-00

$6.57

6

BOLT

6CS-14446-00-00

$9.08

7

. SENSOR, PRESSURE

6BH-82380-00-00

$278.77

8

BOLT

6S5-14496-00-00

$12.86

9

THROTTLE DAMPER ASSY

6S5-14360-12-00

Unavailable

10

INJECTOR

6ET-13761-00-00

$196.95

11

. O-RING

68V-1416A-00-00

$10.18

12

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

13

RIBBON

6D3-1444B-01-00

Unavailable

14

SENSOR, AIR TEMPERATURE

6S5-85886-00-00

$156.05

15

. WASHER

6S5-14285-00-00

$2.19

16

HOLDER

6S5-14457-00-00

$78.49

17

GROMMET

6BH-14445-00-00

$20.99

18

HOSE

5PS-14987-00-00

Unavailable

19

CLIP

6S5-14159-01-00

Unavailable

20

FUEL PIPE JOINT

6S5-24300-01-00

$30.29

21

HOSE

6AN-14294-20-00

Unavailable

22

TUBE (L495)

90447-19017-00

$7.27

23

HOSE CLAMP ASSY

90450-17M17-00

$7.40

24

. GASKET, MANIFOLD 1

6BH-13645-00-00

$15.55

25

BOLT, WITH WASHER

97513-08535-00

$1.74

26

BOLT, STUD

90116-08032-00

$3.33

27

NUT, CROWN(4BR)

90176-08080-00

Unavailable

28

PLATE, STAY

6CS-14572-00-00

$7.27

29

GROMMET

6CS-14445-01-00

$5.45

30

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

31

STAY

6CS-14413-00-00

$55.99

32

BOLT, WITH WASHER

90119-08099-00

$5.00

33

BOLT, WITH WASHER

90119-08074-00

$4.09
