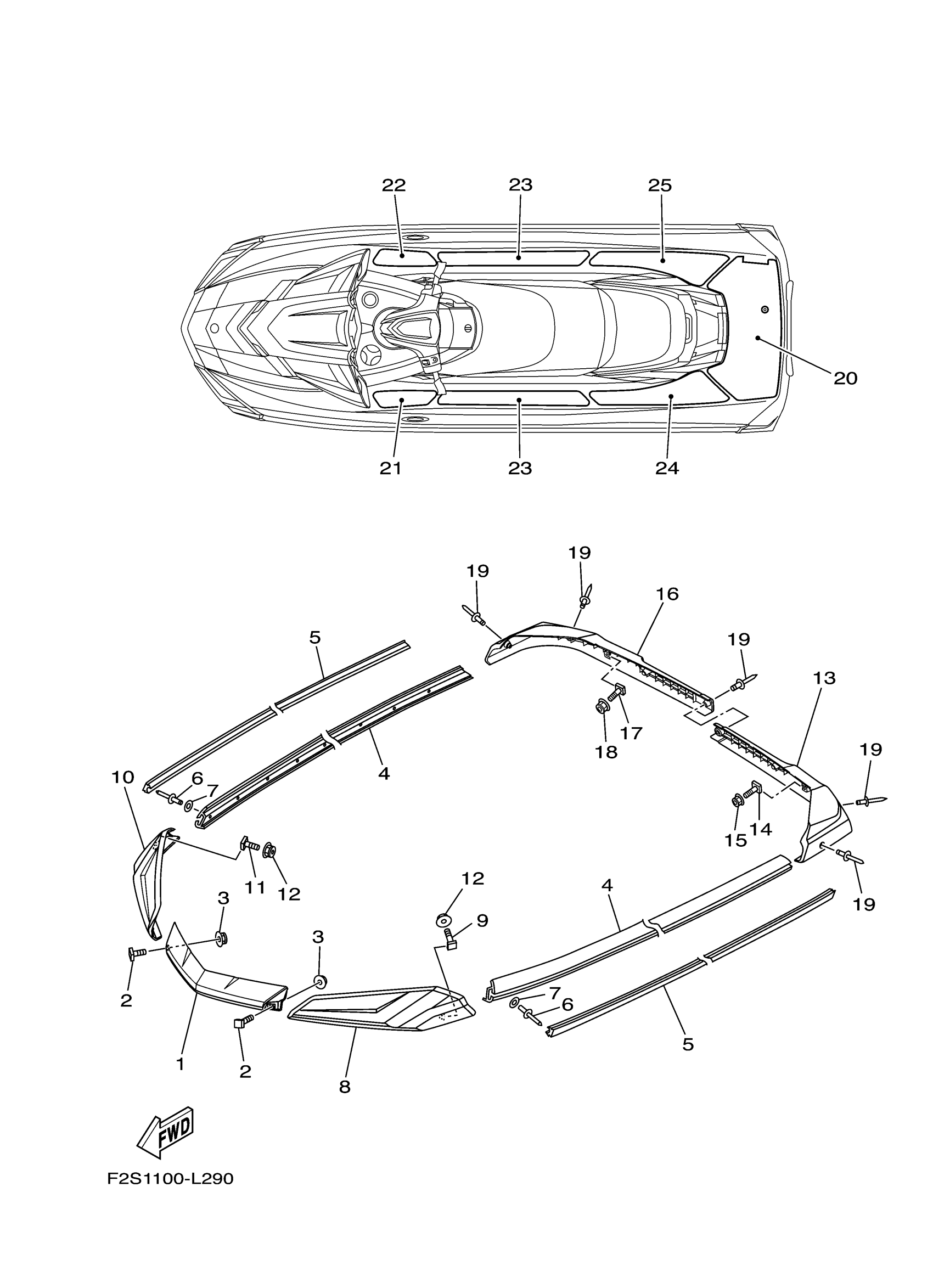

Yamaha FC1800AN (FX CRUISER SVHO) F3J1 2014 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F2S-U2511-10-00

$36.42

1

GUNWALE, BOW

F2S-U2511-20-00

$114.91

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F2S-U2512-10-00

$45.73

4

GUNWALE, SIDE

F2S-U2512-20-00

$50.73

5

INNER,GUNWALE

F2S-U2519-01-00

$20.92

5

INNER,GUNWALE

F2S-U2519-30-00

$21.63

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F2S-U252E-11-00

$111.93

8

JOINT, GUNWALE LH

F2S-U252E-20-00

$77.60

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

JOINT, GUNWALE RH

F2S-U252F-11-00

$111.93

10

JOINT, GUNWALE RH

F2S-U252F-20-00

$77.60

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

NUT, LOCK

F2N-U142L-00-00

$1.00

13

GUNWALE, STERN 1 LH

F2S-U251D-10-00

$91.47

13

GUNWALE, STERN 1 LH

F2S-U251D-20-00

$72.87

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE, STERN 2 RH

F2S-U251E-10-00

$67.43

16

GUNWALE, STERN 2 RH

F2S-U251E-20-00

$72.87

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

RIVET, BLIND

90267-48825-00

$2.16

20

MAT, UPPER

F2S-U3581-01-00

$74.61

20

MAT, UPPER

F2S-U3581-10-00

$83.57

21

MAT, STEP 1

F2S-U351H-00-00

$13.63

21

MAT, STEP 1

F2S-U351H-10-00

$13.42

22

MAT, STEP 2

F2S-U351J-00-00

$11.48

22

MAT, STEP 2

F2S-U351J-10-00

$13.42

23

MAT, STEP 3

F2S-U351K-00-00

$17.94

23

MAT, STEP 3

F2S-U351K-10-00

$20.88

24

MAT, STEP 4

F2S-U351M-00-00

$22.97

24

MAT, STEP 4

F2S-U351M-10-00

$26.10

25

MAT, STEP 5

F2S-U351N-00-00

$23.67

25

MAT, STEP 5

F2S-U351N-10-00

$26.10
