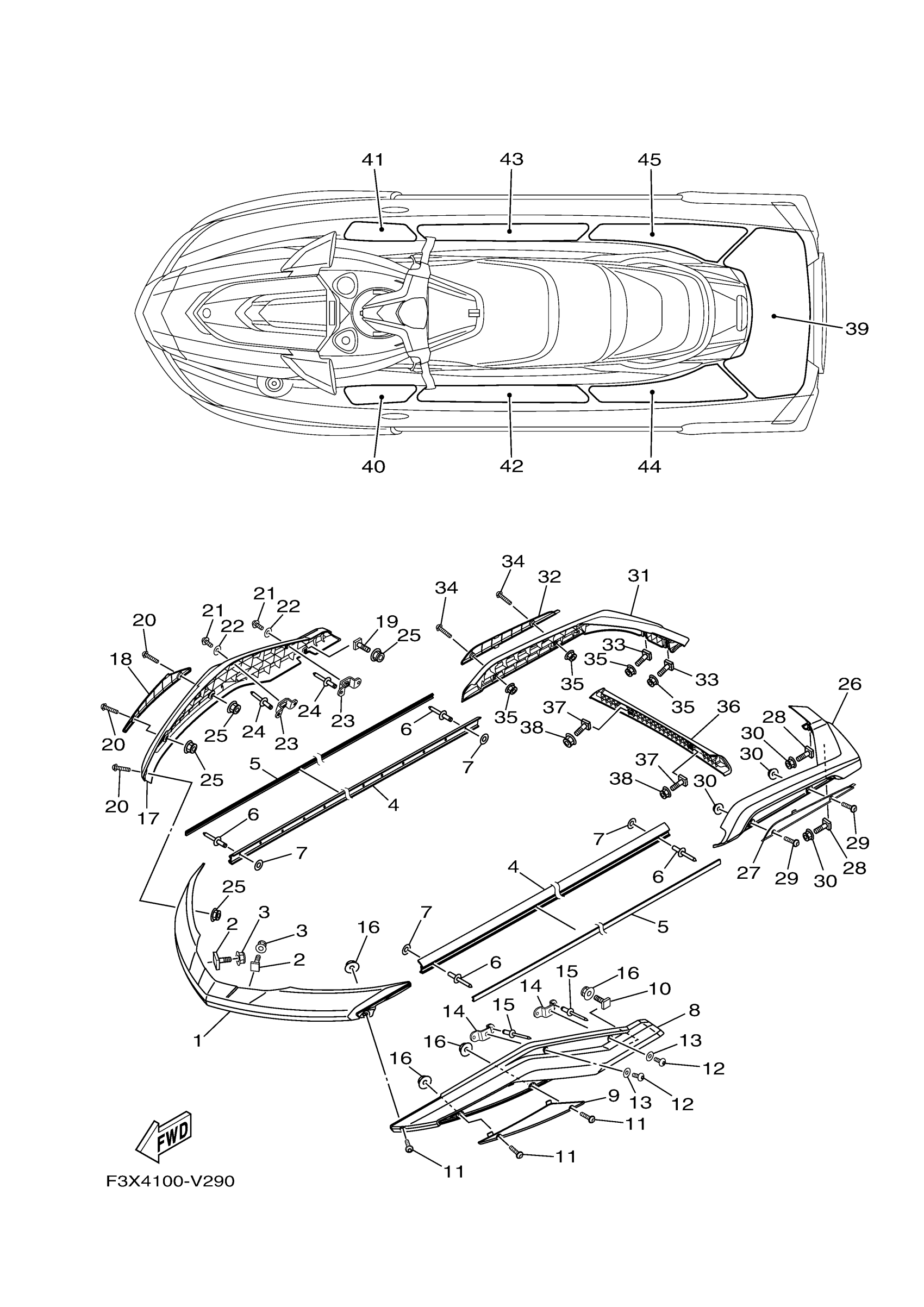

Yamaha FB1800W (FX HO) F3V6 2021 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-11-00

$37.98

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F3X-U2512-10-00

$26.10

5

INNER,GUNWALE

F3X-U2519-80-00

$30.13

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F3X-U252E-10-00

$39.53

9

GUNWALE INSIDE

F3X-U2514-00-00

$11.48

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.23

13

WASHER, PLATE

90201-06805-00

$0.60

14

BRACKET

F3X-U4949-00-00

$2.66

15

RIVET, BLIND

90267-489U6-00

Unavailable

16

NUT, LOCK

F2N-U142L-00-00

$1.00

17

JOINT, GUNWALE RH

F3X-U252F-10-00

$39.53

18

GUNWALE INSIDE

F3X-U2514-10-00

$11.48

19

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

20

SCREW

F3X-U7823-12-00

$1.25

21

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.23

22

WASHER, PLATE

90201-06805-00

$0.60

23

BRACKET

F3X-U4949-00-00

$2.66

24

RIVET, BLIND

90267-489U6-00

Unavailable

25

NUT, LOCK

F2N-U142L-00-00

$1.00

26

GUNWALE, STERN 1

F3X-U251D-10-00

$31.33

27

INNER GUNWALE, AFT

F3X-U255C-00-00

$5.07

28

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

29

SCREW

F3X-U7823-12-00

$1.25

30

NUT, LOCK

F2N-U142L-00-00

$1.00

31

GUNWALE, STERN 2

F3X-U251E-10-00

$31.33

32

INNER GUNWALE, AFT

F3X-U255C-10-00

$5.07

33

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

34

SCREW

F3X-U7823-12-00

$1.25

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

COVER, GUNWALE 1

F3X-U252C-11-00

$16.40

37

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

38

NUT, LOCK

F2N-U142L-00-00

$1.00

39

MAT, UPPER

F3X-U3581-01-00

$71.63

40

MAT, STEP 1

F3X-U351H-00-00

$31.33

41

MAT, STEP 2

F3X-U351J-00-00

$31.33

42

MAT, STEP 3

F3X-U351K-00-00

$44.76

43

MAT, STEP 4

F3X-U351M-00-00

$44.76

44

MAT, STEP 5

F3X-U351N-00-00

$46.25

45

MAT, STEP 6

F3X-U351P-00-00

$46.25
