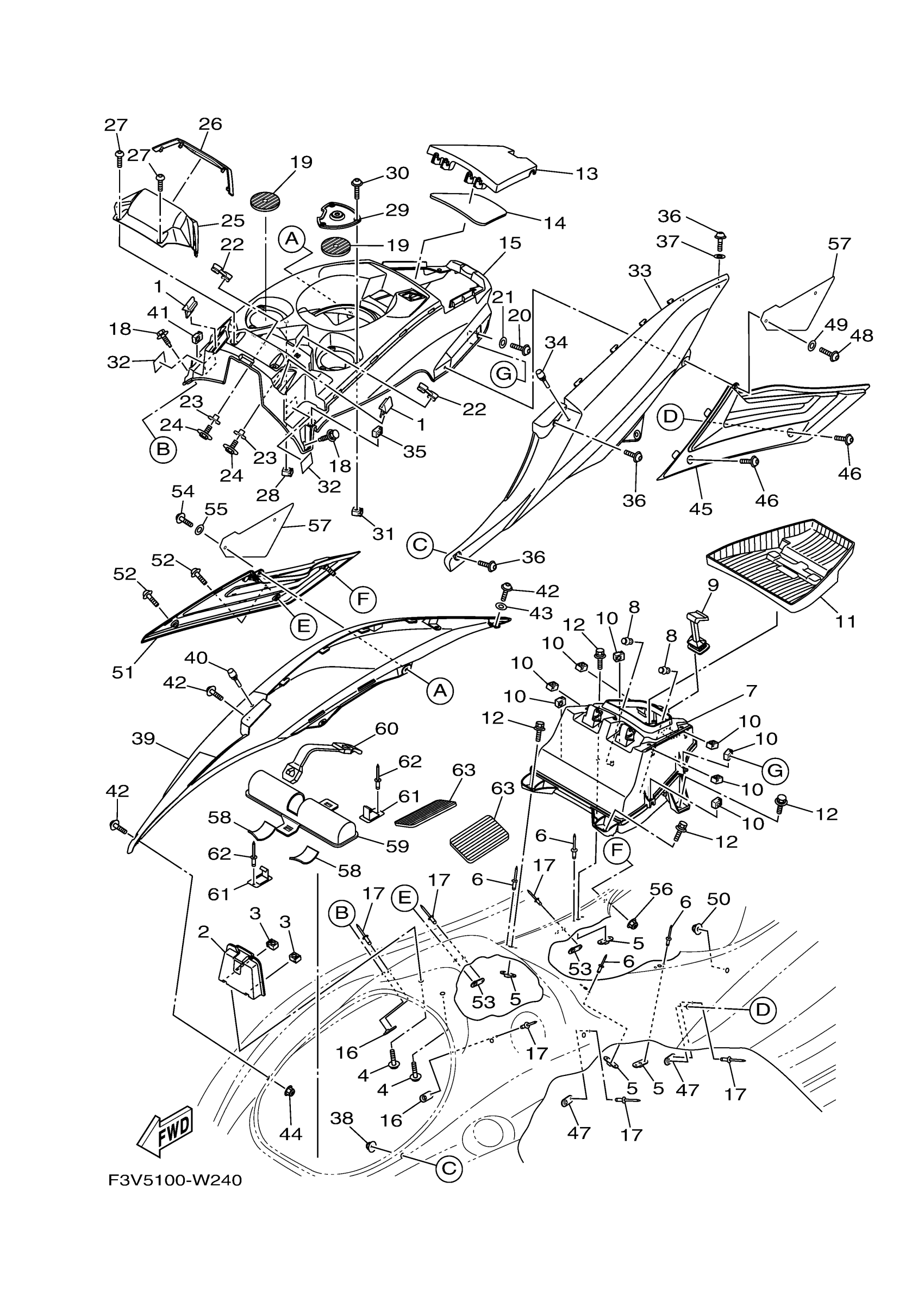

Yamaha FB1800W (FX HO) F3V6 2021 ENGINE HATCH 1 Diagram

#

Description
Price

1

PACKING 4

F1K-U266C-10-00

$2.21

2

HOOK,LID LOCK

F3X-U517F-00-00

$12.49

3

NUT

F3X-U517E-00-00

$1.29

4

BOLT, WITH WASHER

90119-06880-00

$3.65

5

BRACKET

F2C-U826C-00-00

$4.01

6

RIVET, BLIND

90267-489U2-00

$1.51

7

BOX GLOVE

F3X-U516P-00-00

$85.28

8

. SEAL

F3X-U2723-00-00

$2.35

9

LOCK

F3X-U2875-01-00

$13.22

10

NUT

F3X-U517E-00-00

$1.29

11

INNER, CASE

F3X-U591L-00-00

$36.75

12

BOLT, WITH WASHER

90119-08828-00

$2.44

13

LID HATCH

F3X-U517H-00-00

$17.63

14

PACKING CASE

F3X-U519D-01-00

$11.01

15

COVER,CENTER

F3X-U5554-01-00

$283.81

16

PLATE, FIX

F2X-U5175-00-00

$1.87

17

RIVET (EU0)

90267-48938-00

$4.85

18

BOLT,WITH WASHER

90119-068B8-00

$30.13

19

MAT

F3X-U3844-00-00

$2.06

20

SCREW

F3X-U7823-12-00

$1.25

21

WASHER, PLATE

90201-06805-00

$0.59

22

GROMMET

F3X-U1338-00-00

$1.62

23

COLLAR

F3X-U151R-00-00

$1.10

24

BOLT

F3X-U1355-00-00

$0.81

25

COVER METER

F3X-U8262-00-00

$14.69

26

ORNAMENT, METER

F3X-U826F-00-00

$30.87

27

SCREW

F2S-U13C1-00-00

$2.52

28

NUT

F3X-U517E-00-00

$1.29

29

FIX, PLATE

F3X-UE175-00-00

$10.07

30

SCREW

F3X-U7823-12-00

$1.25

31

NUT

F3X-U517E-00-00

$1.29

32

PACKING

F2C-U1743-00-00

$2.00

33

COVER,SIDE 1 (RM9)

F3X-U377B-00-P4

$157.34

34

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

35

NUT

F3X-U517E-00-00

$1.29

36

SCREW

F3X-U7823-12-00

$1.25

37

WASHER, PLATE

90201-06805-00

$0.59

38

NUT, LOCK

F2N-U142L-00-00

$1.43

39

COVER,SIDE 2 (RM9)

F3X-U377C-00-P4

$157.34

40

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

41

NUT

F3X-U517E-00-00

$1.29

42

SCREW

F3X-U7823-12-00

$1.25

43

WASHER, PLATE

90201-06805-00

$0.59

44

NUT, LOCK

F2N-U142L-00-00

$1.43

45

SIDE ORNAMENT ASSY 1

F3X-U370J-B0-00

$79.40

46

SCREW

F3X-U7823-02-00

$1.43

47

PLATE, FIX

F2X-U5175-00-00

$1.87

48

SCREW

F3X-U7823-12-00

$1.25

49

WASHER, PLATE

90201-06805-00

$0.59

50

NUT, LOCK

F2N-U142L-00-00

$1.43

51

SIDE ORNAMENT ASSY 2

F3X-U370K-B0-00

$79.40

52

SCREW

F3X-U7823-02-00

$1.43

53

PLATE, FIX

F2X-U5175-00-00

$1.87

54

SCREW

F3X-U7823-12-00

$1.25

55

WASHER, PLATE

90201-06805-00

$0.59

56

NUT, LOCK

F2N-U142L-00-00

$1.43

57

PROTECTOR

F3X-U895D-00-00

$2.80

58

MAT 2

F1K-U759C-00-00

$1.80

59

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$18.66

60

BAND 1

F2P-U828K-00-00

$6.17

61

HOOK A

F1K-U5772-04-00

$6.10

62

RIVET (EU0)

90267-48938-00

$4.85

63

PAD, BATTERY

F1S-U8221-00-00

$2.88
