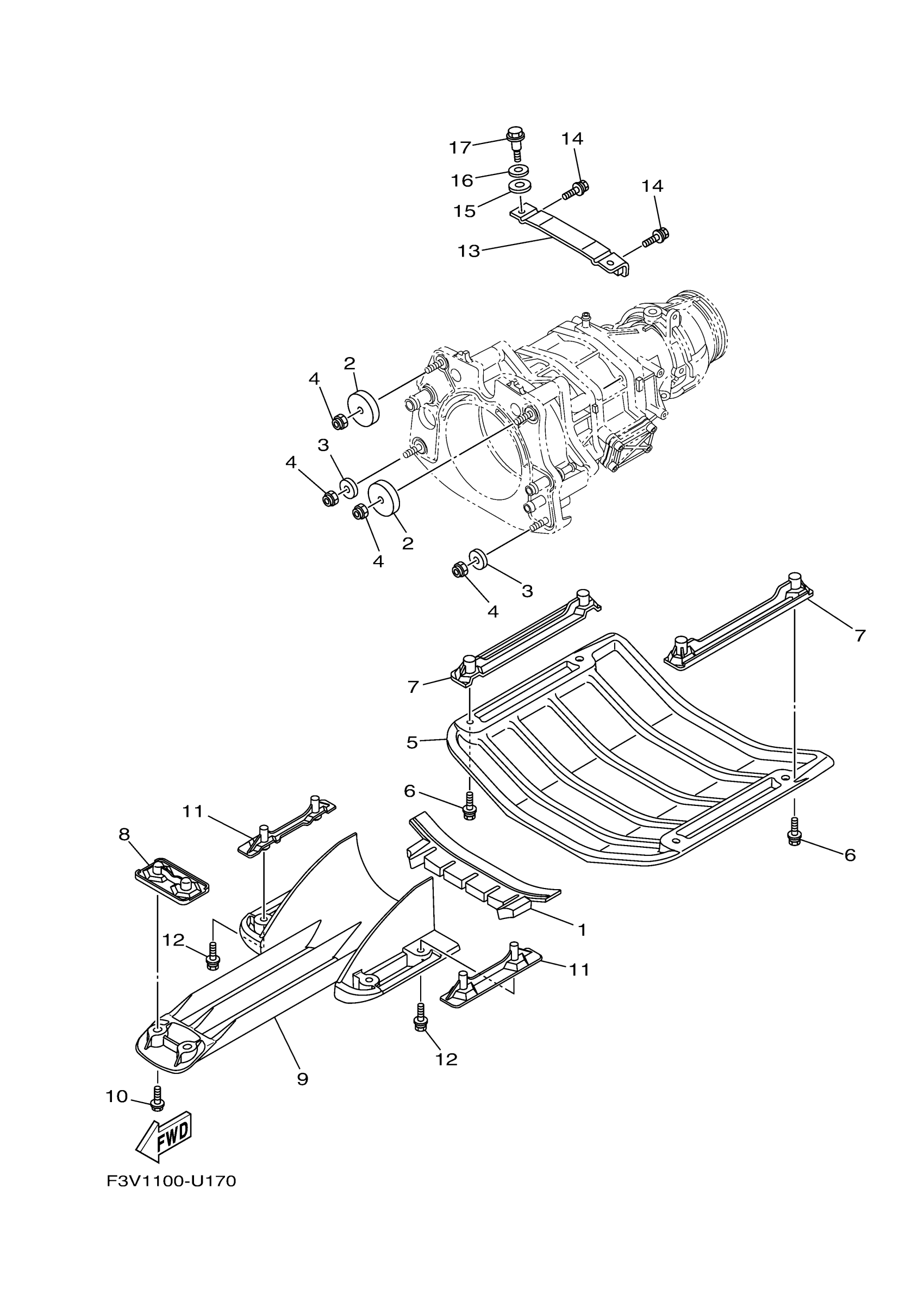

Yamaha FB1800V (FX HO) F3V4 2020 JET UNIT 4 Diagram

#

Description
Price

1

SPACER

F2S-U72C0-01-00

$15.07

2

WASHER

F1S-U725E-01-00

$7.89

3

WASHER, PLATE

90201-10801-00

$3.52

4

NUT, NYLON

9572R-10300-00

$3.37

5

PLATE 2

F3X-U273B-01-00

$121.20

6

BOLT, WITH WASHER

90119-08829-00

$3.88

7

BRACKET 2

F1B-U8572-01-00

$15.14

8

BRACKET, 3

F2S-U8577-00-00

$15.07

9

SCREEN, INTAKE

6CS-R1333-00-00

$87.86

10

BOLT, WITH WASHER

90119-08829-00

$3.88

11

BRACKET 1

F1G-U8571-02-00

$15.07

12

BOLT, WITH WASHER

90119-08829-00

$3.88

13

BRACKET

F2C-U7557-01-00

$30.29

14

BOLT, WITH WASHER

90119-08800-00

$4.09

15

GASKET

90430-12002-00

$1.81

16

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

17

BOLT

90109-08043-00

$4.09
