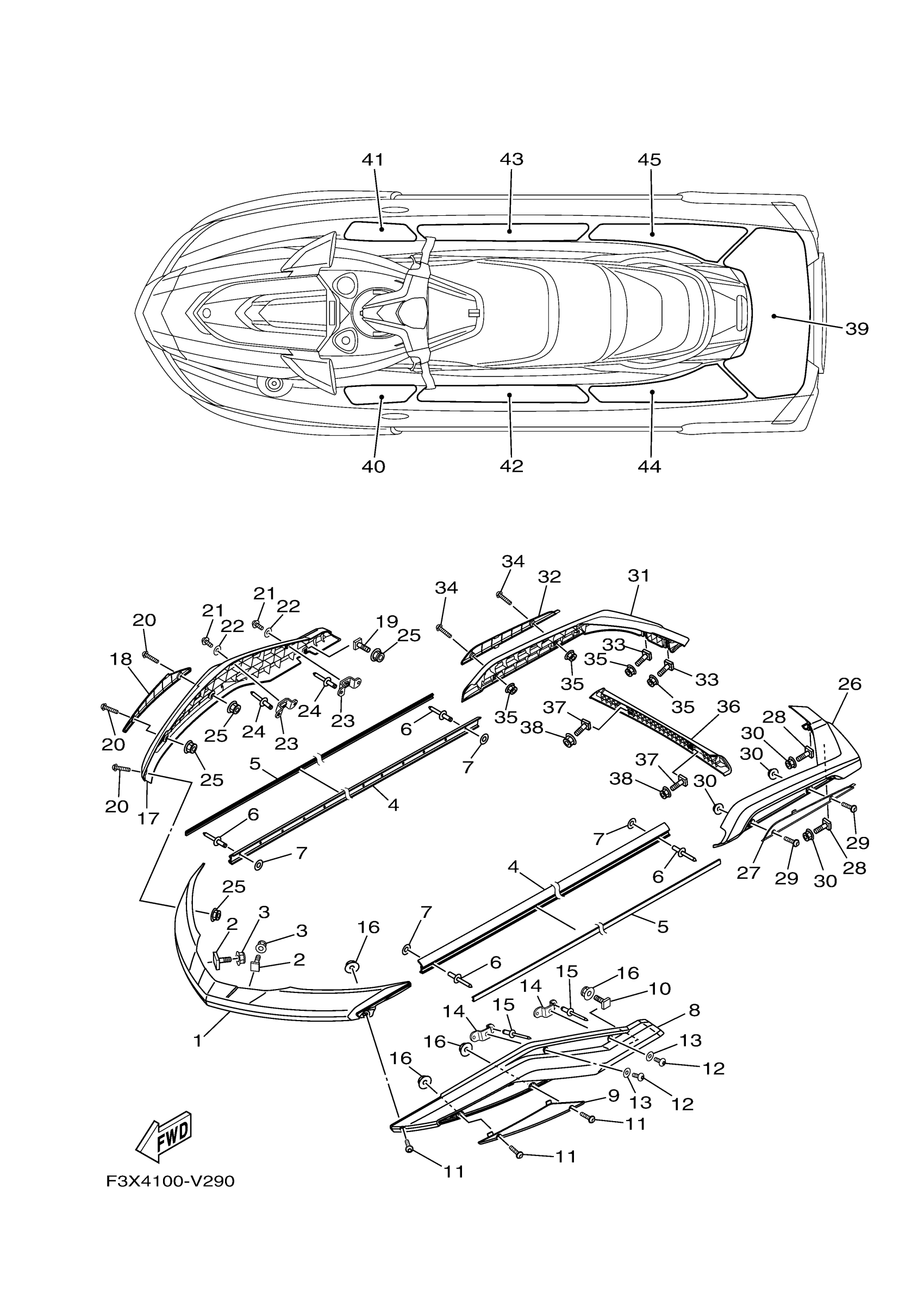

Yamaha FB1800V (FX HO) F3V4 2020 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

$27.93

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.43

4

GUNWALE, SIDE

F3X-U2512-00-00

$24.99

5

INNER,GUNWALE

F3X-U2519-60-00

$51.46

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F3X-U252E-00-00

$27.19

9

GUNWALL INSIDE

F3X-U2514-E0-00

$13.22

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

SCREW

F4G-U7823-01-00

Unavailable

13

WASHER, PLATE

90201-06805-00

$0.59

14

BRACKET

F3X-U4949-00-00

$2.66

15

RIVET, BLIND

90267-489U6-00

Unavailable

16

NUT, LOCK

F2N-U142L-00-00

$1.43

17

JOINT, GUNWALE RH

F3X-U252F-00-00

$27.19

18

GUNWALL INSIDE

F3X-U2514-F0-00

$13.22

19

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

20

SCREW

F3X-U7823-12-00

$1.25

21

SCREW

F4G-U7823-01-00

Unavailable

22

WASHER, PLATE

90201-06805-00

$0.59

23

BRACKET

F3X-U4949-00-00

$2.66

24

RIVET, BLIND

90267-489U6-00

Unavailable

25

NUT, LOCK

F2N-U142L-00-00

$1.43

26

GUNWALE, STERN 1

F3X-U251D-00-00

$24.25

27

INNER GUNWALE, AFT

F3X-U255C-E0-00

$13.22

28

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

29

SCREW

F3X-U7823-12-00

$1.25

30

NUT, LOCK

F2N-U142L-00-00

$1.43

31

GUNWALE, STERN 2

F3X-U251E-00-00

$24.25

32

INNER GUNWALE, AFT

F3X-U255C-F0-00

$13.22

33

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

34

SCREW

F3X-U7823-12-00

$1.25

35

NUT, LOCK

F2N-U142L-00-00

$1.43

36

COVER, GUNWALE 1

F3X-U252C-01-00

$10.75

37

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

38

NUT, LOCK

F2N-U142L-00-00

$1.43

39

MAT, UPPER

F3X-U3581-01-00

$70.57

40

MAT, STEP 1

F3X-U351H-00-00

$30.87

41

MAT, STEP 2

F3X-U351J-00-00

$30.87

42

MAT, STEP 3

F3X-U351K-00-00

$44.10

43

MAT, STEP 4

F3X-U351M-00-00

$44.10

44

MAT, STEP 5

F3X-U351N-00-00

$45.57

45

MAT, STEP 6

F3X-U351P-00-00

$45.57
