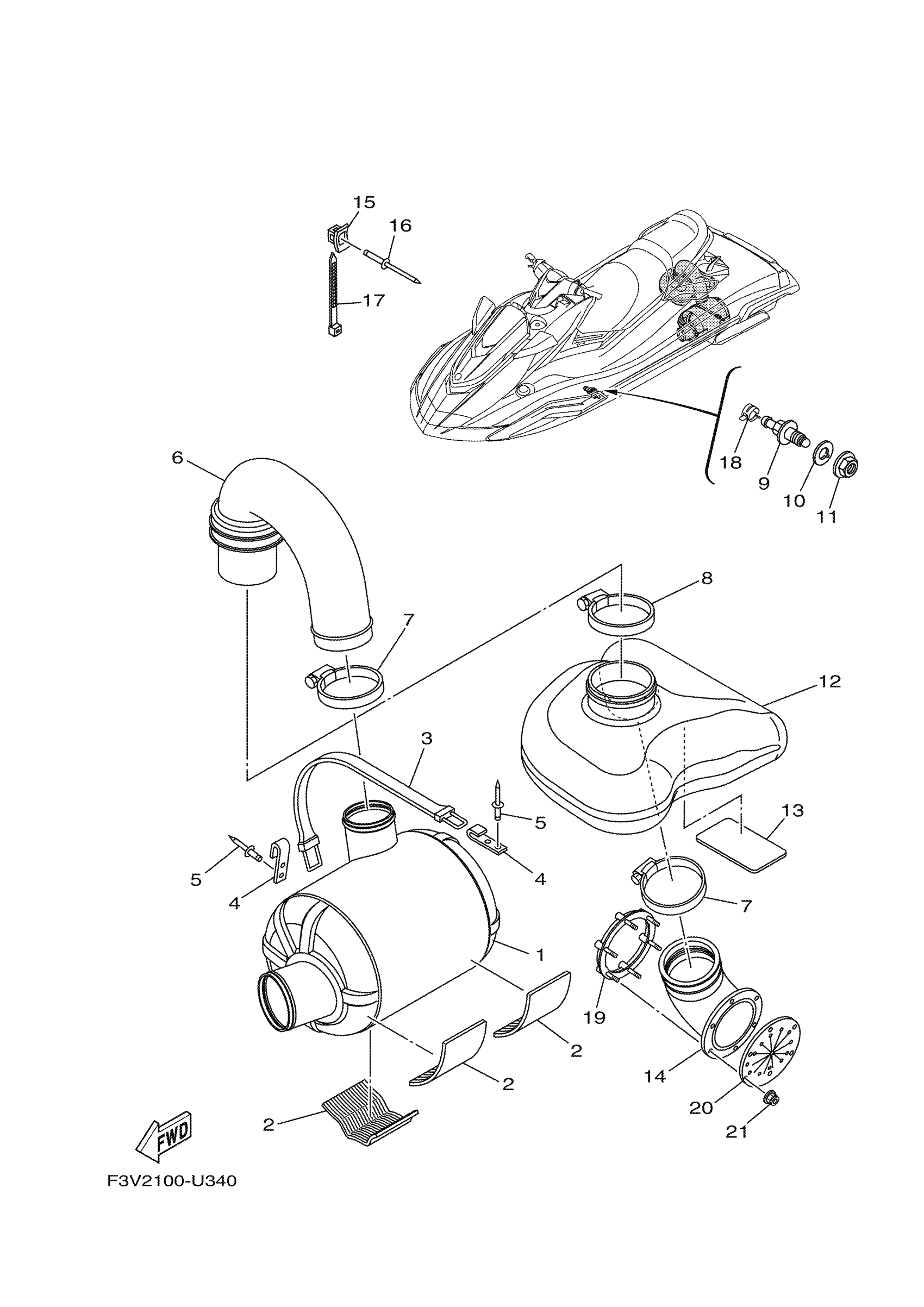

Yamaha FB1800V (FX HO) F3V4 2020 EXHAUST 3 Diagram
#
Description
Price
1
WATER LOCK COMP.
F4P-U7550-00-00
Unavailable
2
PAD, BATTERY
F1S-U8221-00-00
Unavailable
3
BAND, FUEL TANK
EW2-67821-00-00
Unavailable
4
HOOK A
GA7-65772-00-00
Unavailable
5
RIVET (EU0)
90267-48938-00
Unavailable
6
HOSE, EXHAUST
F3X-U7555-00-00
Unavailable
7
HOSE CLAMP ASSY
90450-99801-00
Unavailable
8
HOSE CLAMP ASSY
90450-99804-00
Unavailable
9
PILOT, WATER
F2C-U753B-01-00
Unavailable
10
GASKET
F2C-U7564-02-00
Unavailable
11
NUT
F2C-U2733-00-00
Unavailable
12
TANK, WATER
F3X-U4261-00-00
Unavailable
13
PAD, BATTERY
F1S-U8221-00-00
Unavailable
14
HOSE,EXHAUST 3
F3X-U758D-00-00
Unavailable
15
BASE, CLAMP
F1W-U828M-00-00
Unavailable
16
CLAMP
90464-32801-00
Unavailable
17
RIVET, BLIND
90267-489U6-00
Unavailable
18
CLIP
90467-150A5-00
Unavailable
19
PLATE
F1S-U757B-01-00
Unavailable
20
VALVE, EXHAUST
F1B-U751G-10-00
Unavailable
21
NUT, LOCK
F2N-U142L-00-00
Unavailable
