GUNWALE & MAT

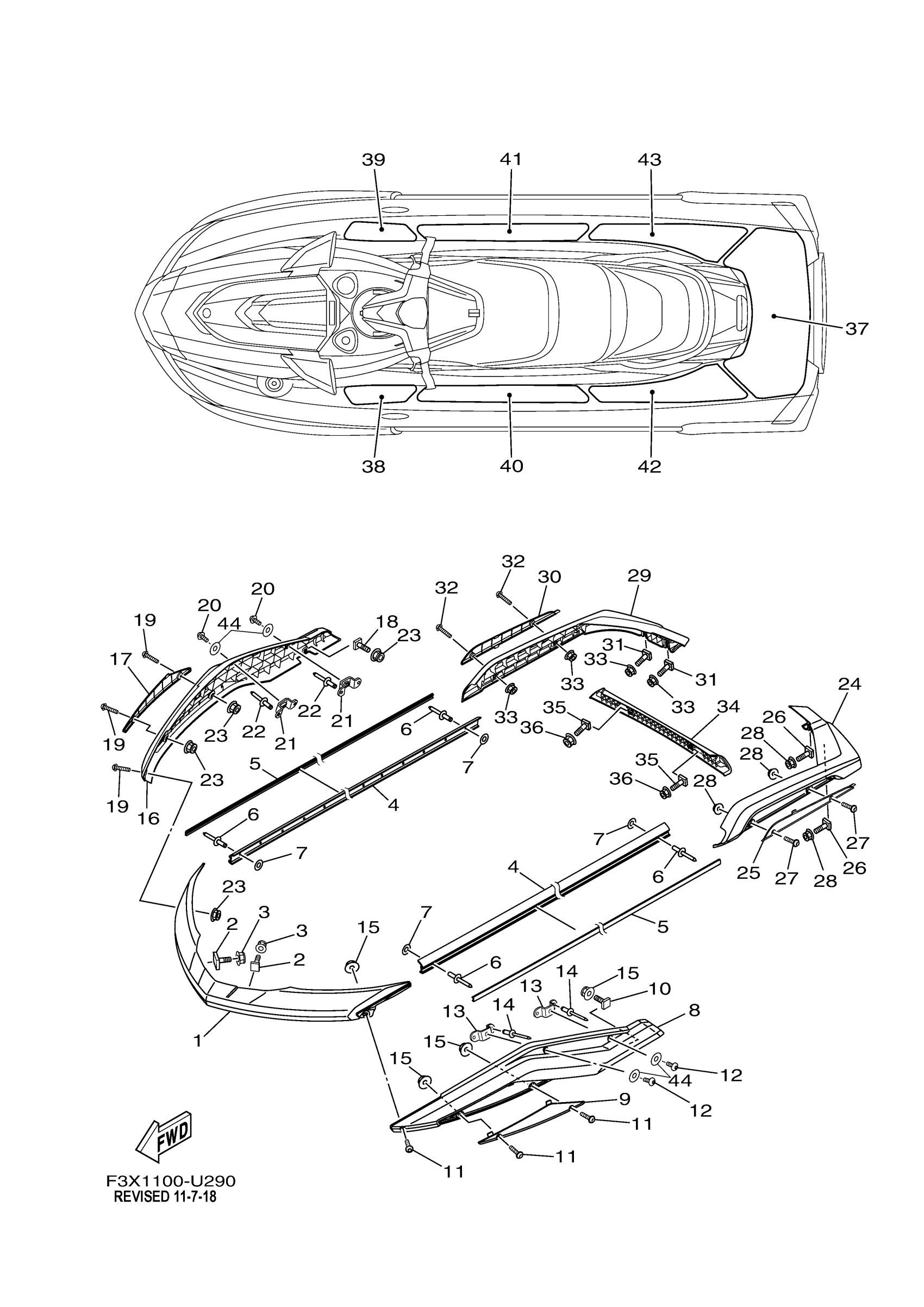

Yamaha FB1800U (FX HO) F3V2 2019 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW
F3X-U2511-01-00
Unavailable
2
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
3
NUT, LOCK
F2N-U142L-00-00
Unavailable
4
GUNWALE, SIDE
F3X-U2512-00-00
Unavailable
5
INNER,GUNWALE
F3X-U2519-20-00
Unavailable
6
RIVET, BLIND
90267-489U8-00
Unavailable
7
WASHER
9299R-05200-00
Unavailable
8
JOINT, GUNWALE LH
F3X-U252E-00-00
Unavailable
9
GUNWALE INSIDE
F3X-U2514-20-00
Unavailable
10
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
11
SCREW
F3X-U7823-12-00
Unavailable
12
SCREW
F4G-U7823-00-00
Unavailable
13
BRACKET
F3X-U4949-00-00
Unavailable
14
RIVET, BLIND
90267-489U6-00
Unavailable
15
NUT, LOCK
F2N-U142L-00-00
Unavailable
16
JOINT, GUNWALE RH
F3X-U252F-00-00
Unavailable
17
GUNWALE INSIDE
F3X-U2514-30-00
Unavailable
18
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
19
SCREW
F3X-U7823-12-00
Unavailable
20
SCREW
F4G-U7823-00-00
Unavailable
21
BRACKET
F3X-U4949-00-00
Unavailable
22
RIVET, BLIND
90267-489U6-00
Unavailable
23
NUT, LOCK
F2N-U142L-00-00
Unavailable
24
GUNWALE, STERN 1
F3X-U251D-00-00
Unavailable
25
INNER GUNWALE, AFT
F3X-U255C-20-00
Unavailable
26
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
27
SCREW
F3X-U7823-12-00
Unavailable
28
NUT, LOCK
F2N-U142L-00-00
Unavailable
29
GUNWALE, STERN 2
F3X-U251E-00-00
Unavailable
30
INNER GUNWALE, AFT
F3X-U255C-30-00
Unavailable
31
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
32
SCREW
F3X-U7823-12-00
Unavailable
33
NUT, LOCK
F2N-U142L-00-00
Unavailable
34
COVER, GUNWALE 1
F3X-U252C-01-00
Unavailable
35
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
36
NUT, LOCK
F2N-U142L-00-00
Unavailable
37
MAT, UPPER
F3X-U3581-11-00
Unavailable
38
MAT, STEP 1
F3X-U351H-10-00
Unavailable
39
MAT, STEP 2
F3X-U351J-10-00
Unavailable
40
MAT, STEP 3
F3X-U351K-10-00
Unavailable
41
MAT, STEP 4
F3X-U351M-10-00
Unavailable
42
MAT, STEP 5
F3X-U351N-10-00
Unavailable
43
MAT, STEP 6
F3X-U351P-10-00
Unavailable
44
WASHER, PLATE
90201-06805-00
Unavailable
