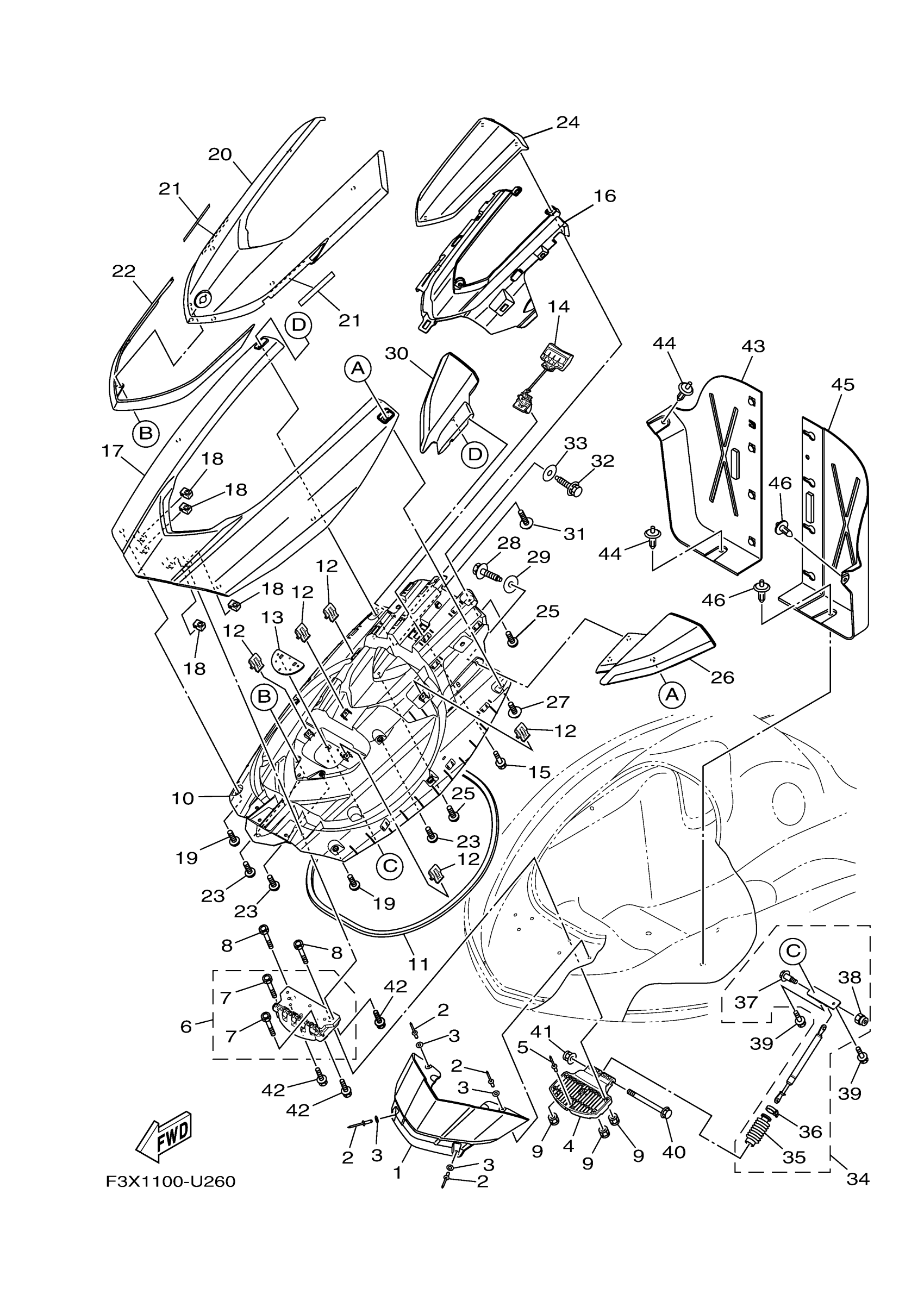

Yamaha FB1800U (FX HO) F3V2 2019 ENGINE HATCH 2 Diagram

#

Description
Price

1

COVER, FRONT

F3X-U513M-02-P0

$128.99

2

RIVET, BLIND

90267-489U6-00

Unavailable

3

WASHER

9299R-05200-00

Unavailable

4

PLATE, HINGE LID

F3X-U518E-00-00

Unavailable

5

RIVET, BLIND

90267-489U6-00

Unavailable

6

HINGE, LID

F3X-U517D-01-00

Unavailable

7

BOLT

F3X-U3222-00-00

Unavailable

8

BOLT

F3X-U3222-00-00

Unavailable

9

NUT, LOCK

F2N-U142L-00-00

Unavailable

10

INNER, ENGINE HATCH

F3X-U519G-00-00

Unavailable

11

PACKING 1

F3X-U2663-10-00

Unavailable

12

CLIP

F3Y-U153K-00-00

Unavailable

13

PLATE, HATCH

F3X-U5148-00-00

Unavailable

14

LOCK, LID

F3X-U517C-00-00

Unavailable

15

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

16

OUTER, ENGINE HATCH

F3X-U519F-00-00

Unavailable

17

LID, ENGINE ROOM (PURW)

F3X-U517B-00-P0

Unavailable

18

NUT

F3X-U517E-00-00

Unavailable

19

SCREW

F2S-U13C1-00-00

Unavailable

20

VISOR

F3X-U515N-01-P0

Unavailable

21

DAMPER 2

F0X-U515E-02-00

Unavailable

22

ORNAMENT, CENTER

F3X-U517V-00-00

Unavailable

23

SCREW

F2S-U13C1-00-00

Unavailable

24

VISOR, 2

F3X-U515P-10-00

Unavailable

25

SCREW

F2S-U13C1-00-00

Unavailable

26

MIRROR ASSY. 1

F3X-U590D-10-00

Unavailable

27

SCREW

F3X-U7823-12-00

Unavailable

28

BOLT, WITH WASHER

90119-06880-00

Unavailable

29

WASHER, PLATE

90201-068G0-00

Unavailable

30

MIRROR ASSY. 2

F3X-U590E-10-00

Unavailable

31

SCREW

F3X-U7823-12-00

Unavailable

32

BOLT, WITH WASHER

90119-06880-00

Unavailable

33

WASHER, PLATE

90201-068G0-00

Unavailable

34

DAMPER ASSY

F2S-6514S-00-00

Unavailable

35

. COVER, DAMPER

F1W-6514T-00-00

Unavailable

36

BAND

1UA-82591-00-00

Unavailable

37

BOLT

90109-06218-00

Unavailable

38

NUT, SELF-LOCKING

95720-06300-00

Unavailable

39

BOLT, WITH WASHER

90119-06830-00

Unavailable

40

BOLT, SPECIAL

F3X-U491K-00-00

Unavailable

41

NUT, LOCK

F3Y-U142L-00-00

Unavailable

42

BOLT, WITH WASHER

90119-06896-00

Unavailable

43

LOCKER,BOW

F3X-U475B-00-00

Unavailable

44

RIVET

90269-08801-00

Unavailable

45

PLATE, LOKER BOW

F3X-U475F-00-00

Unavailable

46

RIVET

90269-08801-00

Unavailable
