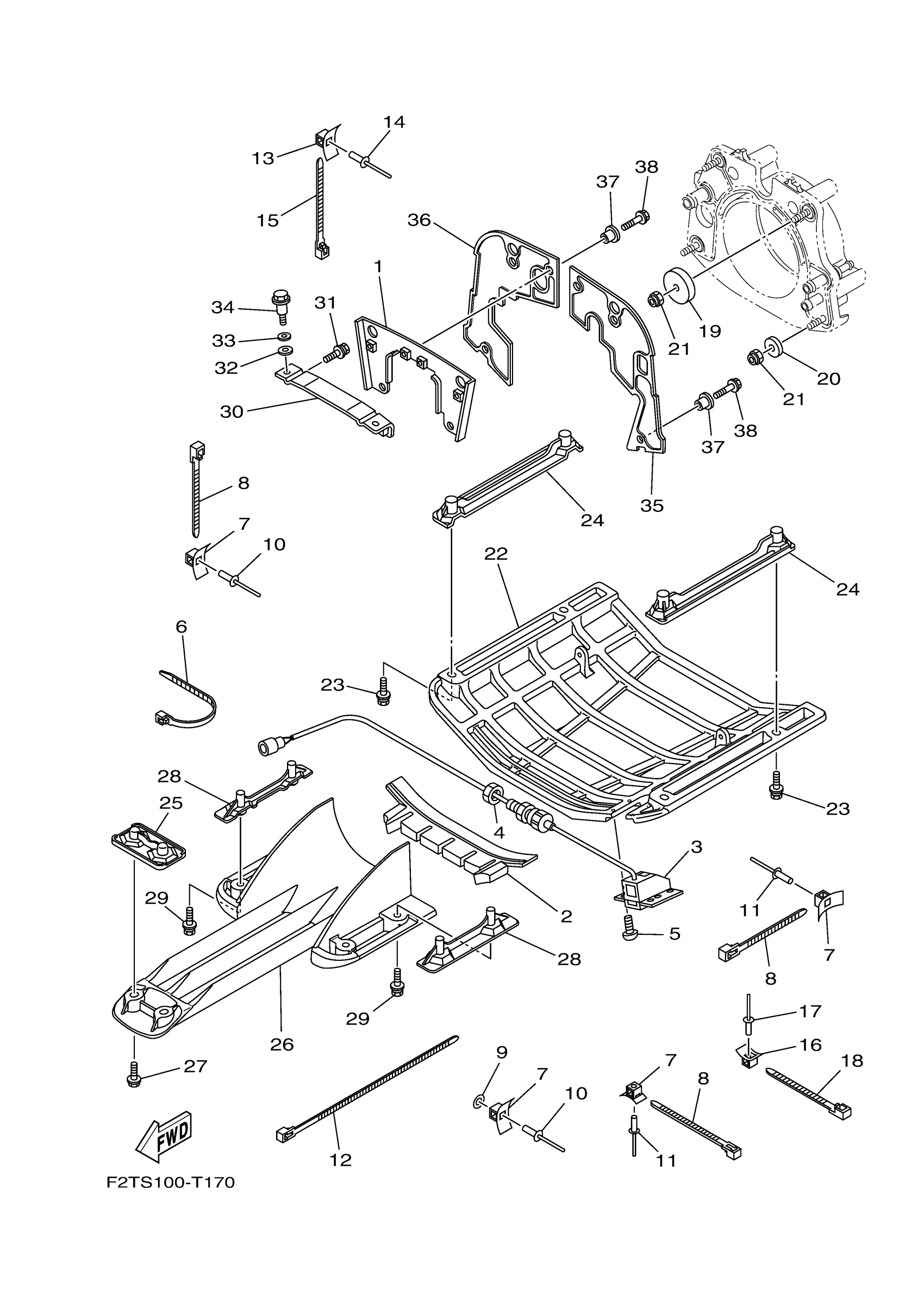

Yamaha FB1800T (FX HO) F2TU 2018 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6ET-R1959-00-00

$17.14

2

SPACER

F2S-U72C0-01-00

$15.07

3

SENSOR SPEED

F1S-U8K31-03-00

$142.18

4

NUT

F2C-U151S-00-00

$1.59

5

SCREW, ROUND HEAD

90150-05807-00

$0.79

6

CLAMP

90464-32801-00

$1.23

7

BASE, CLAMP

F1W-U828M-00-00

$1.23

8

CLAMP

90464-32801-00

$1.23

9

WASHER

9299R-05200-00

$3.16

10

RIVET, BLIND

90267-489U6-00

$1.37

11

RIVET, BLIND

90267-48806-00

$2.00

12

CLAMP

90464-99801-00

$2.73

13

BASE, CLAMP

F1W-U828M-00-00

$1.23

14

RIVET, BLIND

90267-48806-00

$2.00

15

CLAMP

90464-32801-00

$1.23

16

BASE, CLAMP

F1W-U828M-00-00

$1.23

17

RIVET, BLIND

90267-48806-00

$2.00

18

CLAMP

90464-32801-00

$1.23

19

WASHER

F1S-U725E-01-00

$7.89

20

WASHER, PLATE

90201-10801-00

$3.52

21

NUT, NYLON

9572R-10300-00

$3.37

22

PLATE 2

F2S-6273B-00-00

$340.89

23

BOLT, WITH WASHER

90119-08829-00

$3.88

24

BRACKET 2

F1B-U8572-01-00

$15.14

25

BRACKET, 3

F2S-U8577-00-00

$15.07

26

SCREEN, INTAKE

6CS-R1333-00-00

$87.86

27

BOLT, WITH WASHER

90119-08829-00

$3.88

28

BRACKET 1

F1G-U8571-02-00

$15.07

29

BOLT, WITH WASHER

90119-08829-00

$3.88

30

BRACKET

F2C-U7557-01-00

$30.29

31

BOLT, WITH WASHER

90119-08800-00

$4.09

32

GASKET

90430-12002-00

$1.81

33

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

34

BOLT

90109-08043-00

$4.09

35

PLATE, RUBBER 1

F3J-U757E-00-00

Unavailable

36

PLATE, RUBBER 2

F3J-U757F-00-00

$12.86

37

COLLAR

90387-06080-00

$7.27

38

BOLT, WITH WASHER

90119-06827-00

Unavailable
