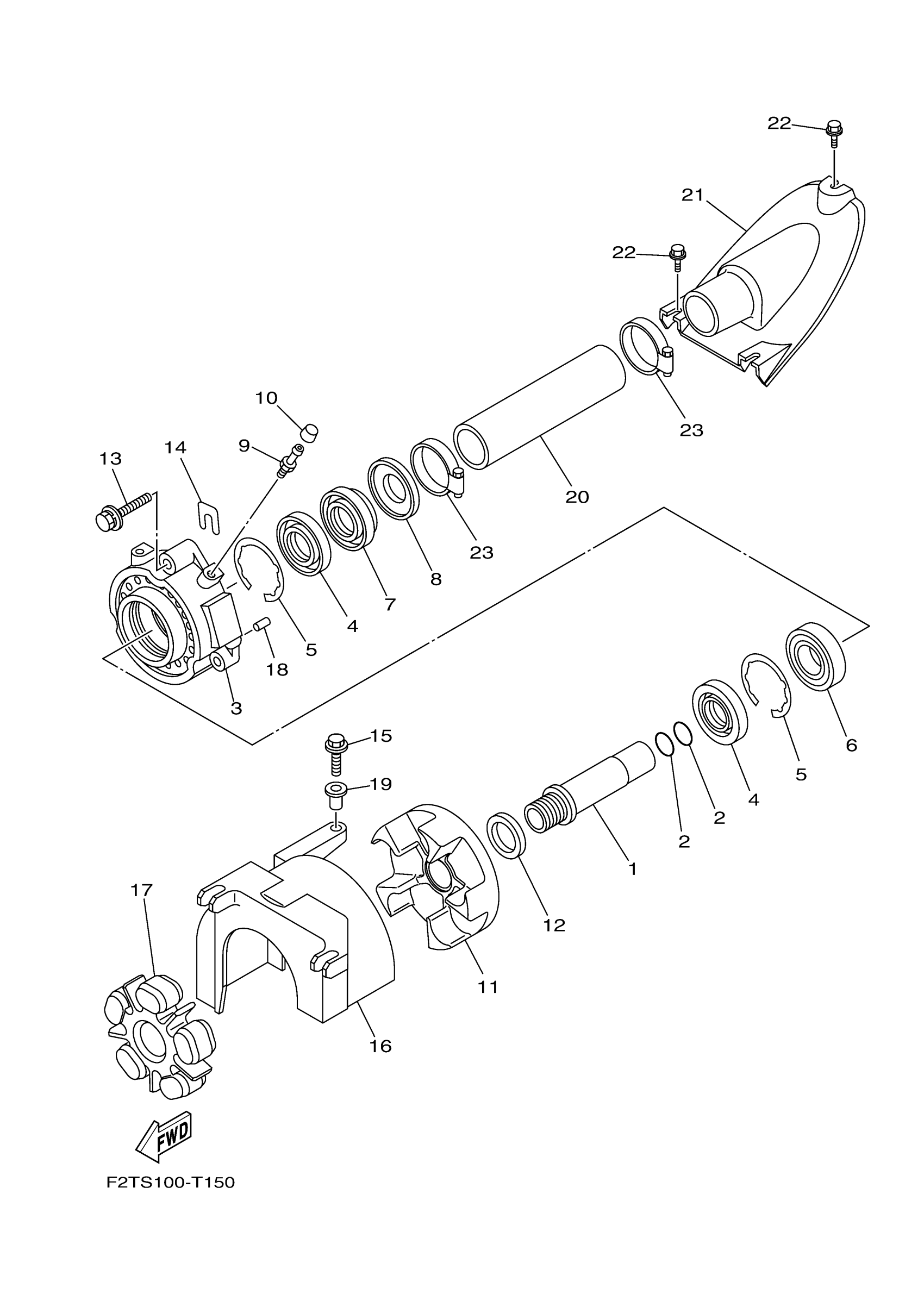

Yamaha FB1800T (FX HO) F2TU 2018 JET UNIT 2 Diagram

#

Description
Price

1

SHAFT, COUPLER

6S5-R1323-00-00

$135.84

2

O-RING(6U1)

93210-22MF1-00

$4.65

3

HOUSING, BEARING

6S5-G5332-00-00

$209.50

4

. OIL SEAL

93102-29008-00

$22.79

5

CIRCLIP(MF1)

99009-62500-00

$5.80

6

BEARING

93306-206Y8-00

$45.93

7

OIL SEAL

93102-29009-00

$51.70

8

WASHER, THRUST

6ET-45613-00-00

$23.30

9

NIPPLE, GREASE

93700-06M03-00

$7.89

10

CAP, GREASE NIPPLE

663-45119-01-00

$1.81

11

FLANGE, COUPLING 1

6S5-G5593-00-00

$45.93

12

WASHER

6ET-E2289-00-00

$4.51

13

BOLT, WITH WASHER

90119-089U1-00

$3.37

14

SHIM (0.5)

GD0-U7249-00-05

$2.16

15

BOLT, WITH WASHER

90119-06892-00

$4.01

16

COVER

6S5-R1381-01-00

$4.37

17

RUBBER SHAFT COUPL

6BH-4581J-01-00

$129.25

18

PIN, DOWEL (614)

93606-12019-00

Unavailable

19

COLLAR

90387-06289-00

Unavailable

20

PIPE 1

F2S-U883B-00-00

$16.40

21

JOINT, PIPE

F2S-U883E-00-00

$10.75

22

BOLT

90109-06832-00

$2.58

23

BAND, HOSE 52

90601-152U3-00

$5.96
