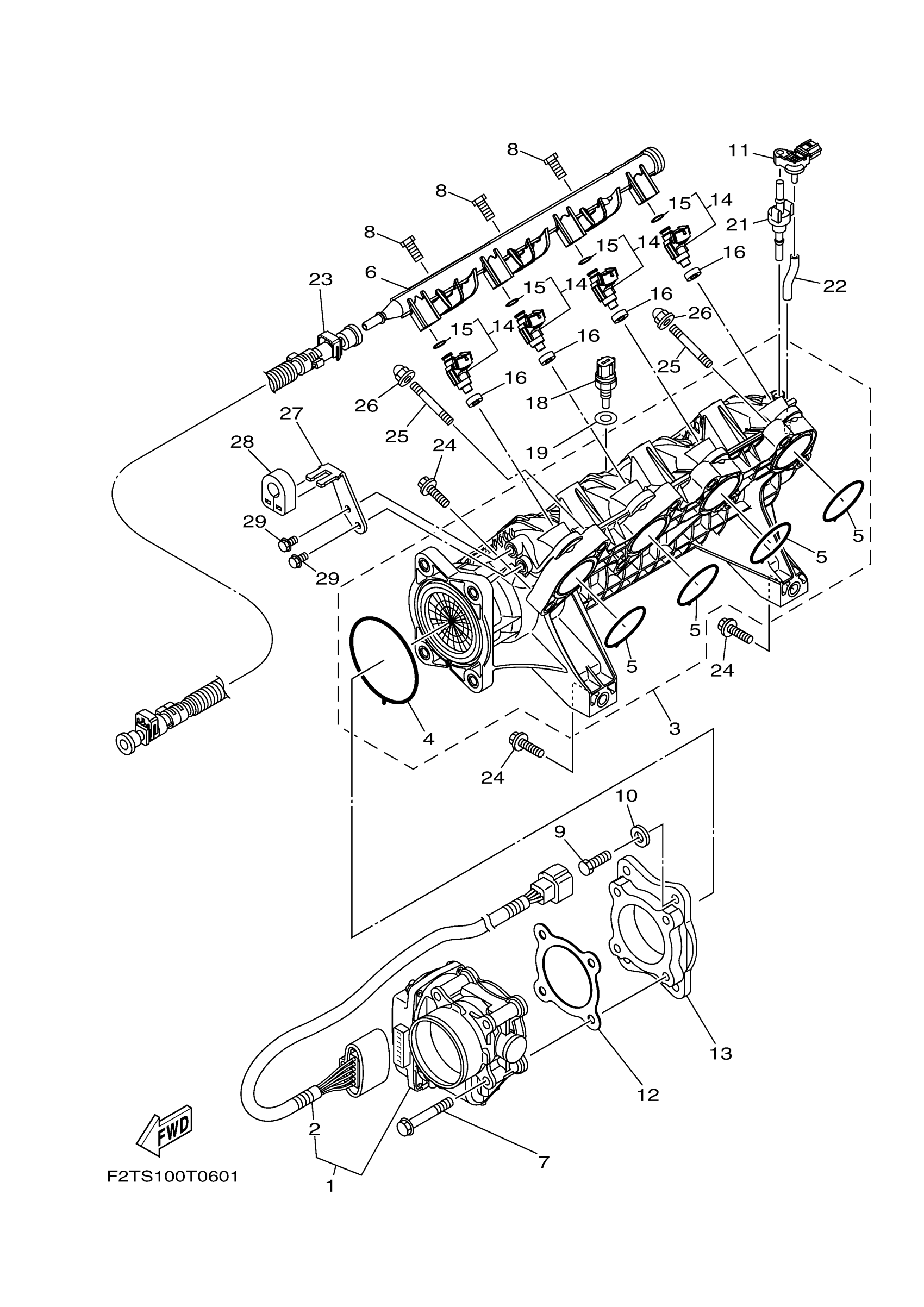

Yamaha FB1800T (FX HO) F2TU 2018 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-11-00

Unavailable

2

. WIRE, SUB LEAD

6S5-82509-00-00

$118.17

3

MANIFOLD, INTAKE 1

6BH-13641-10-00

$380.29

4

. GASKET, INSULATING

6BH-14156-00-00

$19.49

5

. GASKET

6BH-14126-00-00

$12.59

6

DELIVERY PIPE

6CS-12880-00-00

$165.14

7

BOLT, FLANGE

90105-08243-00

$1.82

8

BOLT

6CS-14446-00-00

$9.08

9

BOLT (682)

97013-08025-00

$6.34

10

.. WASHER, PLATE

92990-08600-00

$2.17

11

. SENSOR, PRESSURE

6BH-82380-00-00

$278.77

12

GASKET

6CR-14536-00-00

$8.88

13

SPACER

6CR-14163-00-00

$74.23

14

INJECTOR

6S5-13761-10-00

$175.86

15

. O-RING

68V-1416A-00-00

$10.18

16

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

18

THERMOSENSOR

65L-85886-00-00

$57.25

19

. WASHER

6S5-14285-00-00

$2.19

21

GROMMET

6BH-14445-00-00

$20.99

22

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.36

23

FUEL HOSE ASSY

6AN-2450B-10-00

$122.71

24

BOLT, WITH WASHER

97513-08535-00

$1.74

25

BOLT, STUD

90116-08032-00

$3.33

26

NUT, CROWN(4BR)

90176-08080-00

Unavailable

27

PLATE, STAY

6CR-14572-00-00

$7.27

28

GROMMET

6CS-14445-01-00

$5.45

29

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
