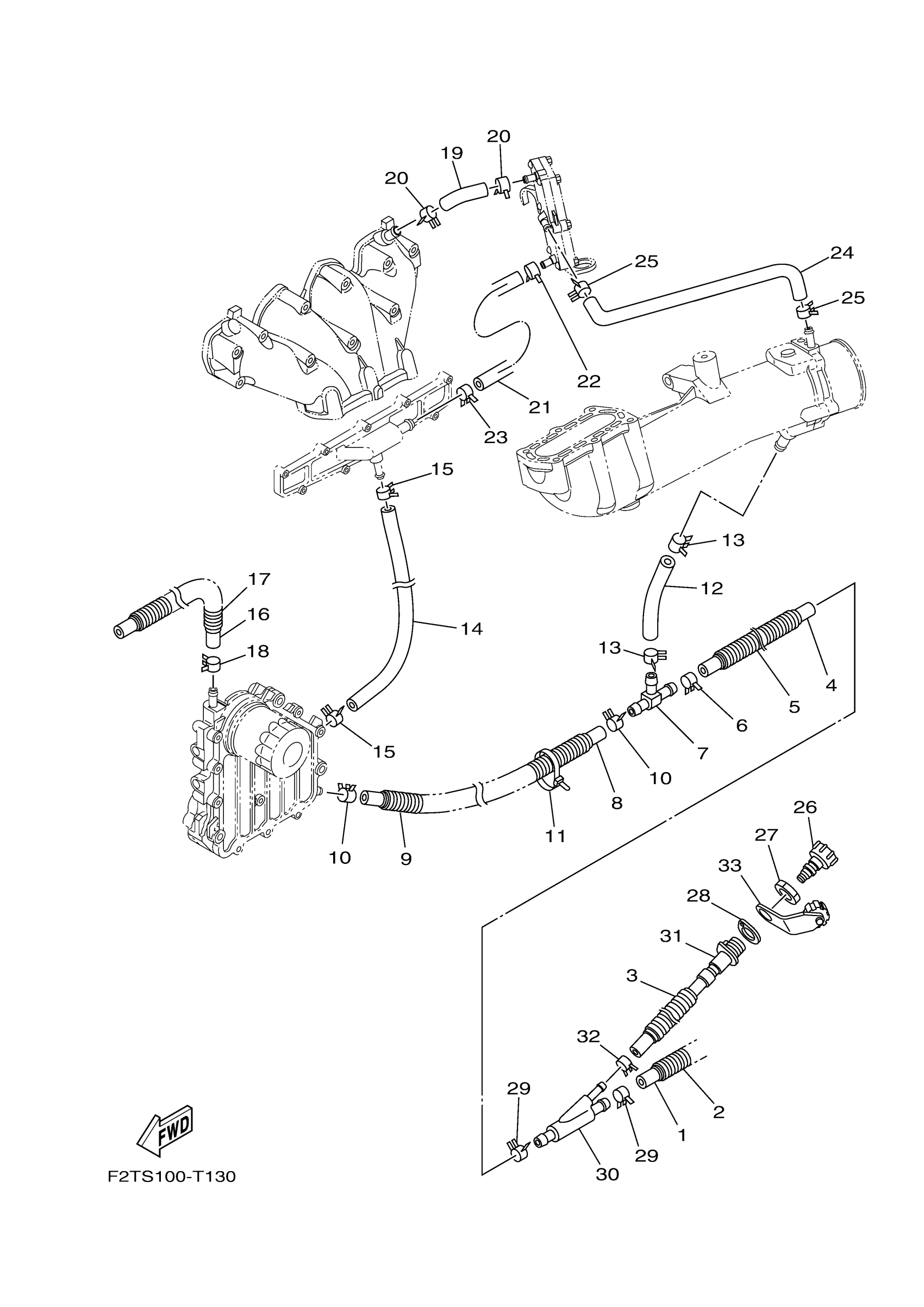

Yamaha FB1800T (FX HO) F2TU 2018 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.86

2

TUBE

F2T-U773D-20-00

Unavailable

3

TUBE (L485)

90447-19801-00

$3.56

4

HOSE 2

6S5-1243E-01-00

$22.11

5

TUBE

F2T-U773D-00-00

$1.36

6

CLIP

90467-200A3-00

$5.92

7

JOINT, HOSE 3

6BH-12584-00-00

$4.44

8

HOSE (L400)

90445-18012-00

$24.98

9

TUBE (L260)

90447-19005-00

$3.64

10

CLIP

90467-160A0-00

$2.95

11

CLAMP(3XW)

90464-35132-00

$6.77

12

HOSE 6

6S5-12589-01-00

Unavailable

13

CLIP

90467-200A3-00

$5.92

14

HOSE 5

6BH-1244H-00-00

$20.99

15

. CLIP

90467-150A1-00

$3.33

16

HOSE 5

6CS-12588-00-00

$27.99

17

TUBE (L760)

90447-19018-00

$9.08

18

CLIP

90467-160A0-00

$2.95

19

HOSE 2

6ET-12577-00-00

$7.27

20

CLIP

90467-160A0-00

$2.95

21

HOSE 4

6ET-12579-00-00

$8.32

22

CLIP

90467-160A0-00

$2.95

23

CLIP

90467-170A5-00

$4.55

24

HOSE 1

6ET-12576-00-00

$13.99

25

CLIP

90467-160A0-00

$2.95

26

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

27

NUT

EU0-61652-00-00

$11.48

28

PACKING

F2S-U7525-01-00

Unavailable

29

CLIP

90467-200A3-00

$5.92

30

JOINT, HOSE 1

60E-12581-00-00

$15.49

31

JOINT ASSY

6CS-12580-00-00

$113.62

32

CLIP

90467-150A5-00

$2.64

33

CAP,1

6EY-84385-00-00

$10.36
