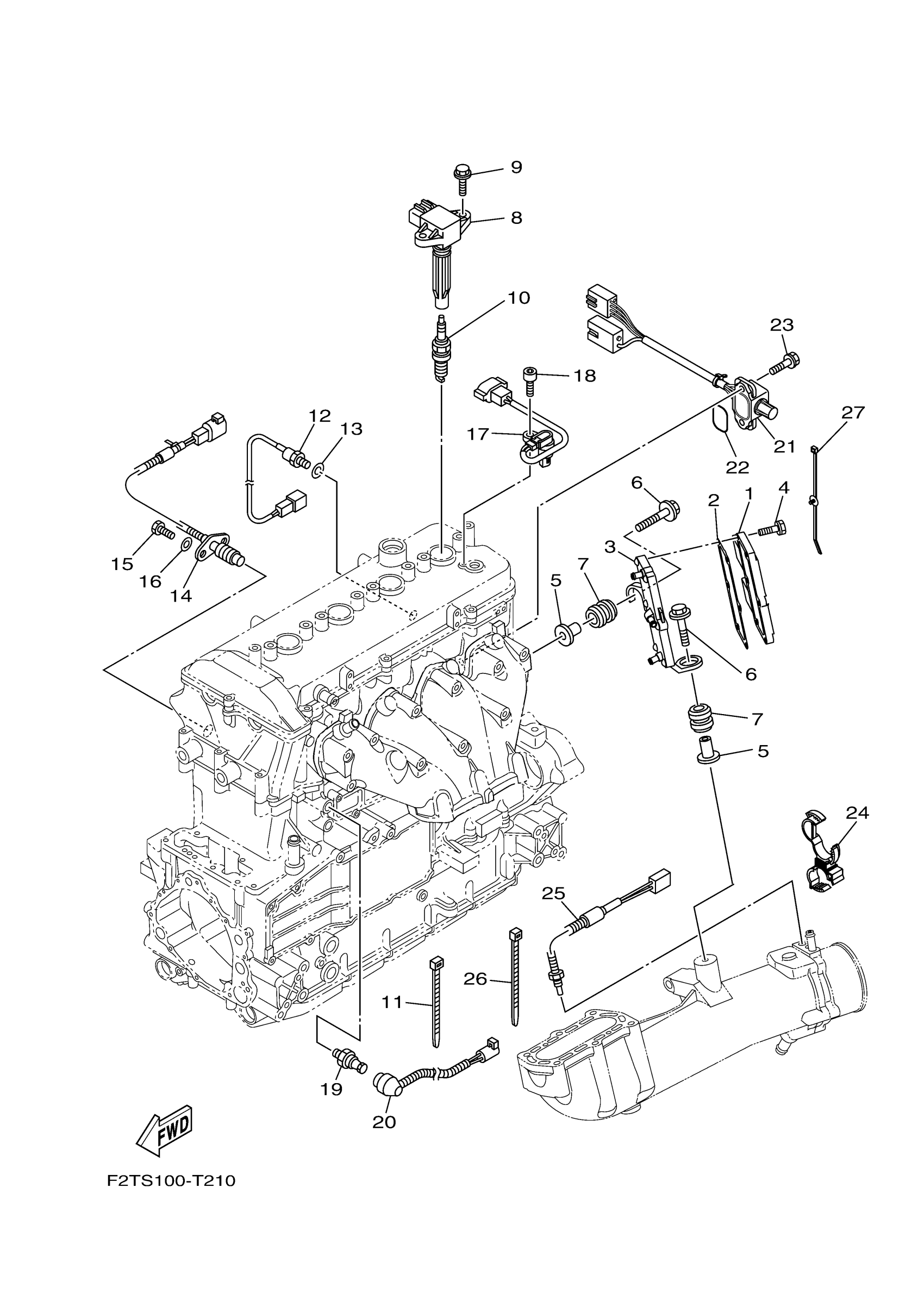

Yamaha FB1800T (FX HO) F2TU 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6EK-81960-10-00

$197.13

2

PLATE, RECTIFIER FITTING

6ET-81975-01-00

$6.36

3

COVER, RECTIFIER

6ET-81972-00-00

$116.65

4

BOLT, WITH WASHER

90119-06MA4-00

$3.26

5

COLLAR

90387-08M37-00

$9.81

6

BOLT, WITH WASHER

90119-08187-00

$3.17

7

GROMMET

90480-22M15-00

$10.18

8

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

9

BOLT,FLANGE (EW2)

90105-06903-00

$5.00

10

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

$7.43

11

CLAMP

90465-13M18-00

$1.71

12

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

13

WASHER, PLATE

92990-10600-00

$2.57

14

THERMO SWITCH ASSY

6CR-82560-00-00

$72.41

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

SENSOR, CAM POSITION

60E-85896-02-00

$159.08

18

BOLT,SOCKET

91380-06016-00

Unavailable

19

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

20

LEAD WIRE ASSY

6S5-81315-01-00

$51.50

21

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

22

O-RING (341)

93210-32172-00

Unavailable

23

BOLT, WITH WASHER

90119-06MA3-00

$2.80

24

CLAMP

90464-20008-00

Unavailable

25

THERMOSENSOR ASSY

6AA-85790-00-00

$104.60

26

CLAMP

90464-20005-00

$2.11

27

CLAMP

90464-31002-00

Unavailable
