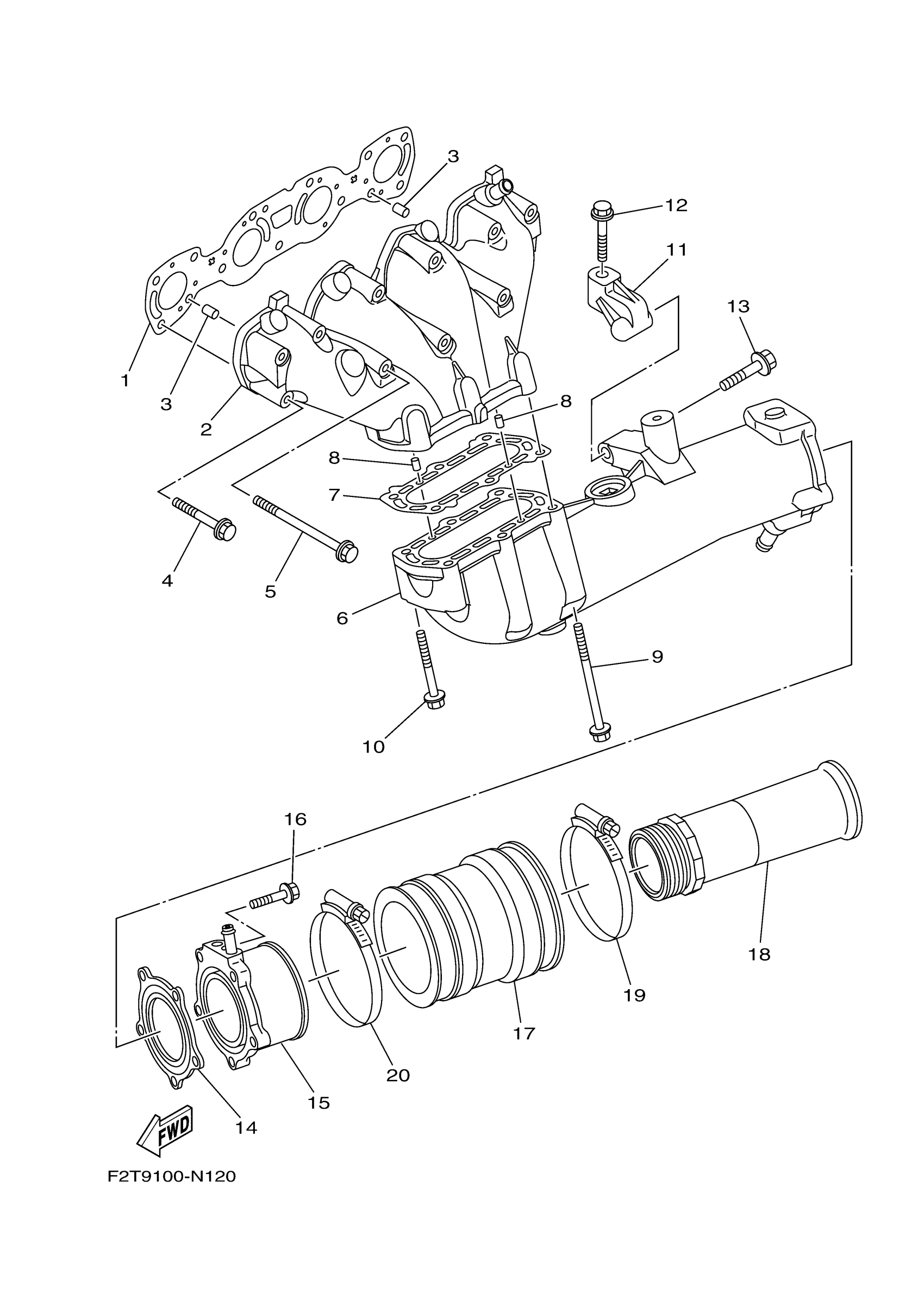

Yamaha FB1800R (FX HO) F2TK 2016 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6BH-14613-00-00

$40.27

2

MUFFLER 1

6BH-14711-10-00

$807.45

3

PIN, DOWEL

93608-16M16-00

$2.41

4

BOLT, WITH WASHER

90119-08034-00

$3.41

5

BOLT, WITH WASHER

90119-08097-00

$5.31

6

MUFFLER 2

6BH-14721-11-00

$877.60

7

. GASKET, MUFFLER DAMPER 1

6S5-14739-00-00

$22.79

8

PIN, DOWEL (614)

93606-12019-00

$3.50

9

BOLT, WITH WASHER

90119-08097-00

$5.31

10

BOLT, WITH WASHER

90119-08034-00

$3.41

11

STAY, MUFFLER 1

6S5-14771-00-00

$74.61

12

BOLT, WITH WASHER

90119-08096-00

$4.93

13

BOLT, WITH WASHER

90119-10076-00

$3.88

14

. GASKET, MUFFLER DAMPER 2

6BH-14749-00-00

$18.23

15

PIPE, TAIL

6BH-14784-01-00

$180.58

16

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

17

PIPE, OUTLET

6S5-E4752-01-00

Unavailable

18

PIPE 1

6CS-1475A-00-00

$202.97

19

HOSE CLAMP ASSY

90450-99016-00

$15.95

20

HOSE CLAMP ASSY

90450-99015-00

$14.81
