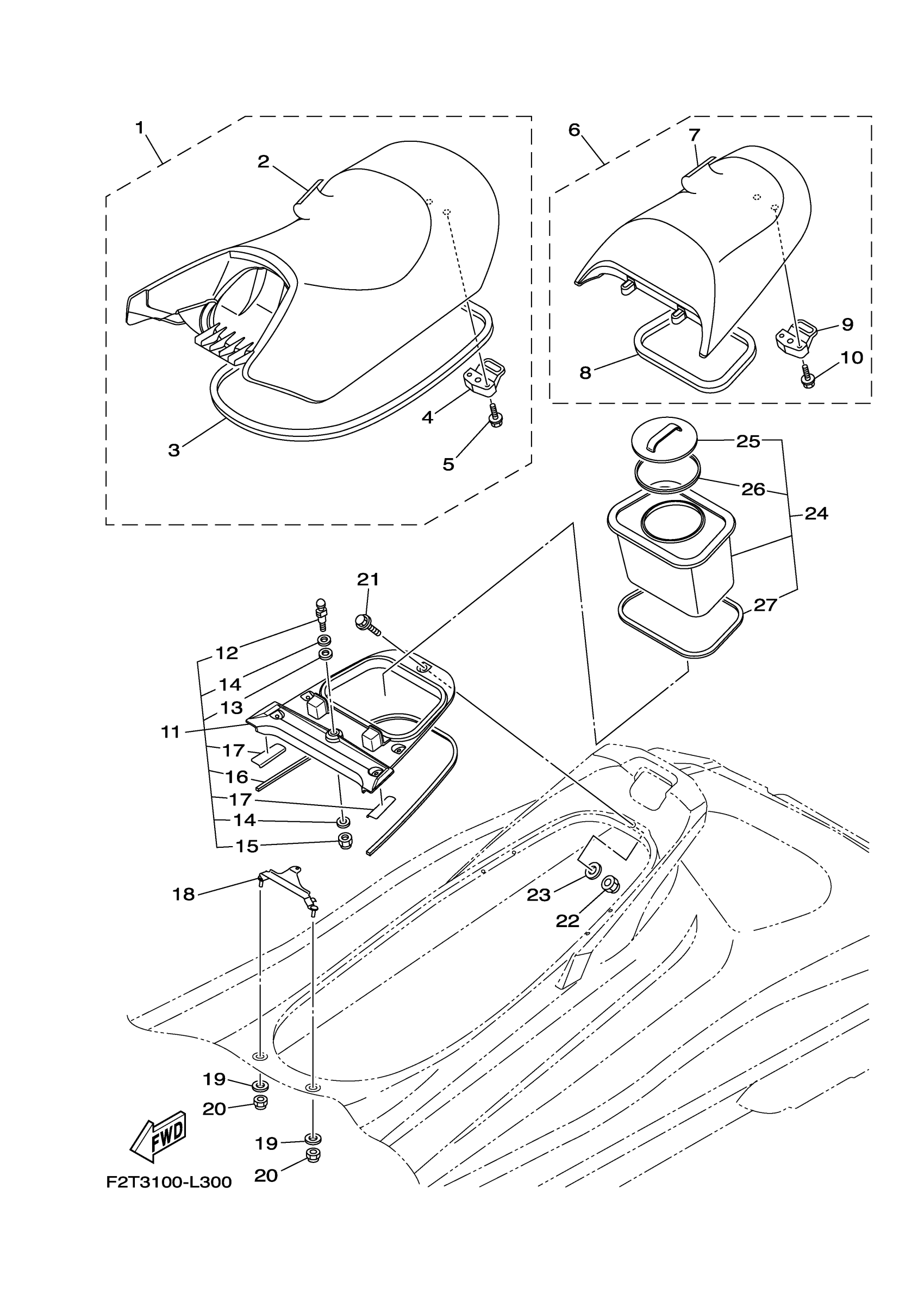

Yamaha FB1800L (FX HO) F2T3 2012 SEAT & UNDER LOCKER Diagram

#

Description

Price

1

DOUBLE SEAT ASSY

F2S-U371A-10-00

Unavailable

2

. COVER, SEAT 1

F2S-U371B-10-00

Unavailable

3

. PACKING

F1W-U2664-01-00

Unavailable

4

. SEAT LOCK ASSY

F2C-U3850-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

SINGLE SEAT ASSY

F2S-U372A-10-00

Unavailable

7

. COVER, SEAT

F2S-U372B-10-00

Unavailable

8

PACKING 5

F2C-U266D-01-00

Unavailable

9

. SEAT LOCK ASSY

F2C-U3850-00-00

Unavailable

10

BOLT, WITH WASHER

90119-06808-00

Unavailable

11

DECK BEAM ASSY

F2S-U890L-05-00

Unavailable

12

PIN

GH1-U3774-00-00

Unavailable

13

WASHER, PLATE

90201-109U6-00

Unavailable

14

WASHER

9299R-10200-00

Unavailable

15

NUT, NYLON

9572R-10300-00

Unavailable

16

. PACKING 1

F2S-U375E-00-00

Unavailable

17

. PACKING

F2S-U8244-00-00

Unavailable

18

STAY, SEAT 1

F2C-U378C-00-00

Unavailable

19

WASHER, PLATE

90201-099U3-00

Unavailable

20

NUT, NYLON (6J8)

95780-08300-00

Unavailable

21

BOLT, WITH WASHER

90119-08828-00

Unavailable

22

NUT, NYLON (6J8)

95780-08300-00

Unavailable

23

WASHER

9299R-08200-00

Unavailable

24

CASE,ASSY 1

F2C-U591A-03-00

Unavailable

25

. CAP,CASE

F2C-U591C-00-00

Unavailable

26

. PACKING,CASE

F2C-U591D-01-00

Unavailable

27

. PACKING,6

F2C-U266E-00-00

Unavailable
