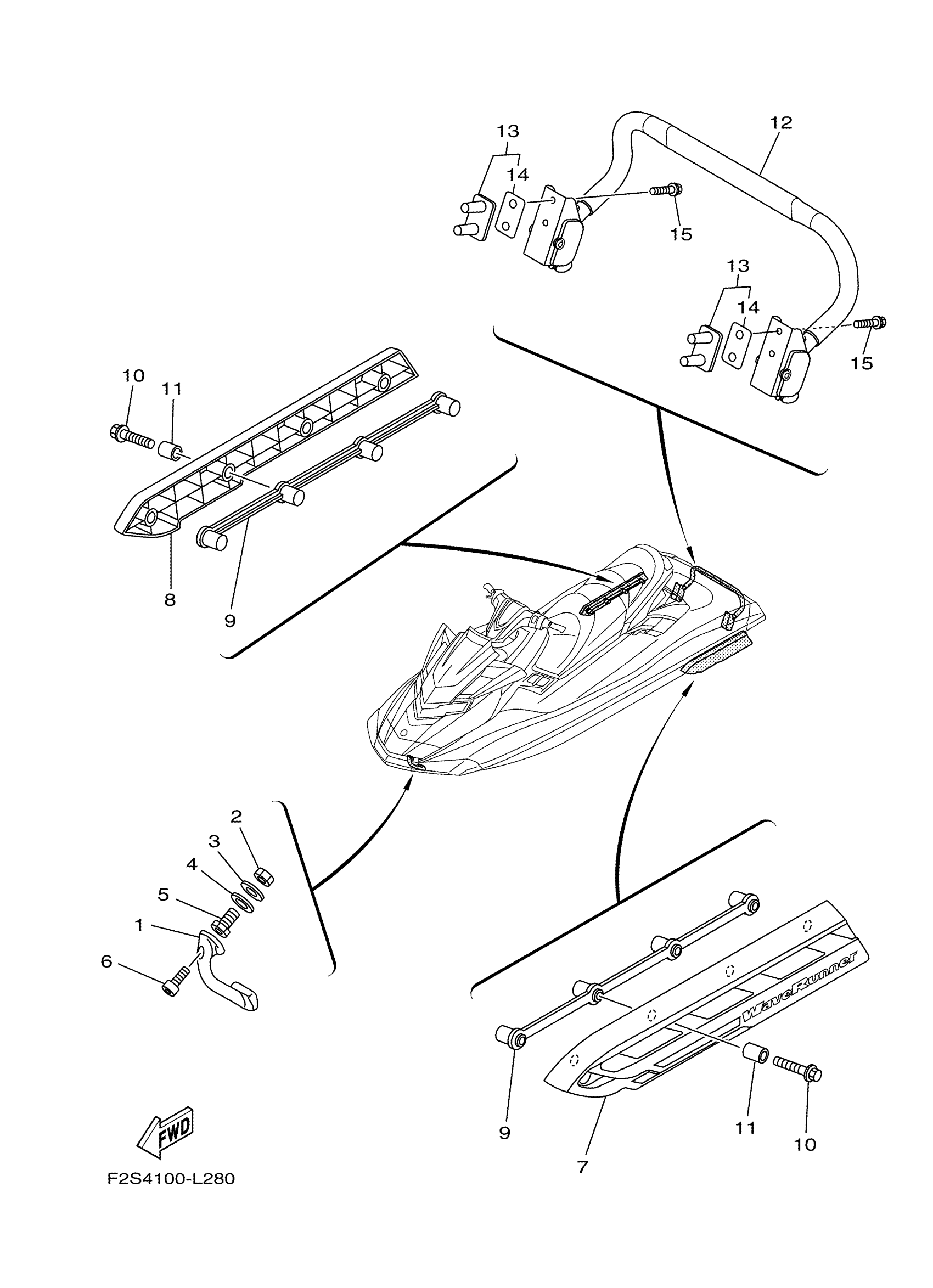

Yamaha FB1800L (FX HO) F2T3 2012 HULL & DECK 2 Diagram

#

Description
Price

1

BOW EYE 1

F1K-61624-00-00

$43.69

2

NUT.HEX.(COARS)

99780-12600-00

$3.09

3

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

4

WASHER

F0X-61637-00-00

$1.32

5

NUT

F0X-61652-01-00

$11.75

6

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.09

7

SPONSON LH

F2S-U883N-02-00

$53.13

8

SPONSON RH

F2S-U883P-02-00

$40.19

9

BRACKET,STABILIZER

F2S-U883T-00-00

$27.19

10

BOLT,WASHER BASED

90105-088F9-00

Unavailable

11

SPACER

F2N-U8169-10-00

Unavailable

12

LADDER, STEP ASSY

F2S-U278A-01-00

$223.51

13

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

14

PACKING, BRKT. 1

F2S-U278H-01-00

$5.08

15

BOLT, WITH WASHER

90119-08844-00

$1.37
