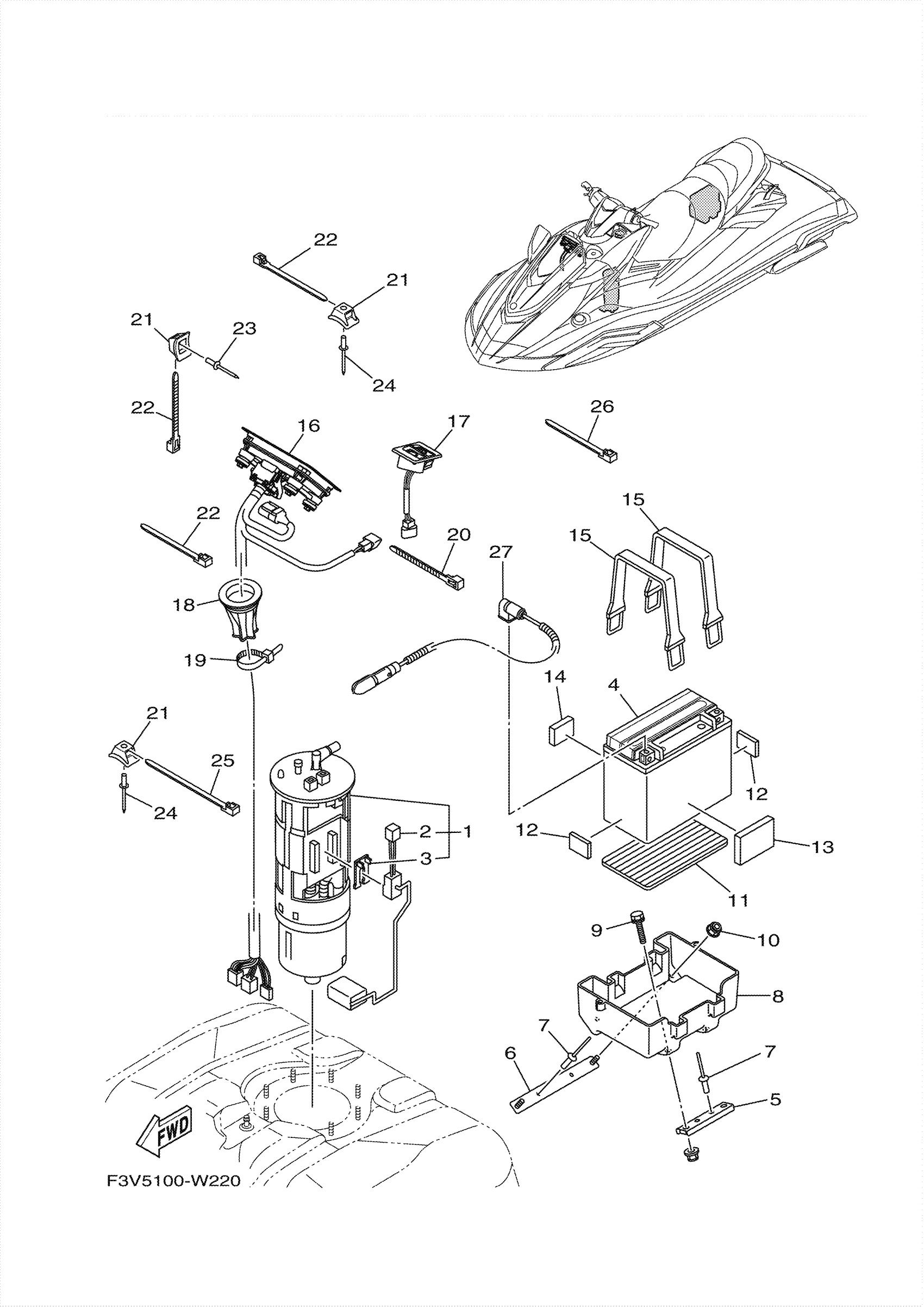

Yamaha FB1800AW (FX CRUISER HO) F3V5 2021 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$161.51

5

PLATE, BASE 2

F2S-U8592-00-00

$5.75

6

PLATE, BASE 3

F2S-U8593-00-00

$5.37

7

RIVET (EU0)

90267-48938-00

$4.72

8

CASE, BATTERY

F2S-U8211-00-00

$10.07

9

BOLT, WITH WASHER

90119-06820-00

$3.65

10

NUT, LOCK

F2N-U142L-00-00

$1.00

11

PAD, BATTERY

F1S-U8221-00-00

$2.88

12

PAD, BATTERY

EU0-U8221-31-00

$1.80

13

MAT 2

F1W-U759C-01-00

$2.46

14

PACKING

F2C-U1743-00-00

$2.00

15

BAND, BATTERY 1

F4P-U821D-00-00

$12.91

16

METER ASSY

F3X-U822A-09-00

Unavailable

17

SWITCH ASSY.

F3X-68090-00-00

$149.24

18

GROMMET

F3J-U822E-01-00

$5.87

19

CLAMP

90464-32801-00

$1.29

20

CLAMP

90464-32801-00

$1.29

21

BASE, CLAMP

F1W-U828M-00-00

$1.29

22

CLAMP

90464-32801-00

$1.29

23

RIVET, BLIND

90267-48806-00

$2.16

24

RIVET, BLIND

90267-48806-00

$2.16

25

CLAMP

90464-99804-00

$4.10

26

CLAMP

90464-32801-00

$1.29

27

WIRE, MINUS LEAD

6JP-82116-00-00

$64.16
