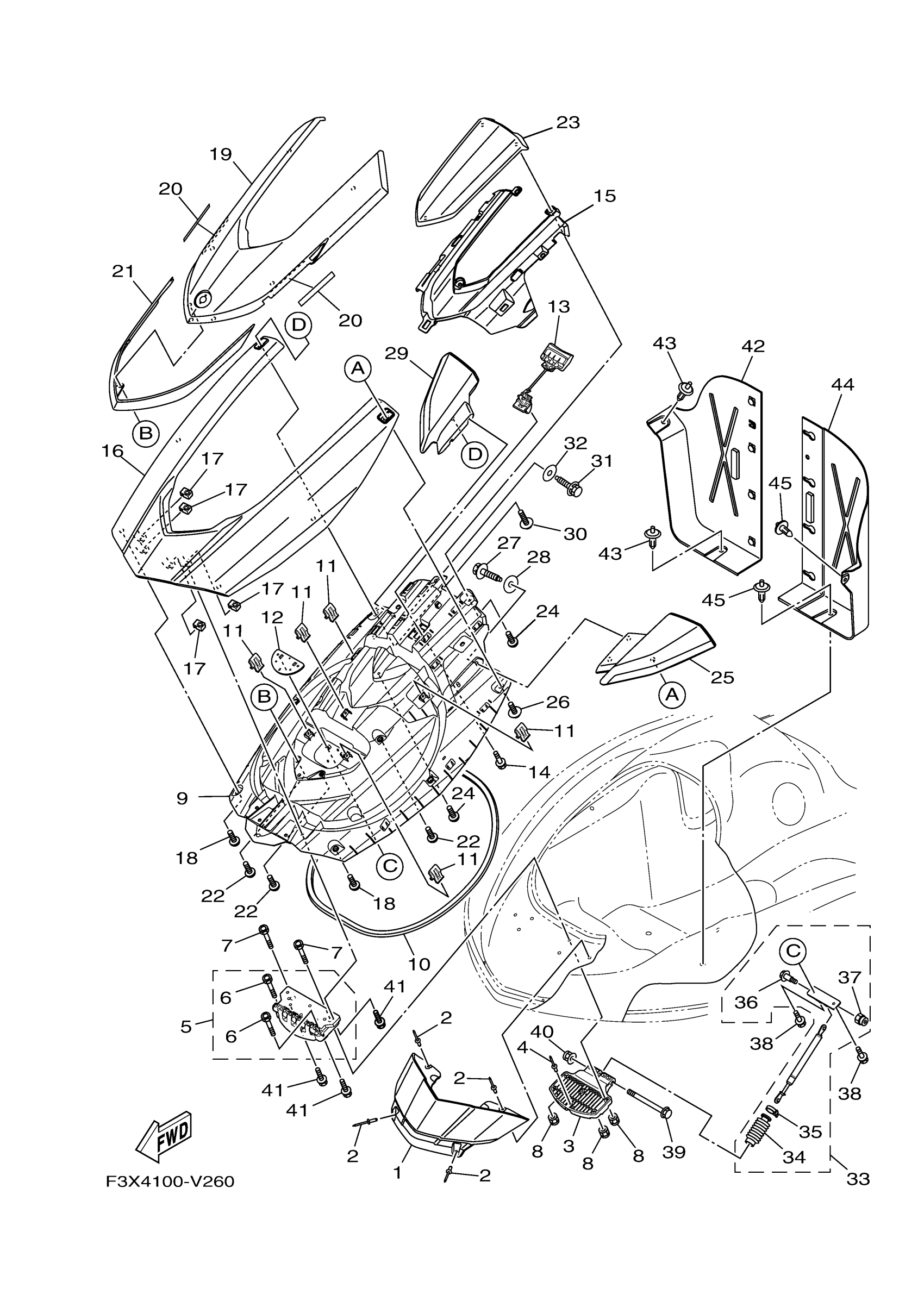

Yamaha FB1800AV (FX CRUISER HO) F3V3 2020 ENGINE HATCH 2 Diagram

#

Description
Price

1

COVER, FRONT

F3X-U513M-02-P0

Unavailable

1

COVER, FRONT

F3X-U513M-02-P3

$99.98

2

RIVET, BLIND

90267-489U6-00

$1.37

3

PLATE, HINGE LID

F3X-U518E-00-00

$21.95

4

RIVET, BLIND

90267-489U6-00

$1.37

5

HINGE, LID

F3X-U517D-01-00

$28.77

6

BOLT

F3X-U3222-00-00

$0.72

7

BOLT

F3X-U3222-00-00

$0.72

8

NUT, LOCK

F2N-U142L-00-00

$1.00

9

INNER, ENGINE HATCH

F3X-U519G-00-00

$76.31

10

PACKING 1

F3X-U2663-10-00

Unavailable

11

CLIP

F3Y-U153K-00-00

$1.29

12

PLATE, HATCH

F3X-U5148-00-00

$7.35

13

LOCK, LID

F3X-U517C-00-00

$27.27

14

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

15

OUTER, ENGINE HATCH

F3X-U519F-00-00

$29.53

16

LID, ENGINE ROOM (PURW)

F3X-U517B-00-P0

$371.20

16

LID, ENGINE ROOM (LNMP)

F3X-U517B-00-P3

$371.20

17

NUT

F3X-U517E-00-00

$1.23

18

SCREW

F2S-U13C1-00-00

$2.36

19

VISOR

F3X-U515N-01-P4

Unavailable

19

VISOR

F3X-U515N-01-P5

Unavailable

20

DAMPER 2

F0X-U515E-02-00

Unavailable

21

ORNAMENT, CENTER

F3X-U517V-10-00

$31.80

21

ORNAMENT, CENTER

F3X-U517V-60-00

$92.41

22

SCREW

F2S-U13C1-00-00

$2.36

23

VISOR, 2

F3X-U515P-00-00

$17.94

23

VISOR, 2

F3X-U515P-40-00

$90.89

24

SCREW

F2S-U13C1-00-00

$2.36

25

MIRROR ASSY. 1

F3X-U590D-20-00

$121.20

25

MIRROR ASSY. 1

F3X-U590D-A0-00

$115.14

26

SCREW

F3X-U7823-12-00

$1.25

27

BOLT, WITH WASHER

90119-06880-00

$3.52

28

WASHER, PLATE

90201-068G0-00

$0.93

29

MIRROR ASSY. 2

F3X-U590E-20-00

$121.20

29

MIRROR ASSY. 2

F3X-U590E-A0-00

$127.26

30

SCREW

F3X-U7823-12-00

$1.25

31

BOLT, WITH WASHER

90119-06880-00

$3.52

32

WASHER, PLATE

90201-068G0-00

$0.93

33

DAMPER ASSY

F2S-6514S-00-00

$259.08

34

. COVER, DAMPER

F1W-6514T-00-00

$23.99

35

BAND

1UA-82591-00-00

Unavailable

36

BOLT

90109-06218-00

$10.49

37

NUT, SELF-LOCKING

95720-06300-00

$1.82

38

BOLT, WITH WASHER

90119-06830-00

Unavailable

39

BOLT, SPECIAL

F3X-U491K-00-00

$2.27

40

NUT, LOCK

F3Y-U142L-00-00

$2.52

41

BOLT, WITH WASHER

90119-06896-00

$5.03

42

LOCKER,BOW

F3X-U475B-00-00

$23.47

43

RIVET

90269-08801-00

$0.83

44

PLATE, LOKER BOW

F3X-U475F-00-00

$23.47

45

RIVET

90269-08801-00

$0.83
