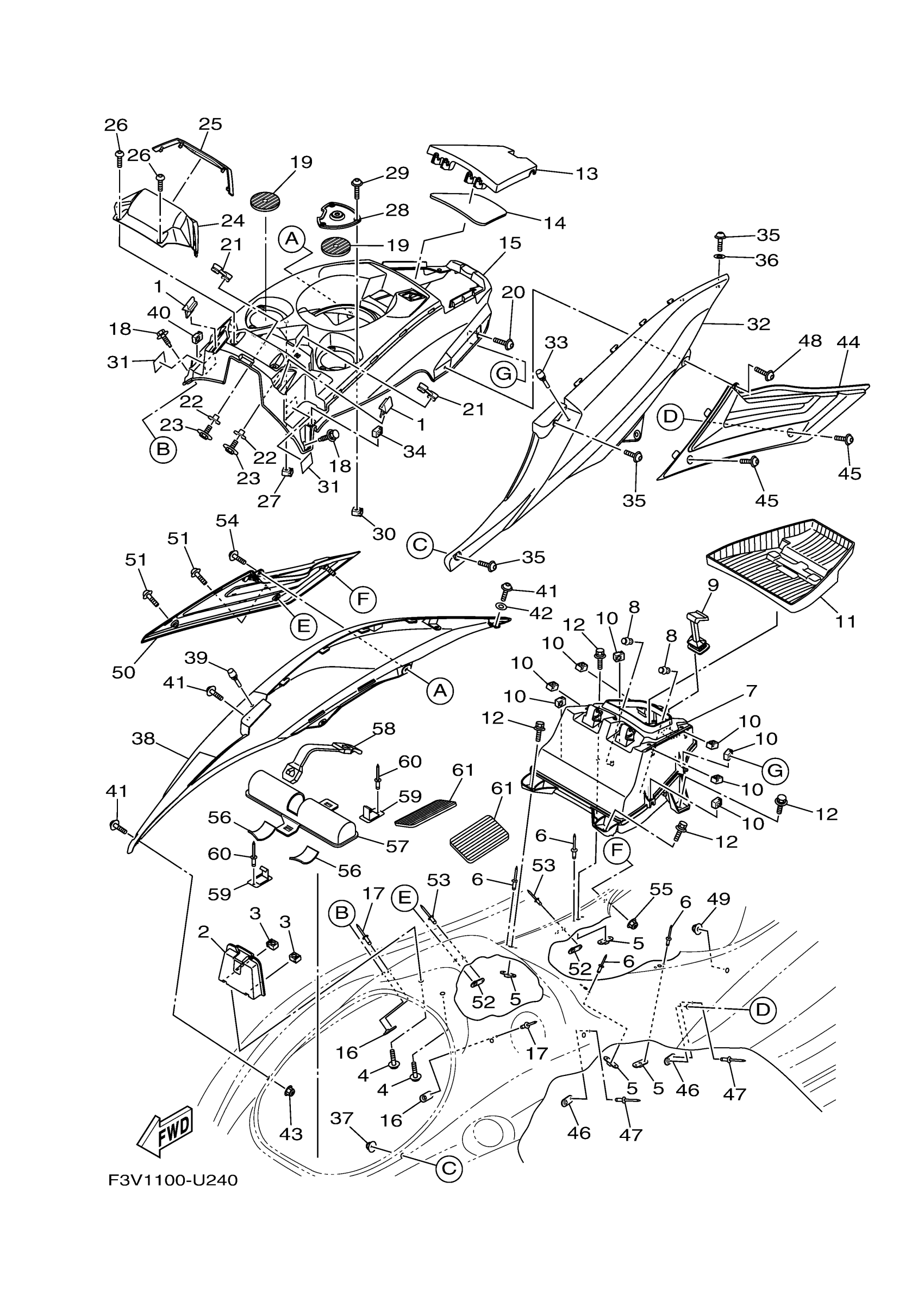

Yamaha FB1800AU (FX CRUISER HO) F3V1 2019 ENGINE HATCH 1 Diagram

#

Description
Price

1

PACKING 4

F1K-U266C-10-00

$2.27

2

HOOK,LID LOCK

F3X-U517F-00-00

$12.86

3

NUT

F3X-U517E-00-00

$1.23

4

BOLT, WITH WASHER

90119-06880-00

$3.52

5

BRACKET

F2C-U826C-00-00

$3.79

6

RIVET, BLIND

90267-489U2-00

$1.43

7

BOX GLOVE

F3X-U516P-00-00

$87.86

8

. SEAL

F3X-U2723-00-00

$2.16

9

LOCK

F3X-U2875-01-00

$13.62

10

NUT

F3X-U517E-00-00

$1.23

11

INNER, CASE

F3X-U591L-00-00

$37.86

12

BOLT, WITH WASHER

90119-08828-00

$2.30

13

LID HATCH

F3X-U517H-00-00

$17.77

14

PACKING CASE

F3X-U519D-01-00

$11.35

15

COVER,CENTER

F3X-U5554-01-00

$292.41

16

PLATE, FIX

F2X-U5175-00-00

$1.80

17

RIVET (EU0)

90267-48938-00

$5.00

18

BOLT,WITH WASHER

90119-068B8-00

$28.70

19

MAT

F3X-U3844-00-00

$2.12

20

SCREW

F3X-U7823-12-00

$1.25

21

GROMMET

F3X-U1338-00-00

$1.67

22

COLLAR

F3X-U151R-00-00

$1.14

23

BOLT

F3X-U1355-00-00

$0.83

24

COVER METER

F3X-U8262-00-00

$15.14

25

ORNAMENT, METER

F3X-U826F-00-00

$31.80

26

SCREW

F2S-U13C1-00-00

$2.36

27

NUT

F3X-U517E-00-00

$1.23

28

FIX, PLATE

F3X-UE175-00-00

$9.62

29

SCREW

F3X-U7823-12-00

$1.25

30

NUT

F3X-U517E-00-00

$1.23

31

PACKING

F2C-U1743-00-00

$1.87

32

COVER,SIDE 1 (PURW)

F3X-U377B-00-P0

$148.47

32

COVER,SIDE 1 (DNMC)

F3X-U377B-00-P1

$148.47

33

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

34

NUT

F3X-U517E-00-00

$1.23

35

SCREW

F3X-U7823-12-00

$1.25

36

WASHER, PLATE

90201-06805-00

$0.61

37

NUT, LOCK

F2N-U142L-00-00

$1.00

38

COVER,SIDE 2 (PURW)

F3X-U377C-00-P0

$148.47

38

COVER,SIDE 2 (DNMC)

F3X-U377C-00-P1

$148.47

39

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

40

NUT

F3X-U517E-00-00

$1.23

41

SCREW

F3X-U7823-12-00

$1.25

42

WASHER, PLATE

90201-06805-00

$0.61

43

NUT, LOCK

F2N-U142L-00-00

$1.00

44

SIDE ORNAMENT ASSY 1

F3X-U370J-10-00

$59.08

44

SIDE ORNAMENT ASSY 1

F3X-U370J-20-00

$57.56

45

SCREW

F3X-U7823-02-00

$1.37

46

PLATE, FIX

F2X-U5175-00-00

$1.80

47

RIVET, BLIND

90267-48802-00

$1.98

48

SCREW

F3X-U7823-12-00

$1.25

49

NUT, LOCK

F2N-U142L-00-00

$1.00

50

SIDE ORNAMENT ASSY 2

F3X-U370K-10-00

$59.08

50

SIDE ORNAMENT ASSY 2

F3X-U370K-20-00

$57.56

51

SCREW

F3X-U7823-02-00

$1.37

52

PLATE, FIX

F2X-U5175-00-00

$1.80

53

RIVET, BLIND

90267-48802-00

$1.98

54

SCREW

F3X-U7823-12-00

$1.25

55

NUT, LOCK

F2N-U142L-00-00

$1.00

56

MAT 2

F1K-U759C-00-00

$1.72

57

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

58

BAND 1

F2P-U828K-00-00

$5.87

59

HOOK A

F1K-U5772-04-00

$6.29

60

RIVET (EU0)

90267-48938-00

$5.00

61

PAD, BATTERY

F1S-U8221-00-00

$2.75
