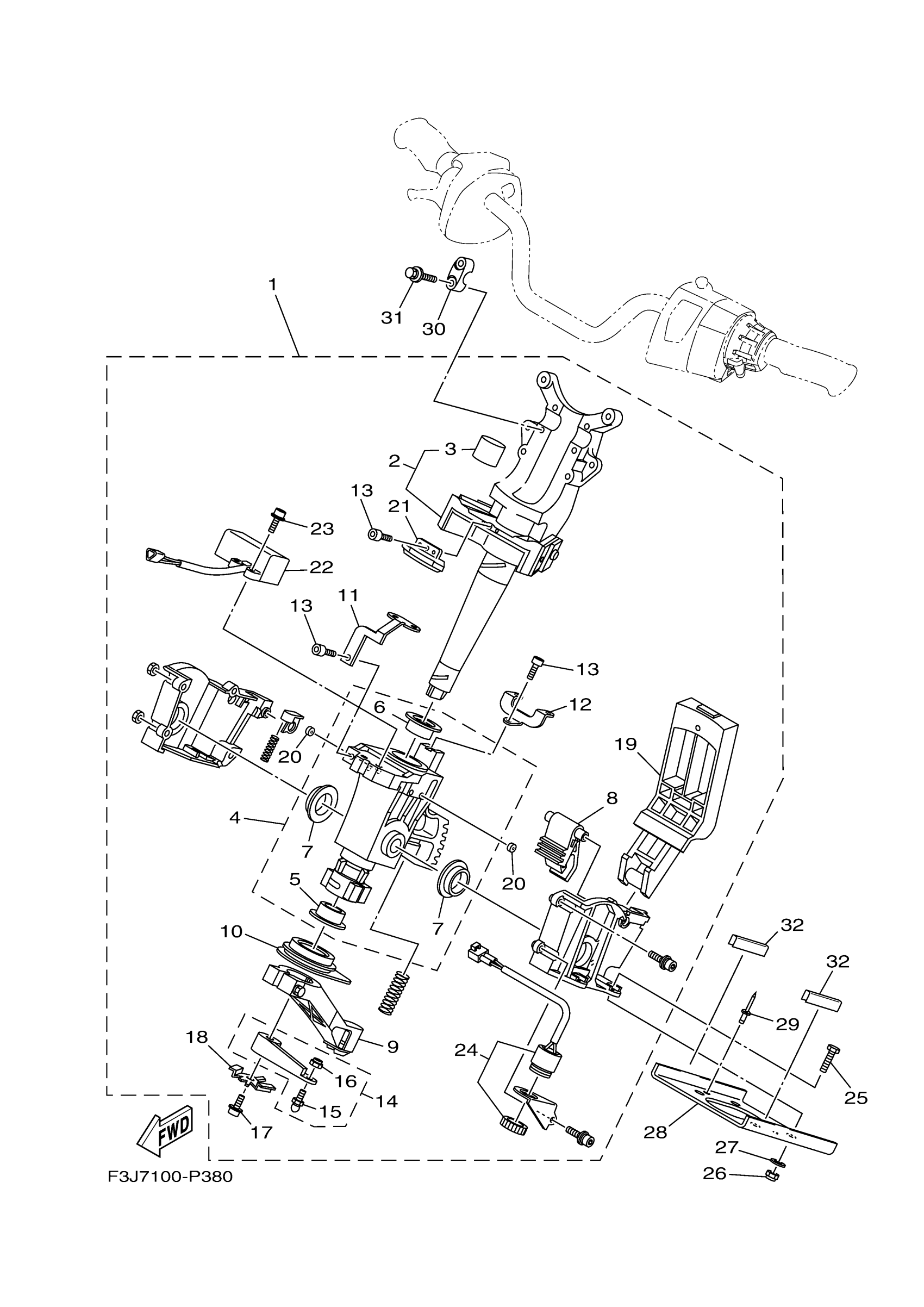

Yamaha FB1800AT (FX CRUISER HO) F2TS 2018 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER ASSY

F3J-61400-00-00

Unavailable

2

. SHAFT ASSY

F3J-67410-00-00

$222.37

3

.. PIPE, SEAL

F1W-61435-00-00

$15.66

4

. TUBE & BUSHING SET

F1W-6773D-00-00

$298.49

5

.. BUSH

F1S-6134M-00-00

$10.43

6

. BUSH

F2C-6134M-00-00

$10.99

7

.. BUSH

F1S-6134M-10-00

$10.43

8

. LOCK 1

F1S-61782-00-00

$55.21

9

. CABLE STOPPER ASSY

F1S-6146A-00-00

$128.34

10

. SEAL, RUBBER

F1S-6143C-00-00

$34.31

11

. STAY 1

F3J-65938-00-00

$14.16

12

. STAY 2

F3J-65939-00-00

$8.19

13

SCREW

F1B-613C1-10-00

Unavailable

14

ARM ASSY.

F1S-6153R-02-00

$89.54

15

STUD, JOINT BALL

EU0-61461-02-00

$14.16

16

NUT, SELF-LOCKING

95720-06300-00

$1.72

17

BOLT

F1W-61355-10-00

Unavailable

18

. PLATE, RETAINING

F1W-6142B-00-00

$18.49

19

. LEVER ASSY

F2S-6151M-00-00

$52.22

20

. PLUG

F1W-6358B-00-00

$19.39

21

MAGNET

F3J-6838C-01-00

$26.10

22

SENSOR, MAGNET

F3J-6838B-01-00

$207.45

23

BOLT

F1W-61516-10-00

Unavailable

24

BUZZER

F1S-68341-00-00

$111.93

25

BOLT (62K)

97095-08035-00

Unavailable

26

NUT, LOCK

F3Y-U142L-00-00

$2.66

27

WASHER

F1W-U725E-00-00

$11.18

28

PLATE, RETAINING

F1X-U1554-00-00

$53.72

29

RIVET, BLIND

90267-489U6-00

Unavailable

30

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

31

BOLT, WITH WASHER

90119-089U1-00

$3.37

32

TRIM

F2S-U5162-00-00

$1.49
