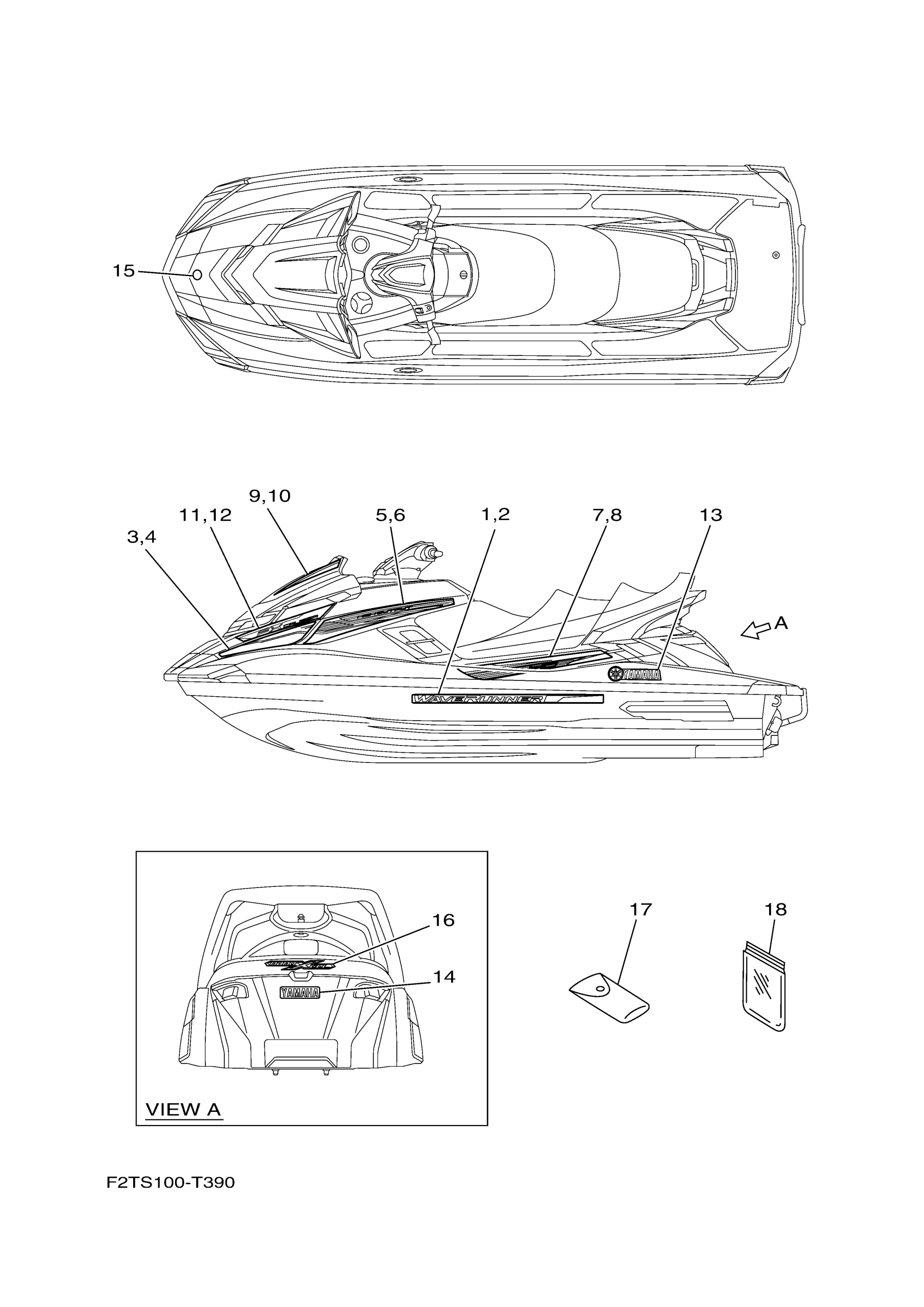

Yamaha FB1800AT (FX CRUISER HO) F2TS 2018 GRAPHICS Diagram
#
1
GRAPHIC 1 (LH)
F2T-U417B-K0-00
Unavailable
1
GRAPHIC 1 (LH)
F2T-U417B-L0-00
Unavailable
2
GRAPHIC 2 (RH)
F2T-U417C-K0-00
Unavailable
2
GRAPHIC 2 (RH)
F2T-U417C-L0-00
Unavailable
3
GRAPHIC 3 (LH)
F2T-U417D-K0-00
Unavailable
3
GRAPHIC 3 (LH)
F2T-U417D-L0-00
Unavailable
4
GRAPHIC 4 (RH)
F2T-U417E-K0-00
Unavailable
4
GRAPHIC 4 (RH)
F2T-U417E-L0-00
Unavailable
5
GRAPHIC 5 (LH)
F2T-U417F-K0-00
Unavailable
5
GRAPHIC 5 (LH)
F2T-U417F-L0-00
Unavailable
6
GRAPHIC 6 (RH)
F2T-U417G-K0-00
Unavailable
6
GRAPHIC 6 (RH)
F2T-U417G-L0-00
Unavailable
7
GRAPHIC 7 (LH)
F2T-U417H-K0-00
Unavailable
7
GRAPHIC 7 (LH)
F2T-U417H-L0-00
Unavailable
8
GRAPHIC 8 (RH)
F2T-U417J-K0-00
Unavailable
8
GRAPHIC 8 (RH)
F2T-U417J-L0-00
Unavailable
9
GRAPHIC 9 (LH)
F2T-U417K-K0-00
Unavailable
9
GRAPHIC 9 (LH)
F2T-U417K-L0-00
Unavailable
10
GRAPHIC B (RH)
F2T-U417L-K0-00
Unavailable
10
GRAPHIC B (RH)
F2T-U417L-L0-00
Unavailable
11
GRAPHIC C (LH)
F2T-U417M-K0-00
Unavailable
11
GRAPHIC C (LH)
F2T-U417M-L0-00
Unavailable
12
GRAPHIC D (RH)
F2T-U417N-K0-00
Unavailable
12
GRAPHIC D (RH)
F2T-U417N-L0-00
Unavailable
13
MARK,YAMAHA 3
F3J-U4116-02-00
Unavailable
14
EMBLEM, YAMAHA
F1B-U411C-02-00
Unavailable
14
MARK, YAMAHA A
F2P-U4114-10-00
Unavailable
15
EMBLEM, TUNING FORK
F3Y-U411H-02-00
Unavailable
16
EMBLEM A
F1W-U4121-00-00
Unavailable
17
TOOL SET
F1B-65986-13-00
Unavailable
18
BAG, VINYL
EU0-65901-03-00
Unavailable
