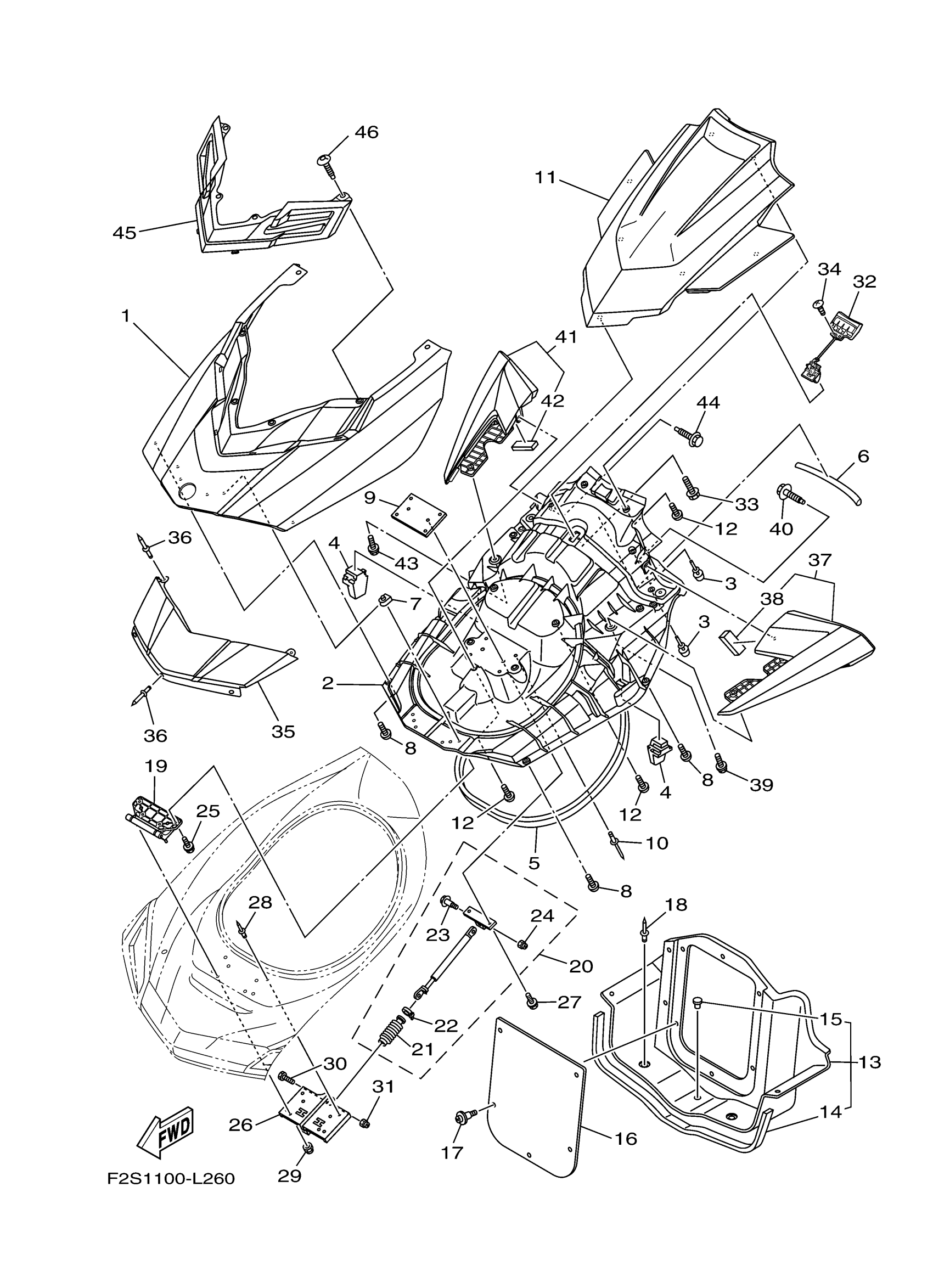

Yamaha FB1800AS (FX CRUISER HO) F2TM 2017 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (DNMC)

F2S-U517B-01-P1

$185.06

1

LID, ENGINE ROOM (BMG)

F2S-U517B-01-P3

$168.99

2

INNER, ENGINE HATCH

F2S-U519G-02-00

$270.13

3

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

4

STOPPER, HATCH 1

F2S-U5135-00-00

$2.61

5

PACKING 1

F2S-U2663-00-00

$26.10

6

PACKING 3

F2S-U266B-00-00

$3.51

7

NUT, SPRING(GJ3)

90183-06902-00

$8.53

8

SCREW

F2S-U13C1-00-00

$2.52

9

PLATE, HATCH

F1W-U5148-00-00

$15.79

10

RIVET, BLIND

90267-48807-00

$2.22

11

VISOR (DNMC)

F2S-U515N-01-P1

$231.33

11

VISOR (BMG)

F2S-U515N-01-P3

$231.33

12

SCREW

F2S-U13C1-00-00

$2.52

13

LOCKER,BOW

F2S-U475B-00-00

Unavailable

14

PACKING 4

F2C-U266C-00-00

$7.24

15

. PLUG, BLIND

90605-502U1-00

$2.30

16

PLATE, LOKER BOW

F2S-U475F-00-00

$11.48

17

RIVET

90269-08801-00

$1.23

18

RIVET

90269-08801-00

$1.23

19

HINGE, LID

F2S-U517D-00-00

$74.61

20

DAMPER ASSY

F2S-6514S-00-00

$199.11

21

. COVER, DAMPER

F1W-6514T-00-00

$23.87

22

BAND

1UA-82591-00-00

Unavailable

23

BOLT

90109-06218-00

$10.43

24

NUT, SELF-LOCKING

95720-06300-00

$1.72

25

BOLT, WITH WASHER

90119-06896-00

$5.23

26

PLATE, HINGE LID

F2S-U518E-00-00

$47.75

27

BOLT, WITH WASHER

90119-06830-00

Unavailable

28

RIVET, BLIND

90267-48020-00

$6.88

29

NUT, NYLON

9572R-06300-00

$2.93

30

BOLT

90109-06218-00

$10.43

31

NUT, NYLON

9572R-06300-00

$2.93

32

LOCK, LID

F2S-U517C-01-00

$37.20

33

BOLT, WITH WASHER (EW3)

90119-05912-00

$3.88

34

SCREW, TAPPING

9778R-50010-00

$1.34

35

COVER, FRONT (DNMC)

F2S-U513M-01-P1

$76.10

35

COVER, FRONT (BMG)

F2S-U513M-01-P3

$76.10

36

RIVET, BLIND

90267-489U6-00

Unavailable

37

MIRROR ASSY. 1

F2S-U590D-41-00

$152.22

37

MIRROR ASSY. 1

F2S-U590D-61-00

$152.22

38

. PACKING 3

F1K-U266B-00-00

$1.23

39

BOLT, WITH WASHER

90119-08907-00

$5.17

40

BOLT,WITH WASHER

90119-068B8-00

$30.13

41

MIRROR ASSY. 2

F2S-U590E-41-00

$152.22

41

MIRROR ASSY. 2

F2S-U590E-61-00

$152.22

42

. PACKING 3

F1K-U266B-00-00

$1.23

43

BOLT, WITH WASHER

90119-08907-00

$5.17

44

BOLT,WITH WASHER

90119-068B8-00

$30.13

45

CENTER ORNAMENT ASSY

F2S-U510D-01-00

$168.64

46

SCREW

F2S-U13C1-00-00

$2.52
