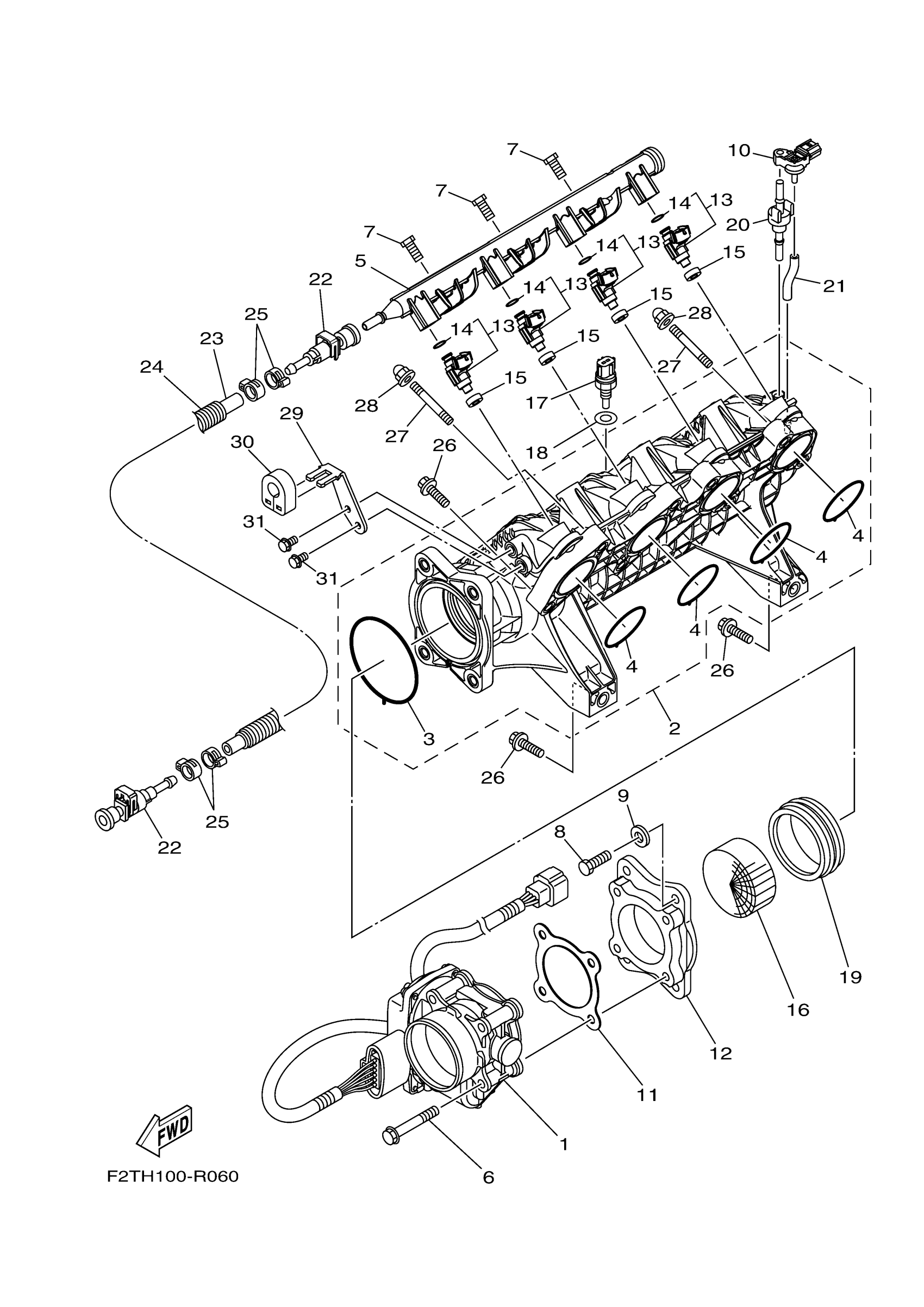

Yamaha FB1800AR (FX CRUISER HO) F2TH 2016 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-03-00

Unavailable

2

MANIFOLD, INTAKE 1

6BH-13641-10-00

$374.61

3

. GASKET, INSULATING

6BH-14156-00-00

$19.39

4

. GASKET

6BH-14126-00-00

$12.91

5

DELIVERY PIPE

6CS-12880-00-00

$162.67

6

BOLT, FLANGE

90105-08243-00

$1.72

7

BOLT

6CS-14446-00-00

$8.94

8

BOLT (682)

97013-08025-00

$6.34

9

.. WASHER, PLATE

92990-08600-00

$2.41

10

. SENSOR, PRESSURE

6BH-82380-00-00

$274.61

11

GASKET

6CR-14536-00-00

$9.11

12

SPACER

6CR-14163-00-00

$73.12

13

INJECTOR

6S5-13761-10-00

$164.15

14

. O-RING

68V-1416A-00-00

$11.01

15

. GASKET, MANIFOLD

8FP-13556-10-00

$5.69

16

RIBBON

6D3-1444B-01-00

Unavailable

17

THERMOSENSOR

65L-85886-00-00

$60.03

18

. WASHER

6S5-14285-00-00

$2.16

19

HOLDER

6S5-14457-00-00

$77.60

20

GROMMET

6BH-14445-00-00

$20.88

21

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.27

22

FUEL PIPE JOINT

6S5-24300-01-00

$29.84

23

HOSE

6AN-14294-20-00

Unavailable

24

TUBE (L495)

90447-19017-00

$7.16

25

HOSE CLAMP ASSY

90450-17M17-00

$7.59

26

BOLT, WITH WASHER

97513-08535-00

$1.72

27

BOLT, STUD

90116-08032-00

$3.41

28

NUT, CROWN(4BR)

90176-08080-00

Unavailable

29

PLATE, STAY

6CR-14572-00-00

$7.16

30

GROMMET

6CS-14445-01-00

$5.37

31

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
