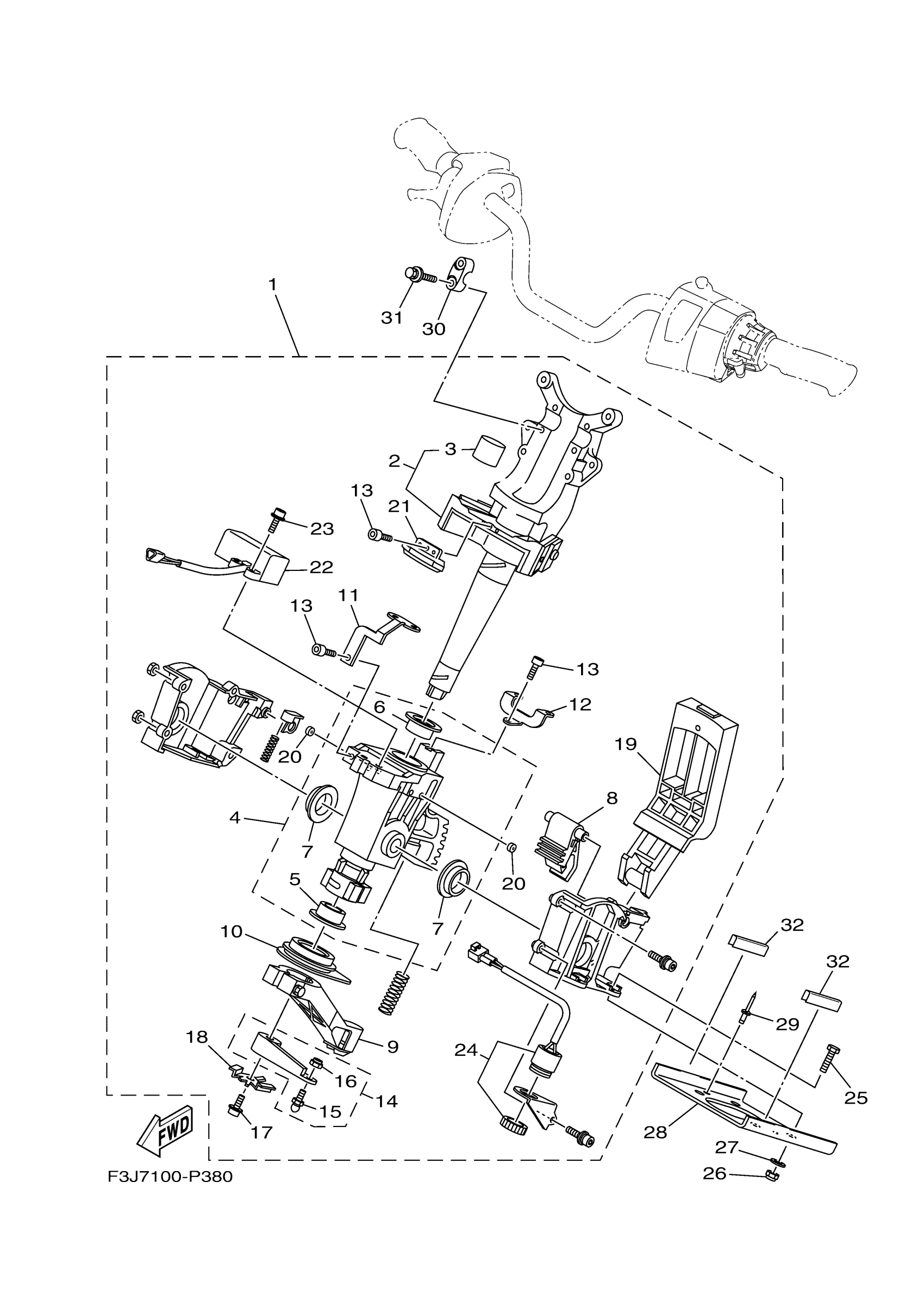

Yamaha FB1800AP (FX CRUISER HO) F2TD 2015 STEERING 2 Diagram

#

Description
Price

1

STEERING MASTER ASSY

F3J-61400-00-00

Unavailable

2

. SHAFT ASSY

F3J-67410-00-00

$225.74

3

.. PIPE, SEAL

F1W-61435-00-00

$15.89

4

. TUBE & BUSHING SET

F1W-6773D-00-00

$303.02

5

.. BUSH

F1S-6134M-00-00

$10.49

6

. BUSH

F2C-6134M-00-00

$8.14

7

.. BUSH

F1S-6134M-10-00

$10.49

8

. LOCK 1

F1S-61782-00-00

$56.05

9

. CABLE STOPPER ASSY

F1S-6146A-00-00

$130.29

10

. SEAL, RUBBER

F1S-6143C-00-00

$34.49

11

. STAY 1

F3J-65938-00-00

$14.38

12

. STAY 2

F3J-65939-00-00

$8.32

13

SCREW

F1B-613C1-10-00

Unavailable

14

ARM ASSY.

F1S-6153R-02-00

$90.89

15

STUD, JOINT BALL

EU0-61461-02-00

$14.38

16

NUT, SELF-LOCKING

95720-06300-00

$1.82

17

BOLT

F1W-61355-10-00

Unavailable

18

. PLATE, RETAINING

F1W-6142B-00-00

$18.49

19

. LEVER ASSY

F2S-6151M-00-00

$52.99

20

. PLUG

F1W-6358B-00-00

$19.68

21

MAGNET

F3J-6838C-01-00

$26.49

22

SENSOR, MAGNET

F3J-6838B-01-00

$210.59

23

BOLT

F1W-61516-10-00

Unavailable

24

BUZZER

F1S-68341-00-00

$113.62

25

BOLT (62K)

97095-08035-00

Unavailable

26

NUT, NYLON (6J8)

95780-08300-00

$10.55

27

WASHER

F1W-U725E-00-00

$11.35

28

PLATE, RETAINING

F1X-U1554-00-00

$54.53

29

RIVET, BLIND

90267-489U6-00

$1.37

30

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

31

BOLT, WITH WASHER

90119-089U1-00

$3.23

32

TRIM

F2S-U5162-00-00

$1.52
