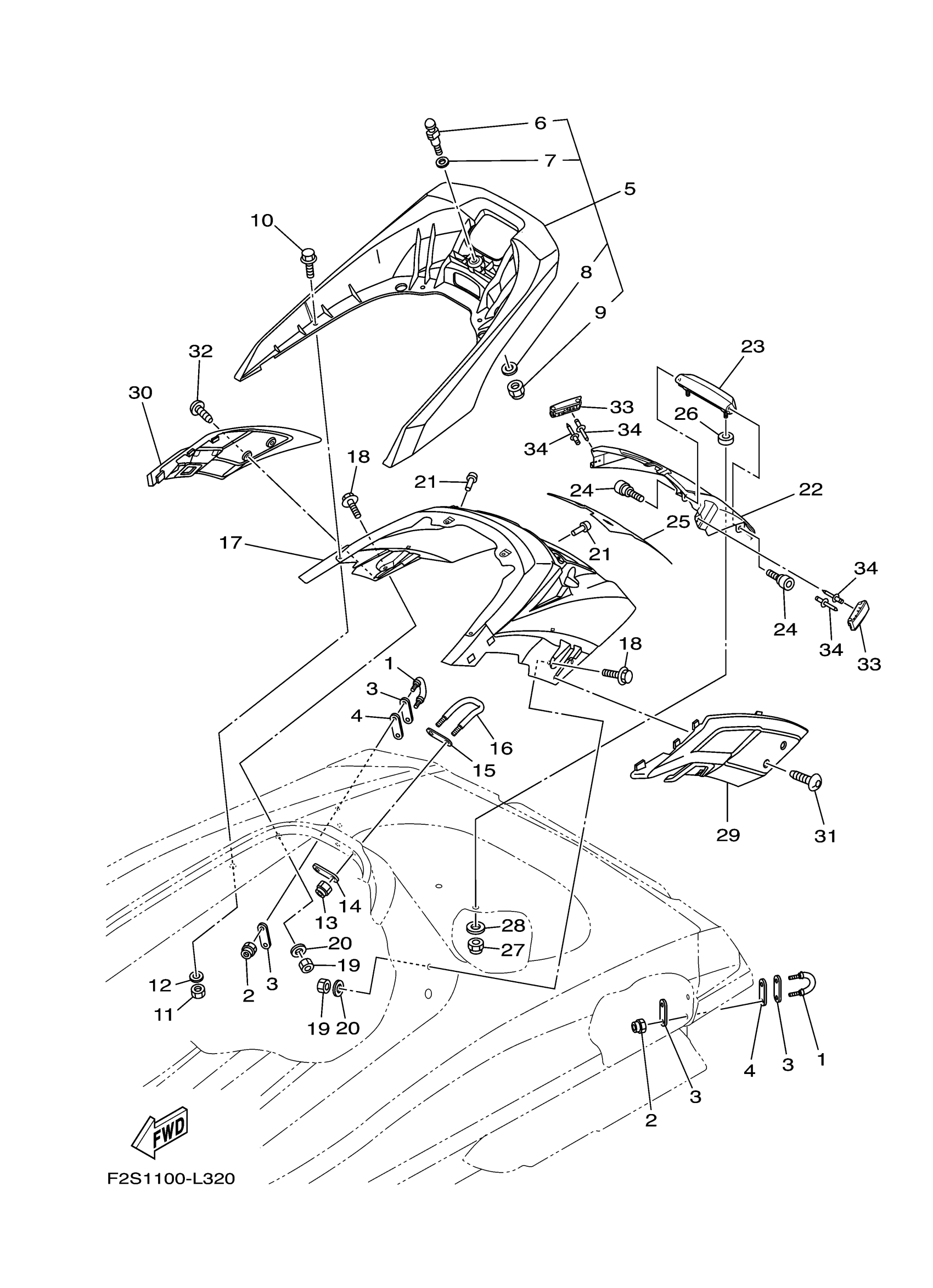

Yamaha FB1800AN (FX CRUISER HO) F2T9 2014 SEAT & UNDER LOCKER 2 Diagram

#

Description
Price

1

STERN EYE

F2N-U1628-02-00

$4.96

2

NUT, NYLON (6J8)

95780-08300-00

$10.55

3

PLATE A

GP7-U4953-10-00

$3.52

4

PACKING

F1B-U1653-03-00

$1.88

5

GRIP ASSY

F2S-U270B-10-00

$369.68

6

PIN

GH1-U3774-00-00

$19.38

7

WASHER, PLATE

90201-109U6-00

$3.29

8

WASHER

9299R-10200-00

$1.63

9

NUT, NYLON

9572R-10300-00

$3.37

10

BOLT, WITH WASHER

90119-08829-00

$3.88

11

NUT, NYLON (6J8)

95780-08300-00

$10.55

12

WASHER

9299R-08200-00

$1.82

13

NUT, NYLON (6J8)

95780-08300-00

$10.55

14

PLATE A

GP7-U4953-10-00

$3.52

15

PLATE A

GP7-U4953-10-00

$3.52

16

SKI TOWS

F1B-U1629-00-00

$25.11

17

STORAGE, STERN (DRMV)

F2S-U89A1-01-P6

Unavailable

17

STORAGE, STERN (PURW)

F2S-U89A1-01-P7

$169.68

18

BOLT, WITH WASHER

90119-08832-00

$0.91

19

NUT, NYLON (6J8)

95780-08300-00

$10.55

20

WASHER

9299R-08200-00

$1.82

21

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

22

LID LOCKER STERN (DRMV)

F2S-U518M-01-P6

Unavailable

22

LID LOCKER STERN (PURW)

F2S-U518M-01-P7

$78.77

23

GRIP, LOWER

F2S-U271F-01-00

$20.81

24

BOLT

F2S-U2624-00-00

$1.87

25

PACKING CASE

F2S-U519D-20-00

Unavailable

26

PACKING

F2S-U2284-01-00

Unavailable

27

NUT, NYLON (6J8)

95780-08300-00

$10.55

28

WASHER

9299R-08200-00

$1.82

29

STERN COVER ASSY 1

F2S-U890M-11-00

$51.50

30

STERN COVER ASSY 2

F2S-U890N-11-00

$215.62

31

SCREW

F2S-U13C1-00-00

$2.36

32

SCREW

F2S-U13C1-00-00

$2.36

33

LOCK 1

F2S-U264L-01-00

$25.11

34

RIVET, BLIND

90267-409U3-00

$0.79
