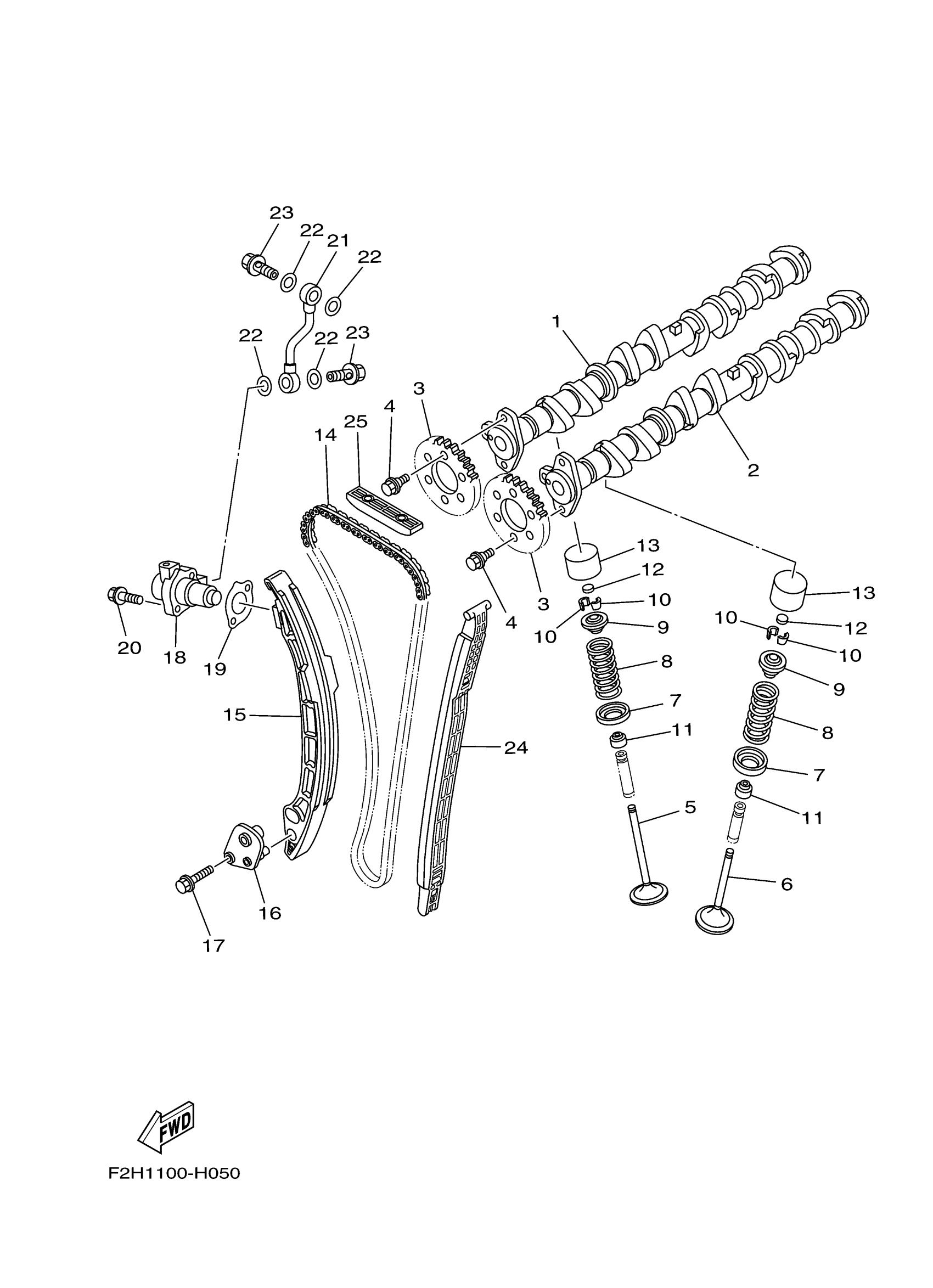

Yamaha FB1800AM (FX CRUISER HO) F2T5 2013 VALVE Diagram

#

Description
Price

1

CAMSHAFT 1

6BH-12171-10-00

Unavailable

2

CAMSHAFT 2

6BH-12181-10-00

Unavailable

3

SPROCKET, CAM CHAIN

6D3-12176-10-00

$79.40

4

BOLT, FLANGE

90105-07004-00

$4.66

5

VALVE, INTAKE

6S5-12111-01-00

Unavailable

6

VALVE, EXHAUST

6S5-12121-00-00

$41.79

7

SEAT, VALVE SPRING

6S5-12116-00-00

$2.80

8

SPRING, VALVE INNER

6S5-12113-00-00

$11.77

9

RETAINER, VALVE SPRING

6S5-12117-00-00

$4.93

10

COTTER, VALVE

3LD-12118-00-00

$2.24

11

SEAL, VALVE STEM

51Y-12119-00-00

$4.08

12

PAD, ADJUSTING

3LD-12168-00-00

$14.21

12

PAD, ADJUSTING

3LD-12168-20-00

$15.13

12

PAD, ADJUSTING

3LD-12168-40-00

$15.13

12

PAD, ADJUSTING (1.35)

3LD-12168-60-00

$9.74

12

PAD, ADJUSTING (1.40)

3LD-12168-80-00

$13.53

12

PAD, ADJUSTING (1.45)

3LD-12168-A0-00

$9.13

12

PAD, ADJUSTING (1.50)

3LD-12168-F0-00

$12.84

12

PAD, ADJUSTING (1.55)

3LD-12168-H1-00

$13.81

12

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.25

12

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.57

12

PAD, ADJUSTING

3LD-12168-R1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

12

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$13.72

12

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$13.65

12

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

12

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$9.74

12

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

13

LIFTER, VALVE

6S5-12153-00-00

$22.19

14

CHAIN

94591-66152-00

$47.49

15

DAMPER, CHAIN 2

6BH-12252-00-00

$141.35

16

PLATE

6BH-12279-00-00

$117.63

17

BOLT, FLANGE

95814-06030-00

$2.56

18

TENSIONER ASSY, CA

6S5-12210-02-00

Unavailable

19

. GASKET

6S5-121E2-00-00

$2.80

20

BOLT,SOCKET

91380-06025-00

Unavailable

21

PIPE, OIL 2

6S5-13418-00-00

$55.87

22

. GASKET

90430-10007-00

$3.60

23

BOLT, UNION

90401-10040-00

$7.59

24

DAMPER, CHAIN 1

6BH-12251-00-00

$45.97

25

GUIDE, STOPPER 2

6BH-12241-00-00

$9.11
