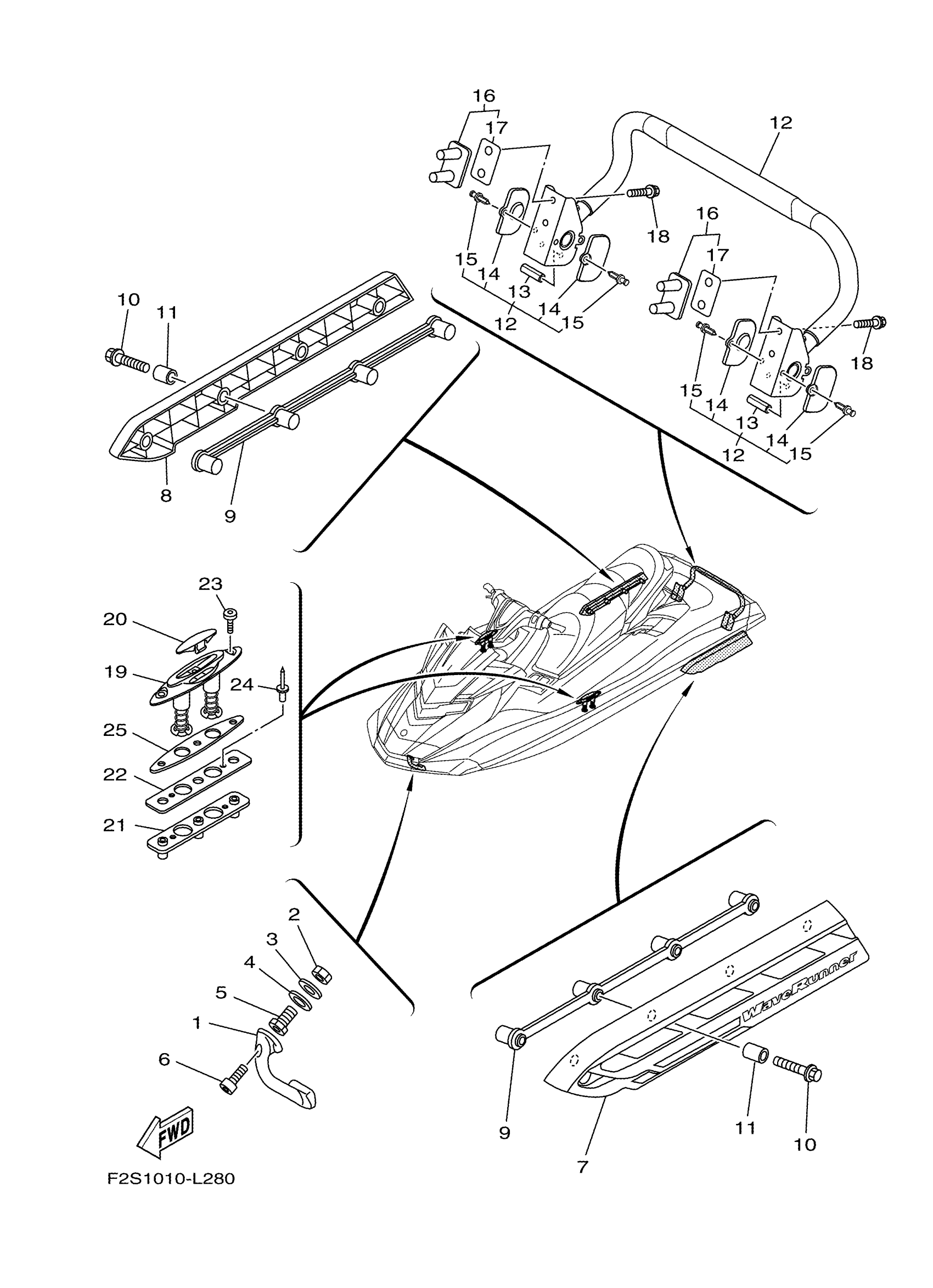

Yamaha FB1800AM (FX CRUISER HO) F2T5 2013 HULL & DECK 2 Diagram

#

Description
Price

1

BOW EYE 1

F1K-61624-00-00

$42.60

2

NUT.HEX.(COARS)

99780-12600-00

$2.80

3

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

4

WASHER

F0X-61637-00-00

$1.29

5

NUT

F0X-61652-01-00

$11.84

6

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

7

SPONSON LH

F2S-U883N-02-00

$50.26

8

SPONSON RH

F2S-U883P-02-00

$37.32

9

BRACKET,STABILIZER

F2S-U883T-00-00

$28.02

10

BOLT,WASHER BASED

90105-088F9-00

$2.91

11

SPACER

F2N-U8169-10-00

$1.15

12

LADDER, STEP ASSY

F2S-U278A-01-00

$218.25

13

. SLEEVE 1

F1W-U771H-00-00

$22.97

14

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.29

15

. PIN

F2C-U1314-00-00

$2.44

16

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

17

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

18

BOLT, WITH WASHER

90119-08844-00

$1.29

19

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

20

COVER

F1X-U826D-01-00

$1.87

21

BRACKET

F1X-U826C-10-00

$11.48

22

PACKING

F1X-U2157-00-00

$1.63

23

BOLT

F1W-U2624-00-00

$2.30

24

RIVET, BLIND

90267-489U6-00

$1.37

25

PACKING

F4G-U2284-10-00

$2.87
