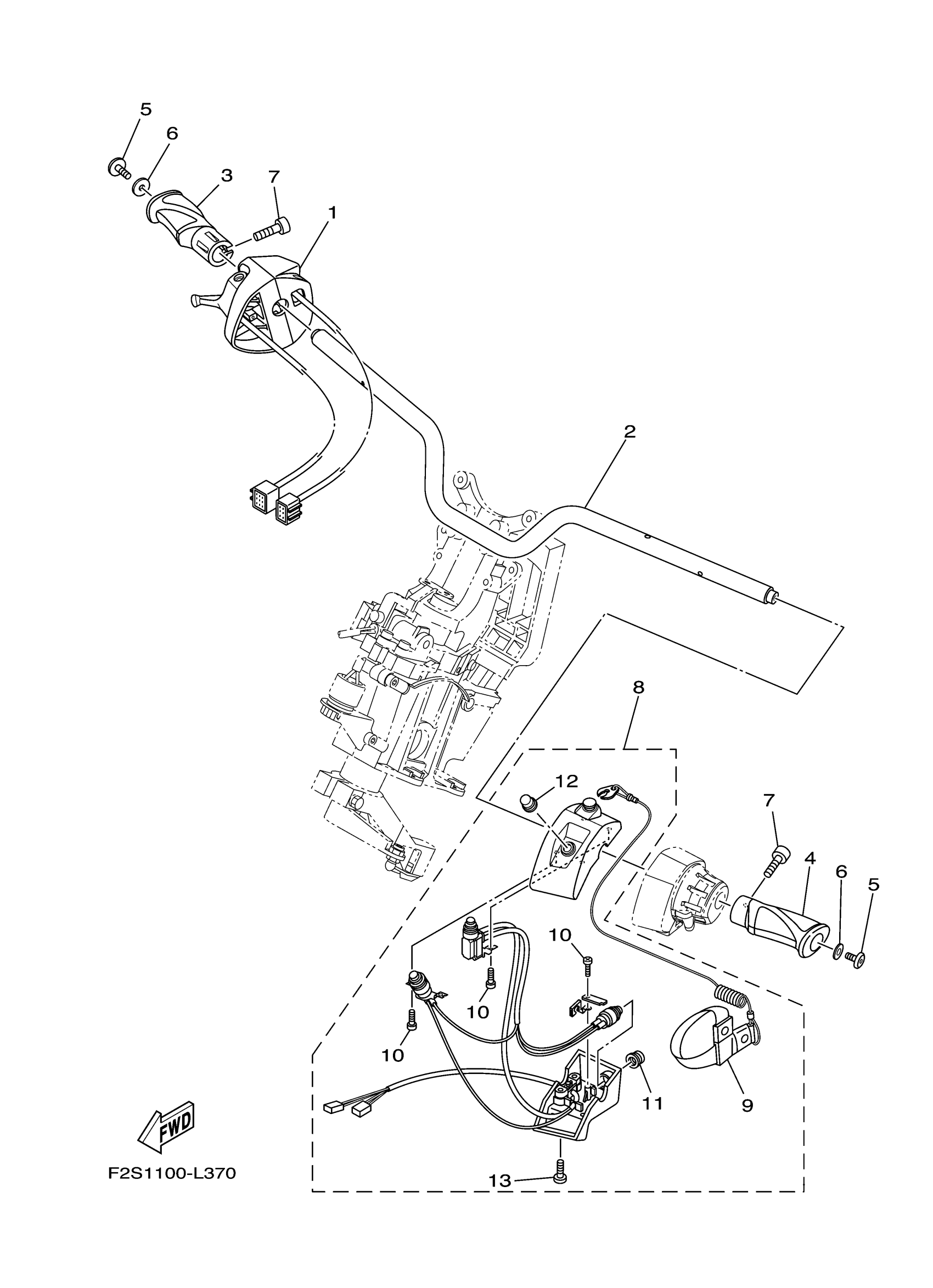

Yamaha FB1800AL (FX CRUISER HO) F2T1 2012 STEERING 1 Diagram

#

Description
Price

1

THROTTLE LEVER ASSY

99999-04136-00

$767.63

2

HANDLE

F2S-U1552-00-00

$276.46

3

GRIP,HANDLE

F2S-U155D-03-00

$21.80

4

GRIP,HANDLE

F2S-U155C-02-00

$67.50

5

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.79

6

WASHER, PLATE

90201-068G0-00

$0.74

7

BOLT

F2S-U1516-00-00

$2.93

8

SWITCH BOX ASSY

F2S-68310-00-00

$219.10

9

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

10

. SCREW, TAPPING

97780-30610-00

$1.29

11

. STOP BUTTON COMP

FK7-68312-02-00

$11.96

12

. START BUTTON COMP

FK7-68313-02-00

$10.25

13

SCREW, PAN HEAD

98517-05030-00

$7.40
