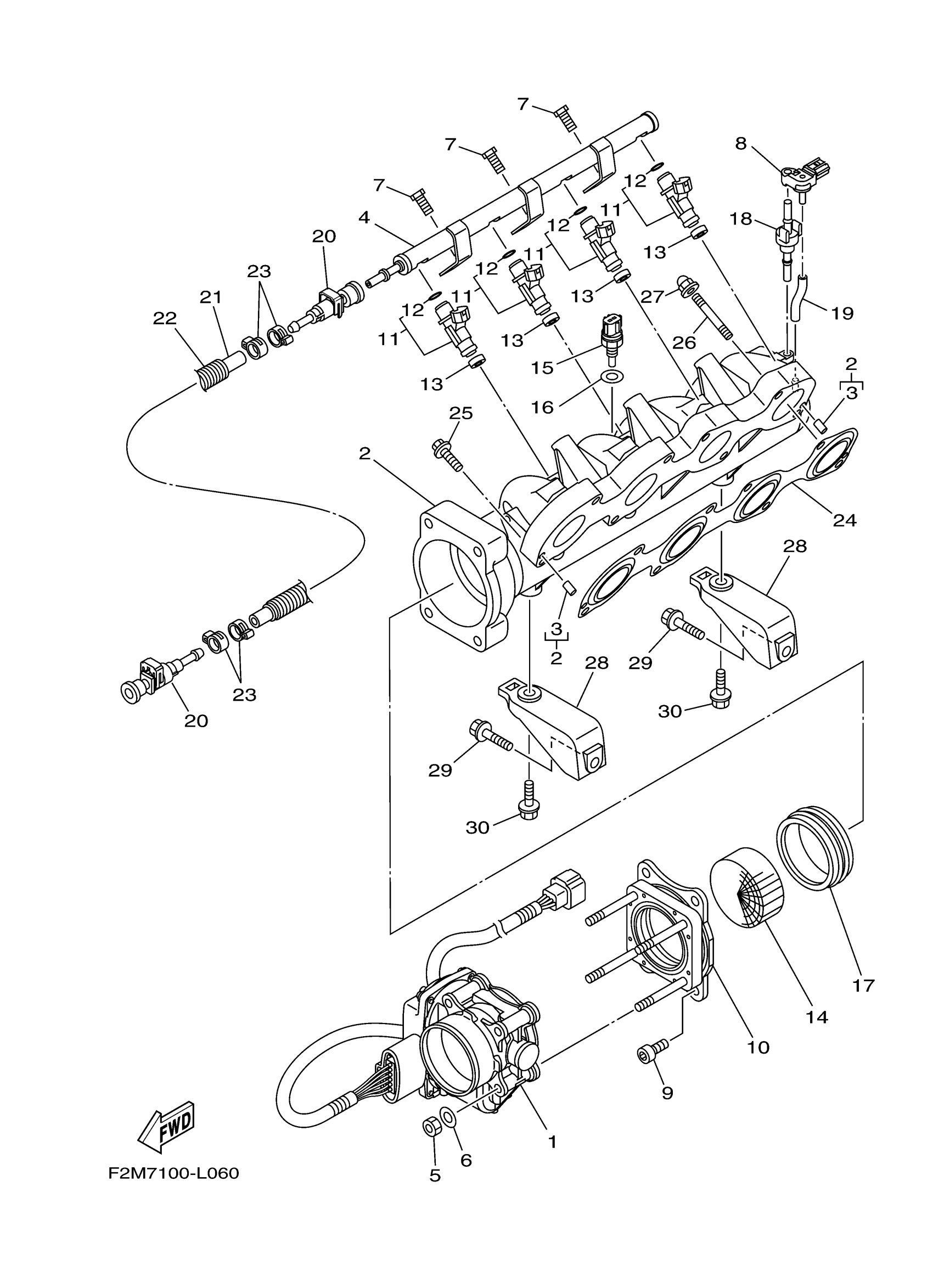

Yamaha FB1800AL (FX CRUISER HO) F2T1 2012 INTAKE 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6BH-13750-03-00

Unavailable

2

MANIFOLD, INTAKE 1

6BH-13641-01-00

$1,024.23

3

PIN,DOWEL (603)

93604-10011-00

$4.89

4

DELIVERY PIPE

6S5-12880-10-00

$931.80

5

NUT

6P2-13588-00-00

$19.71

6

WASHER

6P2-13578-00-00

$6.57

7

. BOLT

63P-14446-00-00

$9.27

8

. SENSOR, PRESSURE

6BH-82380-00-00

$278.77

9

BOLT

6S5-14496-00-00

$12.86

10

THROTTLE DAMPER AS

6BH-14360-02-00

Unavailable

11

INJECTOR

6S5-13761-10-00

$175.86

12

. O-RING

68V-1416A-00-00

$10.18

13

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

14

RIBBON

6BH-1444B-01-00

Unavailable

15

THERMOSENSOR

65L-85886-00-00

$57.25

16

. WASHER

6S5-14285-00-00

$2.19

17

SEAL

6BH-14457-00-00

$71.20

18

GROMMET

6BH-14445-00-00

$20.99

19

HOSE, VACUUM SENSING 3

6BH-13532-00-00

$6.36

20

FUEL PIPE JOINT

6S5-24300-01-00

$30.29

21

HOSE

6AN-14294-20-00

Unavailable

22

TUBE (L495)

90447-19017-00

$7.27

23

HOSE CLAMP ASSY

90450-17M17-00

$7.40

24

. GASKET, MANIFOLD 1

6BH-13645-00-00

$15.55

25

BOLT, WITH WASHER

90119-08022-00

$3.41

26

BOLT, STUD

90116-08032-00

$3.33

27

NUT, CROWN(4BR)

90176-08080-00

Unavailable

28

STAY

6S5-14413-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08043-00

$4.55

30

BOLT, WITH WASHER

90119-08099-00

$5.00
