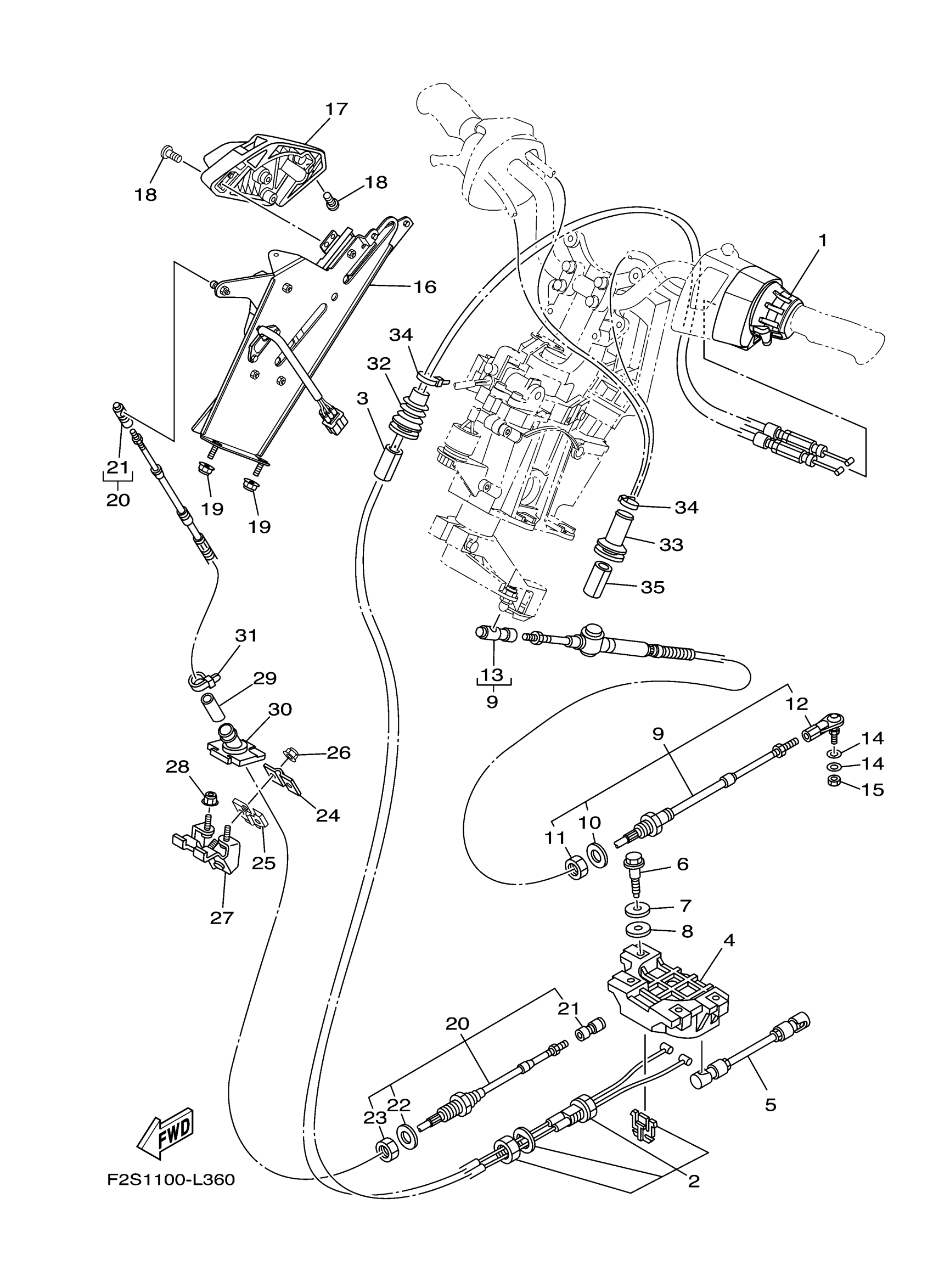

Yamaha FB1800AL (FX CRUISER HO) F2T1 2012 CONTROL CABLE Diagram

#

Description

Price

1

NOZZLE,CONTROL ASSY

F2S-6153A-00-00

Unavailable

2

CABLE,NOZZLE CONTROL 3

F2S-6153E-00-00

Unavailable

3

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

4

REMOCON,NOZZLE 2

F1W-6153J-01-00

Unavailable

5

ROD ASSY

F1W-6150A-00-00

Unavailable

6

BOLT

90109-06233-00

Unavailable

7

WASHER, PLATE

90201-099U3-00

Unavailable

8

WASHER, PLATE

90202-08002-00

Unavailable

9

CABLE, STEERING

F1S-61481-12-00

$344.99

10

. PACKING C

F1B-61438-00-00

Unavailable

11

NUT

F1B-6151S-01-00

Unavailable

12

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

13

. BALL JOINT ASSY

F2N-61460-00-00

Unavailable

14

WASHER, PLATE

90201-06906-00

Unavailable

15

NUT

9538R-06700-00

Unavailable

16

REMOCON. LEVER ASSY.

F2S-6134A-02-00

Unavailable

17

GRIP

F2S-62714-00-00

Unavailable

18

SCREW, BINDING

90154-06016-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

Unavailable

20

CABLE,REVERSE

F2S-U149C-01-00

Unavailable

21

. STUD, JOINT BALL

F0V-U1461-00-00

Unavailable

22

. PACKING C

F2S-U1438-00-00

Unavailable

23

. NUT

F2S-U151S-00-00

Unavailable

24

STOPPER, CABLE

GH1-61468-01-00

Unavailable

25

HOLDER, STOPPER

GU5-6146K-10-00

Unavailable

26

NUT, LOCK

F2N-U142L-00-00

Unavailable

27

BRACKET,STOPPER CABLE

F2S-U1467-10-00

Unavailable

28

NUT, LOCK

F2N-U142L-00-00

Unavailable

29

PACKING, CABLE

F1W-U146G-00-00

Unavailable

30

PACKING, CABLE

F2S-U146G-10-00

Unavailable

31

CLAMP

90465-10098-00

Unavailable

32

GROMMET

F0D-6822E-00-00

Unavailable

33

GROMMET

GU2-6822E-01-00

Unavailable

34

BAND

90601-200U1-00

Unavailable

35

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable
