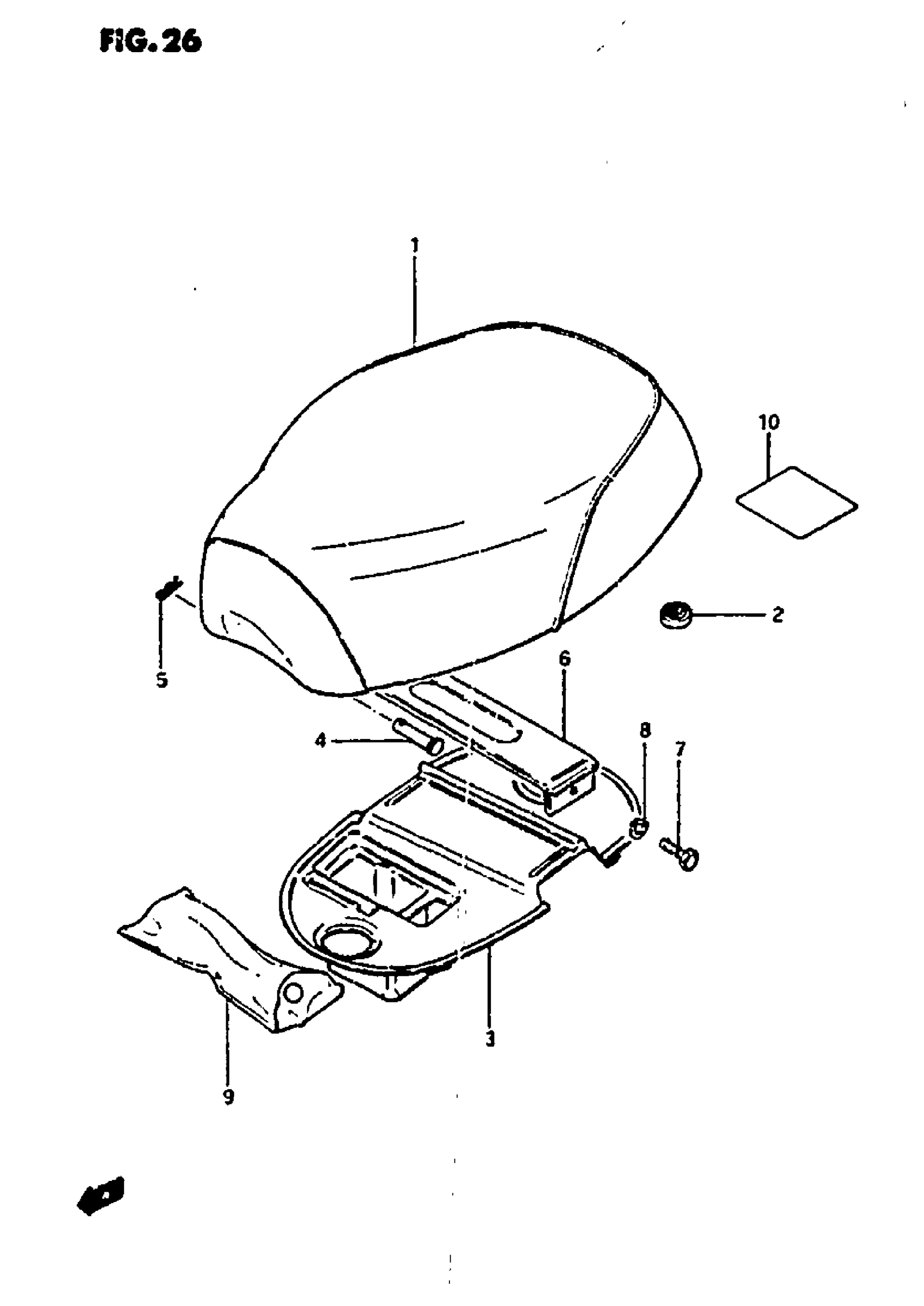

Suzuki FA50 (1991) SEAT Diagram

#

Description
Price

1

SEAT ASSY | MODEL Z/D/E/F/G This part replaces 45100-02212-48H.

45100-02213-48H

Unavailable

1

SEAT ASSY | MODEL H/O/K/L/M,FOR 019 This part replaces 45100-02212-4NJ.

45100-02213-48H

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H, FOR 10J MODEL J/K/L/M/FOR19F This part replaces 45100-02212-44P.

45100-02212-43N

Unavailable

1

SEAT ASSY | MODEL H, FOR 33L MODEL J/K/L/M,FOR14C This part replaces 45100-02212-48H.

45100-02213-48H

Unavailable

2

CUSHION

09321-14003

Unavailable

3

COVER, FRAME UPPER | MODEL Z

47181-02210

Unavailable

3

COVER, FRAME UPPER | MODEL D/E/F/G/H/J/K/L/M

47181-02200

Unavailable

4

PIN

09200-08002

$2.05

5

CLIP

09385-06001

$3.10

6

BRACKET, SUPPORT

45260-02502

Unavailable

7

BOLT This part replaces 01107-06107.

01500-06107

$2.06

8

LOCK WASHER

00821-21067

Unavailable

9

TOOL ASSY | OPT This part replaces 09800-03800.

09800-21080

$36.42

10

LABEL,WARNING

68369-02200

Unavailable
