1991 Suzuki FA50 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 1991 Suzuki FA50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

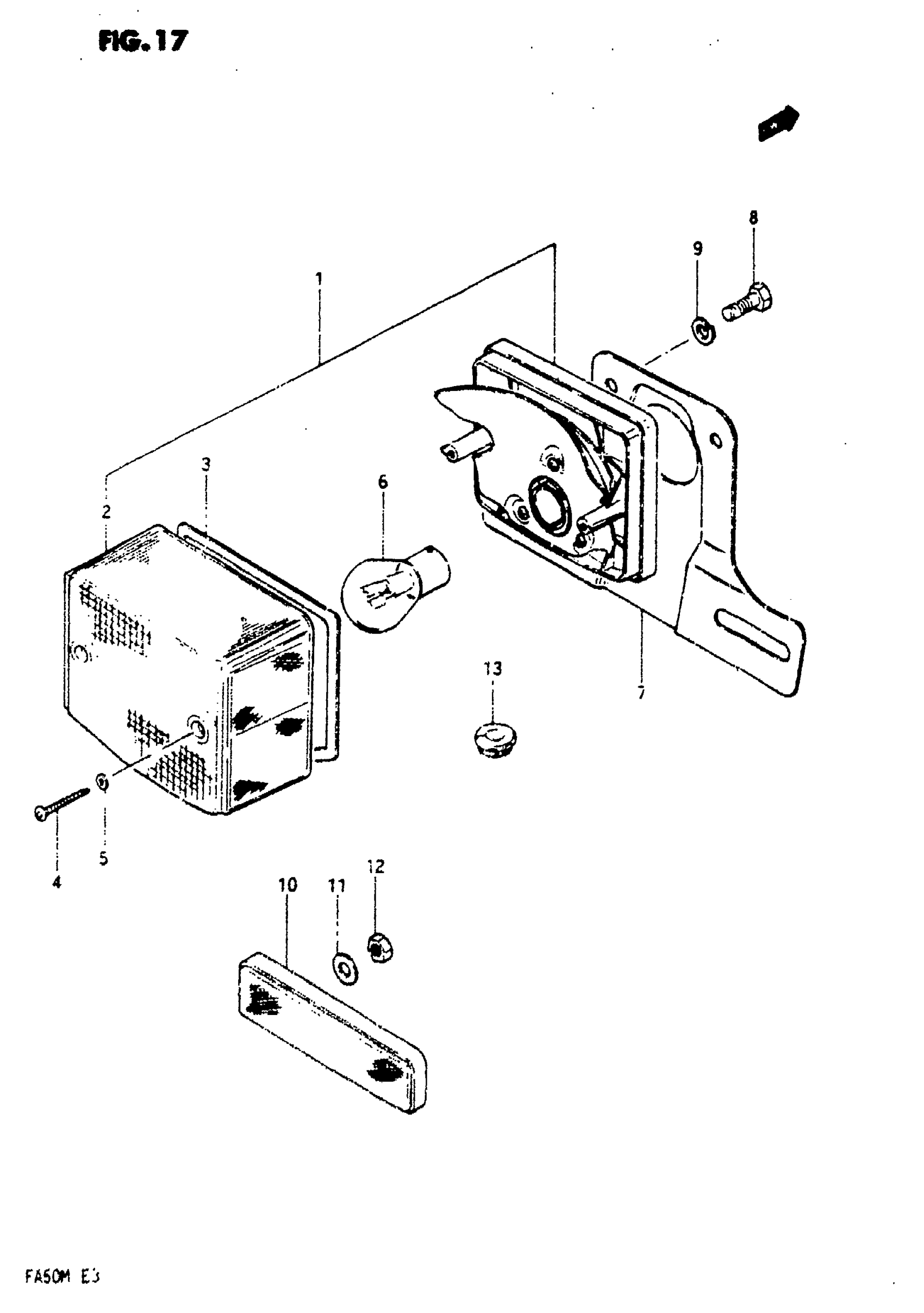

1991 Suzuki FA50 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,RR CO | Includes Item(s) 2 - 6 This part replaces 35710-02232.

35710-44B10-999

1
Out of stock

2

LENS

35712-48510

1
Out of stock

3

GASKET

35713-48510

1
Out of stock

4

SCREW This part replaces 03211-04308.

03211-04306

2
Out of stock

5

GASKET

35627-43010

2

$2.65

In stock

6

BULB (6V, 21/3CP)

09471-06009

1
Out of stock

7

BRACKET

35927-02230

1
Out of stock

8

BOLT This part replaces 01107-05167.

01500-0516B

2
Out of stock

9

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

10

REFLEX REFLECTOR ASSY, REAR This part replaces 35970-02230.

35970-44A00

1
Out of stock

11

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

12

NUT This part replaces 08310-11057.

08310-00057

2
Out of stock

13

GROMMET

09308-14006

1
Out of stock
