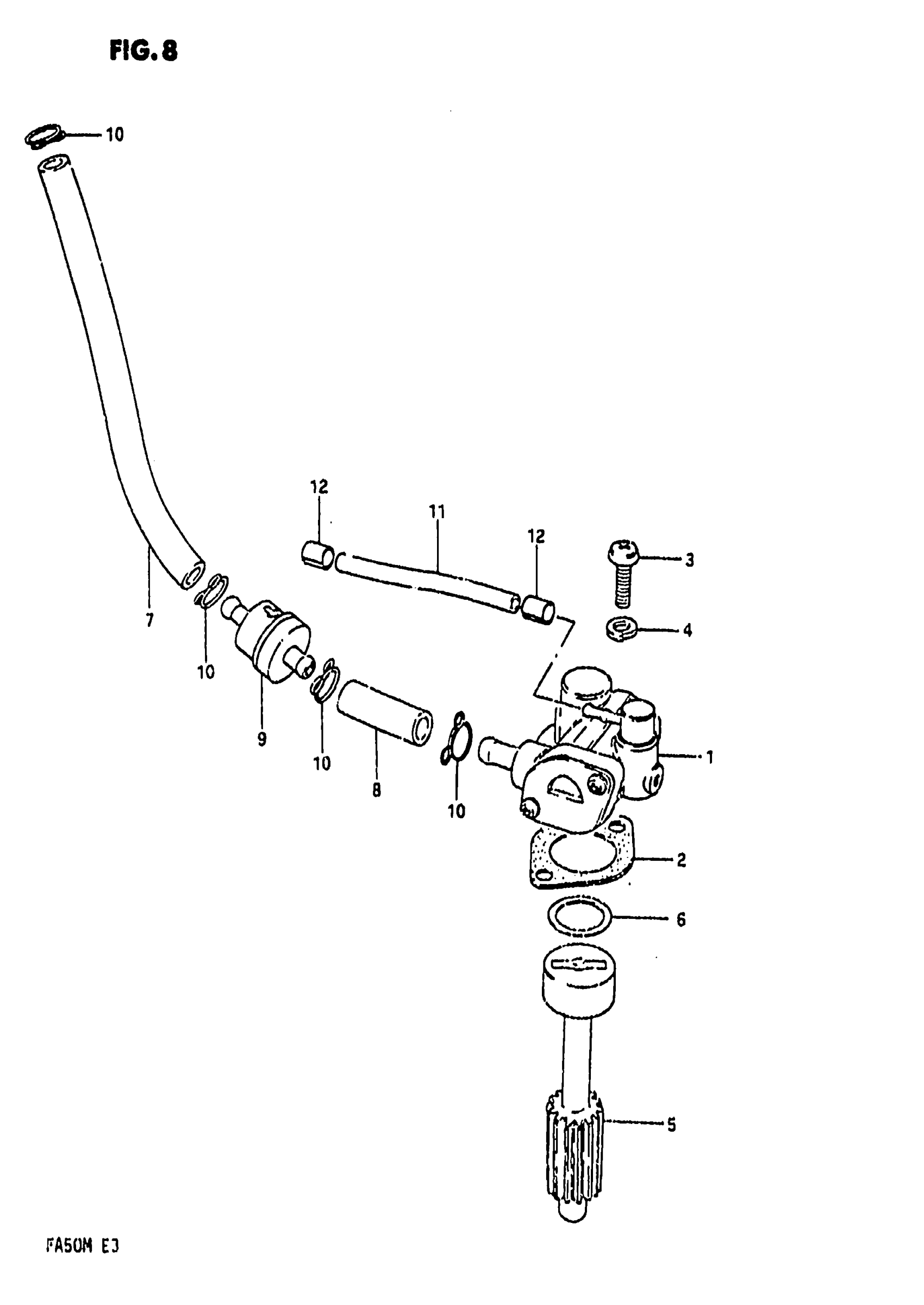

Suzuki FA50 (1991) OIL PUMP Diagram

#

Description
Price

1

PUMP, OIL

16100-02330

Unavailable

2

GASKET

16731-02300

$2.81

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

5

GEAR, DRIVEN (NT:14)

16331-02303

Unavailable

4

WASHER

08212-16202

Unavailable

7

HOSE(4.5X8.5X60 | MODUL Z/D/E/F/G/H/J/K This part replaces 09343-04060.

09355-45001-600

$9.48

7

HOSE(4.5X8.5X60 | MODEL L/M This part replaces 09352-45853-300.

09355-45001-600

$9.48

8

HOSE(4.5X8.5X60 | MODEL Z/D/E/F/G/H/J/K This part replaces 09343-04060.

09355-45001-600

$9.48

8

HOSE(4.5X8.5X60 | MODEL L/M This part replaces 09352-45853-300.

09355-45001-600

$9.48

9

FILTER COMP,OIL This part replaces 16850-02200.

16850-02210

$13.67

10

CLIP

09401-08401

$1.54

11

HOSE(2X5X600) | MODEL Z/D/E/F/G/H/J/K This part replaces 09343-02009.

09352-20504-600

$6.70

11

HOSE(2X5X600) | MODEL L/M This part replaces 09352-20503-300.

09352-20504-600

$6.70

12

CLAMP

09401-04401

$2.06
