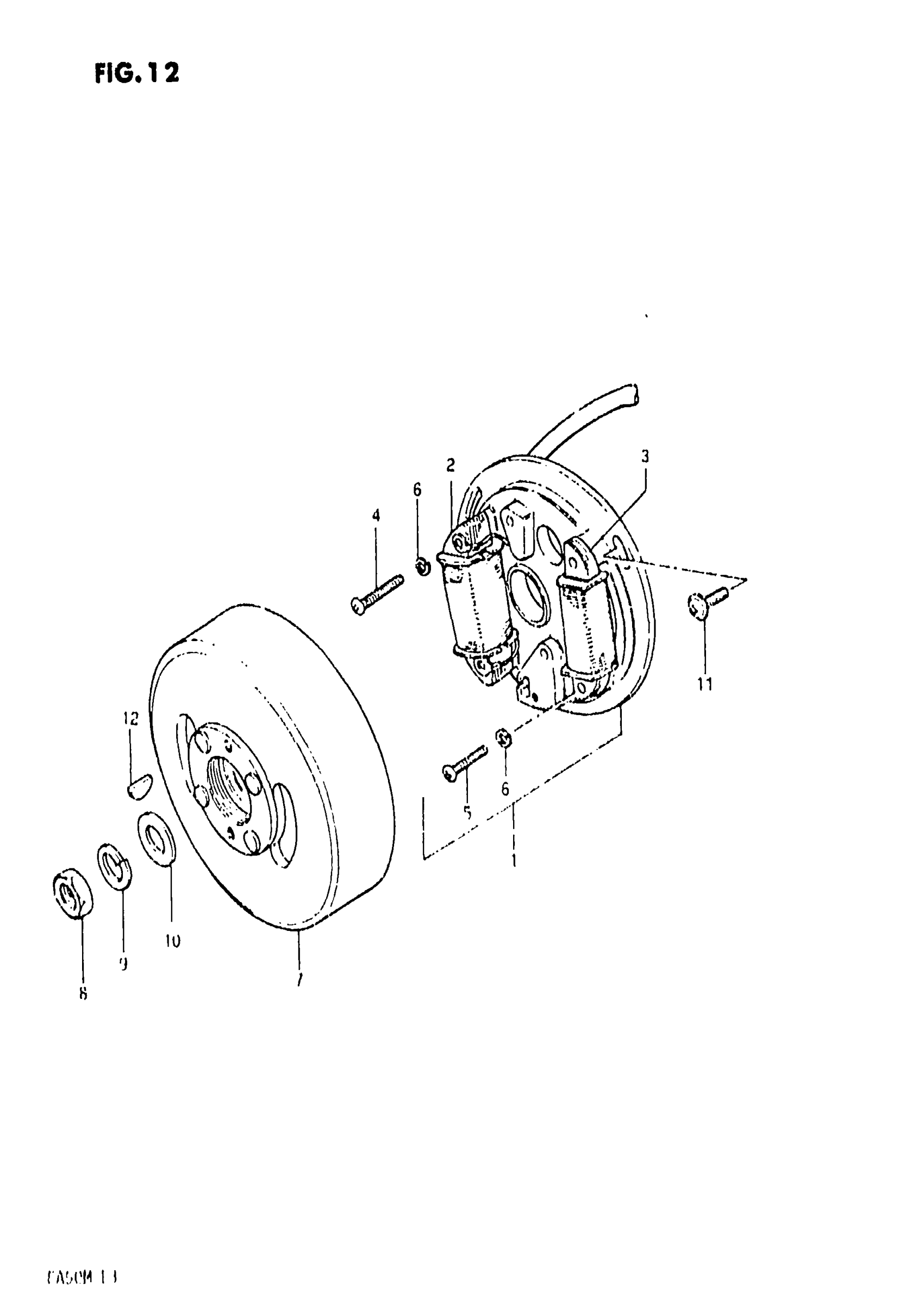

Suzuki FA50 (1991) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 6

32101-02220

Unavailable

2

COIL, LIGHTING

32120-02220

Unavailable

3

COIL, PRIMARY

32140-02220

Unavailable

4

SCREW This part replaces 02112-04258.

02112-0425B

$2.34

5

SCREW This part replaces 02112-04208.

02112-0420A

$1.49

6

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

7

ROTOR

32102-02220

Unavailable

8

NUT This part replaces 08310-12108.

08310-00107

$2.19

9

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

10

WASHER This part replaces 08322-21108.

08322-01107

$2.15

11

SCREW | MODEL Z/D/E

09139-05011

$2.38

11

SCREW | MODEL F/G/H/J/K/L/M This part replaces 02142-05128.

02142-05127

$1.97

12

KEY

08341-31039

$1.89
