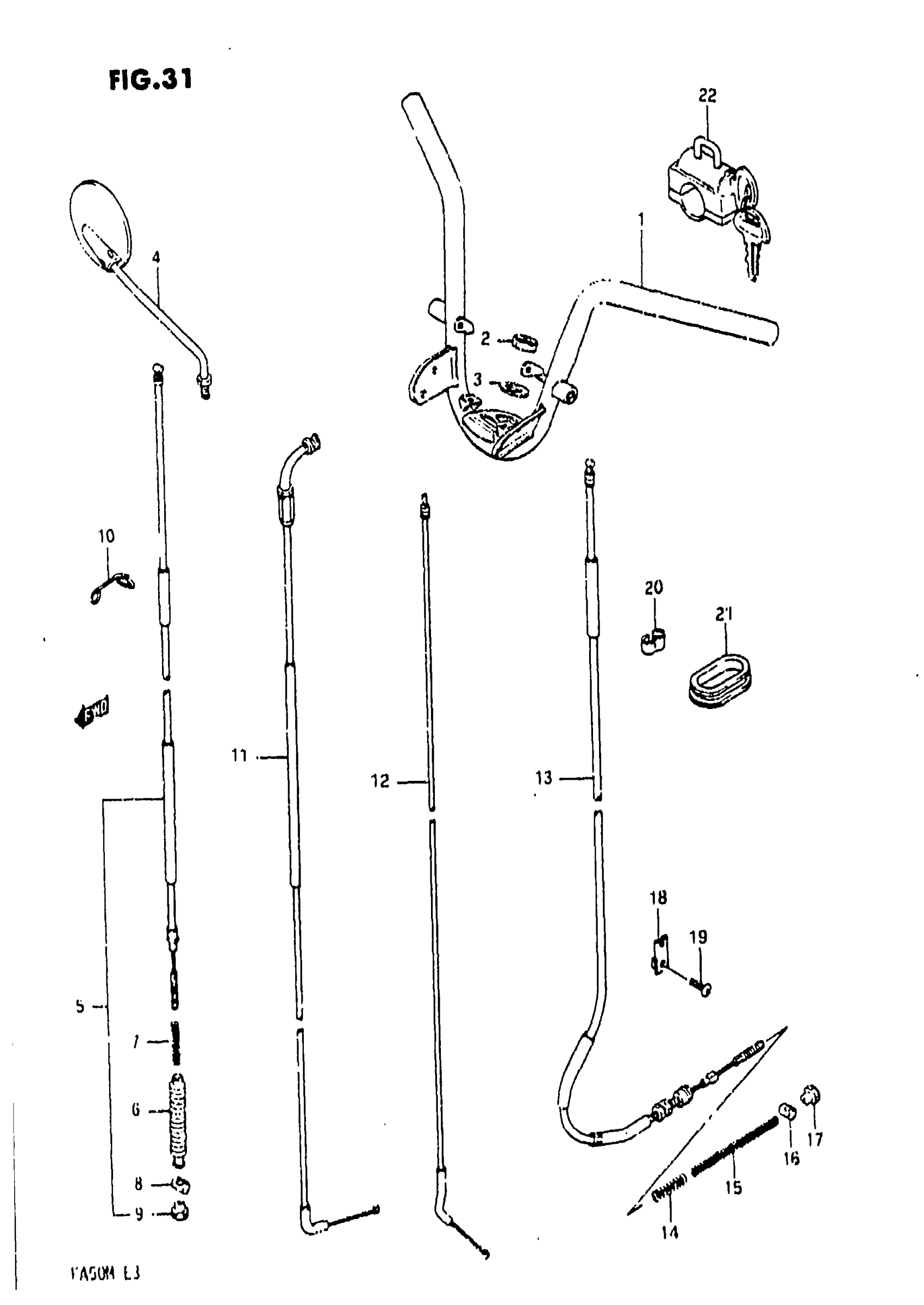

Suzuki FA50 (1991) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-02221

Unavailable

2

NUT

09140-25001

Unavailable

3

WASHER

09160-26013

Unavailable

4

MIRROR ASSY,RH This part replaces 56500-02300.

56500-02301

Unavailable

5

CABLE ASSY, FRONT BRAKE | Includes Item(s) 6 - 9

58100-02200

Unavailable

6

DUST SEAL

09287-07001

$2.00

7

SPRING

09440-06003

$2.44

8

PIN

09209-10001

$1.49

9

NUT

09150-05101

$3.04

10

GUIDE, FRONT BRAKE CABLE

34949-30002

$5.69

11

CABLE, THROTTLE | <-58300-02210 This part replaces 58300-02700.

58300-02X00

Unavailable

12

CABLE, STARTAR

58410-02200

Unavailable

13

CABLE, REAR BRAKE

58510-02200

Unavailable

14

SPRING This part replaces 09440-08019.

09440-08019-XC0

Unavailable

15

SPRING This part replaces 09440-06019.

09440-06019-XC0

$2.75

16

PIN

09209-10001

$1.49

17

NUT

09150-05101

$3.04

18

PLATE, CABLE ADJUSTER

58570-02501

Unavailable

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

CILP

09408-00005

Unavailable

20

CLIP

09408-00025

Unavailable

21

GROMMET

09308-30003

Unavailable

22

LOCK ASSY, HELMET | OPT

95700-04113

Unavailable
