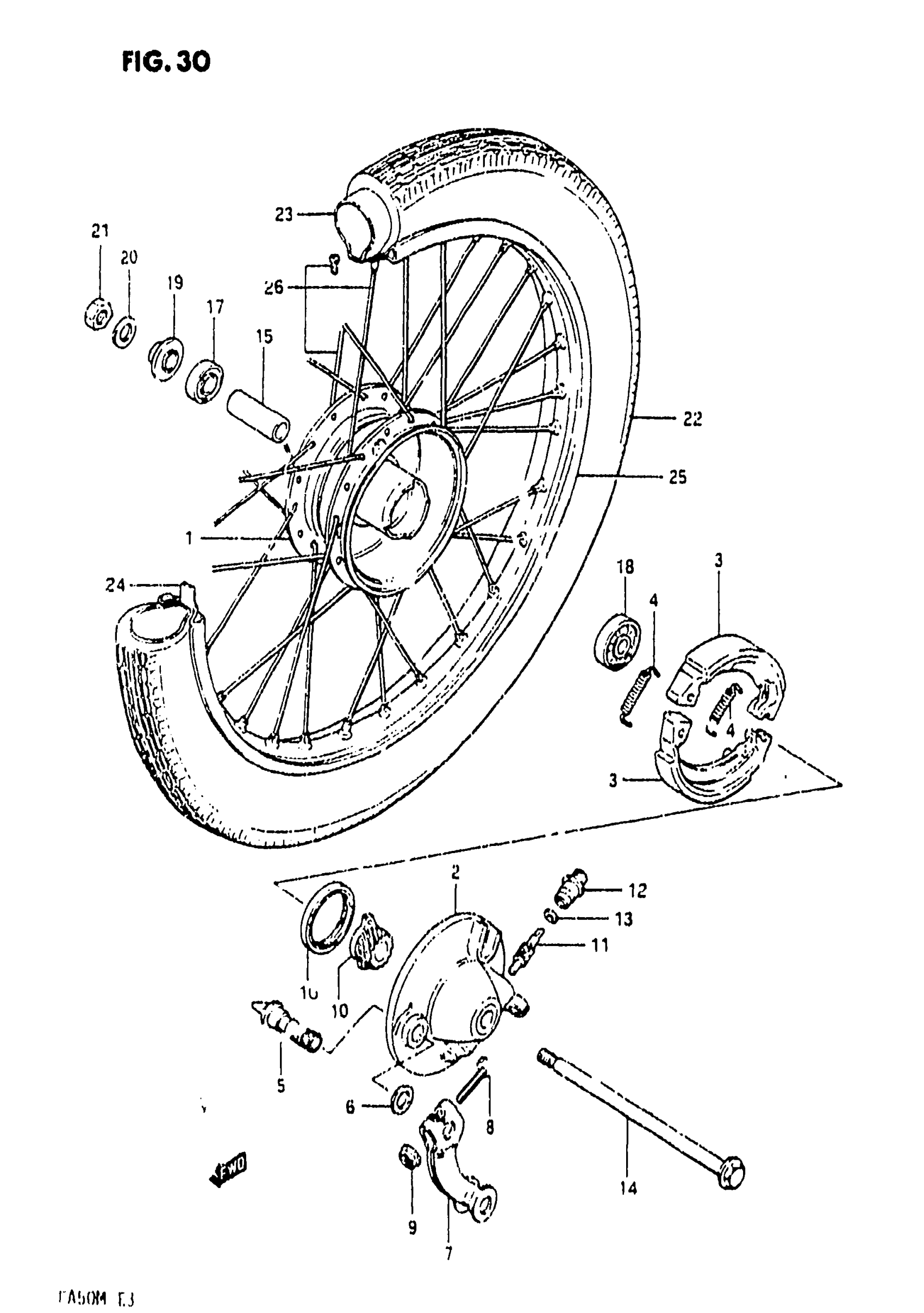

Suzuki FA50 (1991) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54110-02202.

54110-02203

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 54210-02301.

54210-02302

Unavailable

3

SHOE SET,BRAKE This part replaces 54410-02312.

54400-02820

Unavailable

4

SPRING

09443-06029

$2.44

5

CAM, BRAKE

54441-02301

$16.87

6

WASHER This part replaces 08322-11107.

08322-01107

$2.15

7

LEVER, CAM

54451-02301

Unavailable

8

BOLT | MODEL Z/D

09100-05007

Unavailable

8

BOLT | MODEL E/F/G/H/J/K/L This part replaces 09100-05009.

01500-0525A

$1.77

9

NUT This part replaces 08316-16058.

08316-1005A

$2.19

10

GEAR, SPEEDOMETER (NT:16)

54611-02201

Unavailable

11

PINION,SPEEDOME This part replaces 54621-02201.

54621-02400

Unavailable

12

BUSHING

54632-02201

$11.83

13

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

14

AXLE, FRONT

54711-02310

Unavailable

15

SPACER

54730-02400

Unavailable

16

OIL SEAL

09285-34002

$4.86

17

BEARING This part replaces 09262-10011.

08123-6200B

$9.71

18

BEARING LH | 1

08113-62000

$13.63

19

SPACER RH

54740-02300

Unavailable

20

WASHER | MODEL Z/D/E/F This part replaces 08322-11107.

08322-01107

$2.15

21

NUT | MODEL Z/D/E/F

09159-10027

$3.10

21

NUT | MODEL G/H/J/K/L/M

08319-31107

$2.73

22

TIRE (2.25-14) IRC

55100-02210

$45.28

23

TUBE,INNER This part replaces 55200-02210.

55200-46411

$17.96

24

PROTECTOR, WHEEL INNER TUBE This part replaces 55261-02200.

55261-09D00

$4.70

25

HIM, WHEEL (1.20x14)

55311-02201

Unavailable

26

SPOKE SET, FRONT

55320-02202

Unavailable
