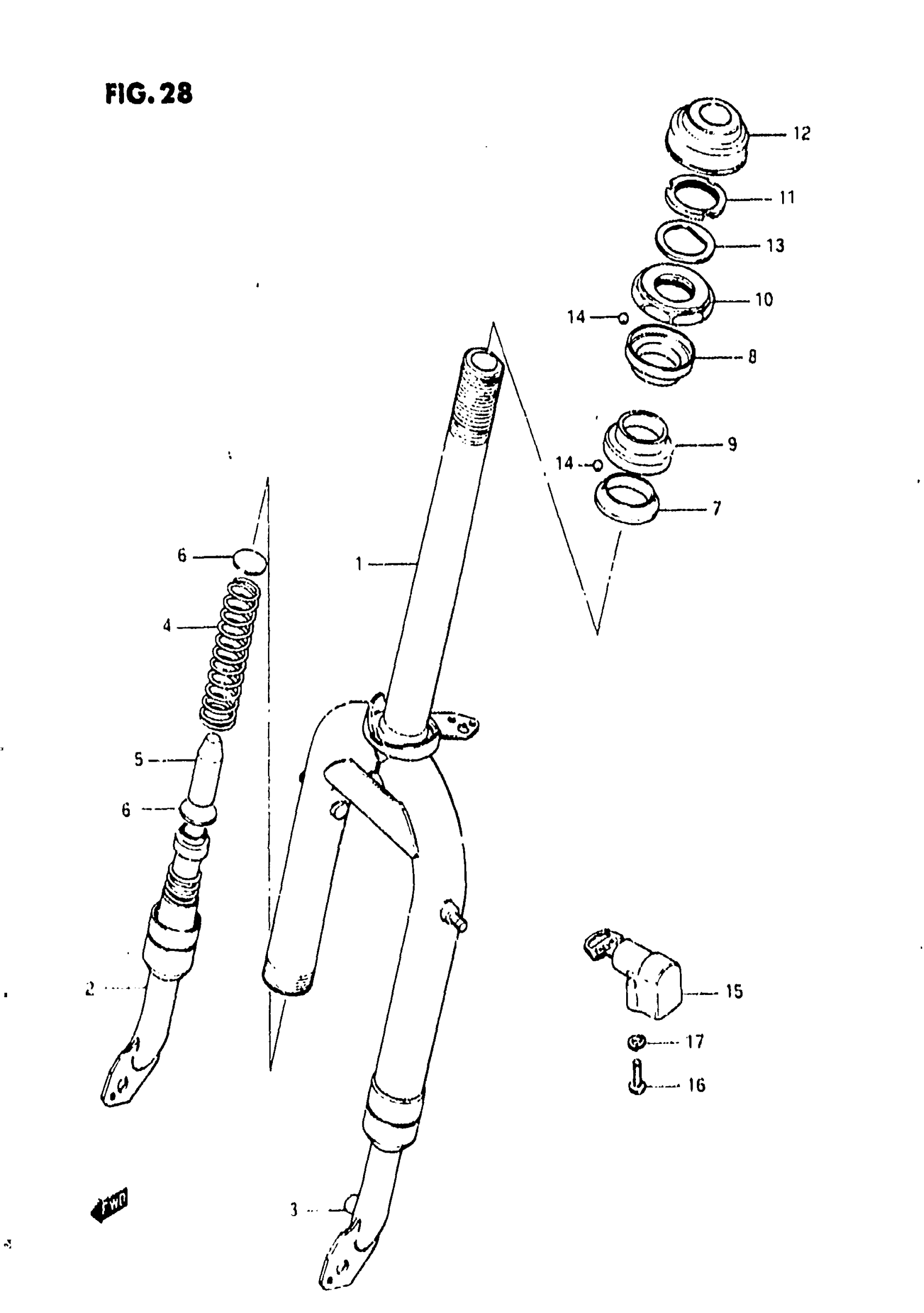

Suzuki FA50 (1991) FRONT FORK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z/D This part replaces 51100-02850-163.

51100-02853-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 51100-02850-14C.

51100-02853-14C

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 51100-02850-08Y.

51100-02853-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL E/F/G/J This part replaces 51100-02851-14C.

51100-02853-14C

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL E/F/G This part replaces 51100-02851-08Y.

51100-02853-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL F/G This part replaces 51100-02851-163.

51100-02853-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 51100-02851-019.

51100-02853-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 51100-02851-10J.

51100-02853-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 51100-02851-33L.

51100-02853-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 51100-02851-19F.

51100-02853-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M This part replaces 51100-02852-019.

51100-02853-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M This part replaces 51100-02852-14C.

51100-02853-14C

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K/L/M; Includes Item(s) 2 - 7 This part replaces 51100-02852-19F.

51100-02853-019

Unavailable

2

TUBE, LOWER RH

51110-02306

Unavailable

3

TUBE, LOWER LH | MODEL Z/D This part replaces 51120-02306.

51120-02307

Unavailable

3

TUBE, LOWER LH | MODEL E/F/G/H/J/K/L/M

51120-02307

Unavailable

4

SPRING

51171-02202

Unavailable

5

STOPPER, RUBBER

51292-02201

Unavailable

6

WASHER

09242-25001

Unavailable

7

RACE,STEERING O This part replaces 51622-29C00.

51622-29C20

$11.30

8

RACE,STEERING I This part replaces 51611-02200.

51611-16A00

$11.38

9

RACE,STTER INNE This part replaces 51612-02200.

51612-29C00

$12.53

10

RACE,STEERING O This part replaces 51621-02200.

51621-16A01

$13.05

11

NUT, STEM

99800-10420

Unavailable

12

CAP

51325-02200

Unavailable

13

WASHER

09169-26001

Unavailable

14

STEEL BALL

06111-05004

$1.49

15

LOCK ASSY, STEERING This part replaces 51900-253A1.

51910-25311

$40.33

16

SCREW This part replaces 02112-05128.

02112-05127

$1.97

17

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84
